Shot blasting machines with a turntable

The DPS-series turntable shot blasting machines are a universal solution for plants where high throughput is not critical but the parts are diverse in shape and size — from small castings to large welded assemblies.

The rotating table ensures that every surface of the workpiece is exposed to the blast stream, eliminating shadowed areas. When residual shadow zones remain after the automatic cycle, a worker can enter the blast chamber for manual air-blast touch-up.

Required configuration — table size, number and power of blast wheels, filtration type — is determined by the part characteristics and customer production conditions. All machines can be integrated into existing shop floor logistics, including overhead crane loading.

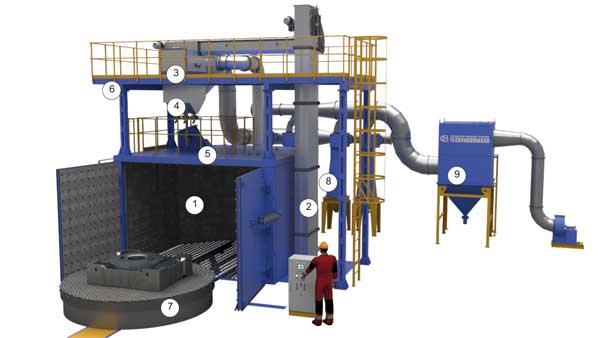

1. Working chamber
2. Elevator
3. Separator
4. Shot separator
5. Shotblasters (3 pcs.)

6. Metal structure
7. Carriage with a turntable
8. Cyclones
9. Filtering plant

Application of shot blasting machines with a turntable

Shot blasting machine with a turntable is a multipurpose solution for productions where high efficiency is not needed. Blasting on the turntable allows cleaning odd-shape large and small items. If post-treatment of hard-access sectors is necessary, then a manual shot blasting by an operator (inside the chamber) is possible.

Operation principle

Processed items are loaded onto a carriage turntable manually or with a shop crane The cart with items is rolled into the chamber, the gate is closed, exhaust ventilation and separation device mechanisms are switched on. The turntable starts rotating. Shot blasting devices drives are switched on and the parts are cleaned with a shot.
