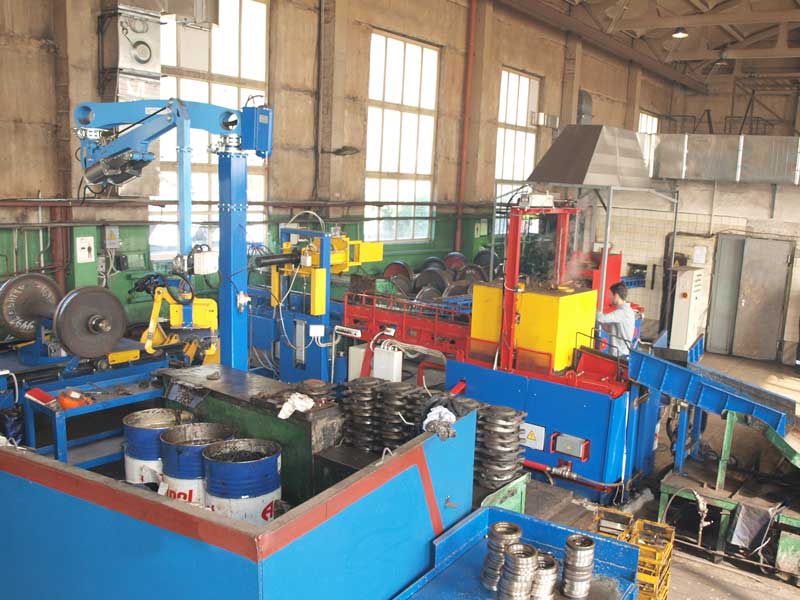

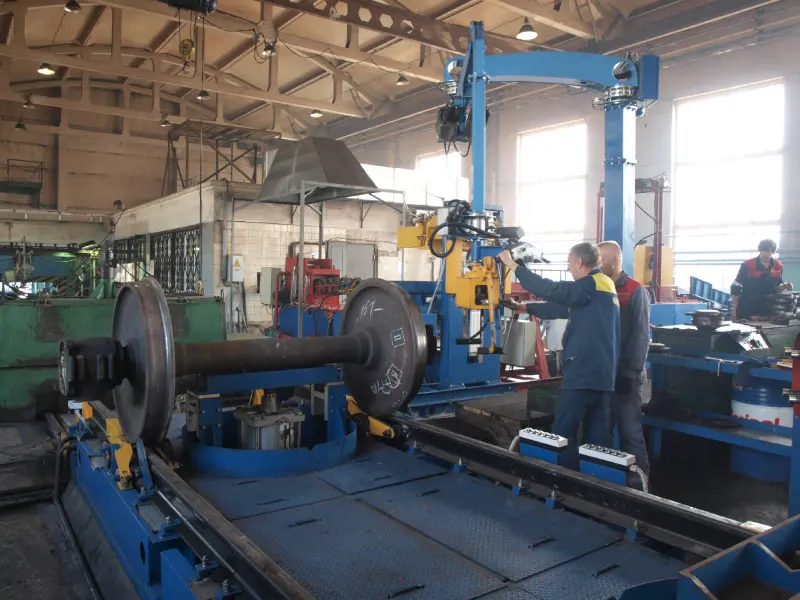

The system for dismantling and washing axle boxes and bearings is intended for use at railway car repair factories (car depots and car wheel workshops).
The system performs the following manufacturing operations:
  •  lifting and moving the wheelset along the trestle;
  •  rotation of wheelsets at manufacturing positions;
  •  using a dismantling stand to unscrew all the bolts of the axle-box unit and M110 nut;
  •  removal of both axle-boxes from the axle of the wheel set and their transportation by means of a manipulator to the position of dismantling the bearings of the automated section for pressing-out and washing bearings and axle box housings;
  •  pressing-out of bearings from the axle box;
  •  washing of axle-box housings;
  •  washing of bearings.

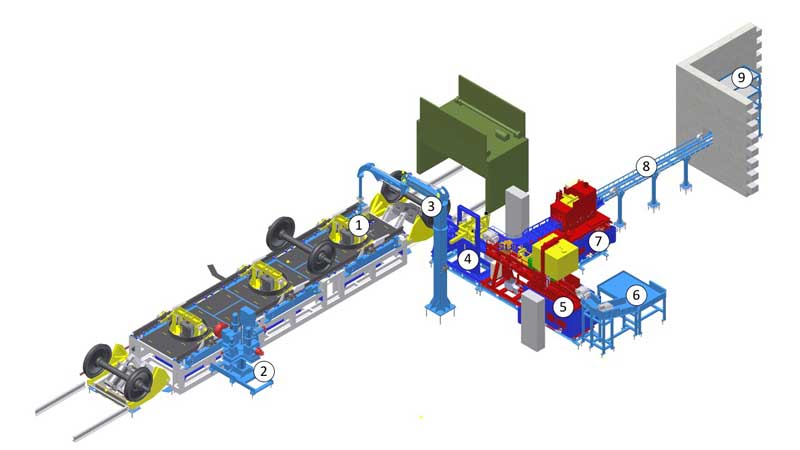

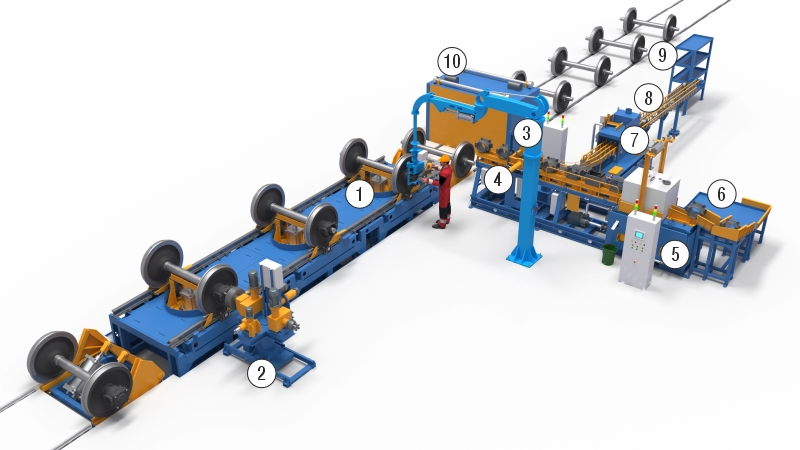

1. Trestle for dismantling axle boxes

6. Rack for axle box housings

2. Machine for dismantling freight cars axle boxes

7. Bearing washing machine

3. Device for removing axle boxes

8. Trough

4. Bearing pressing-out machine

9. Bearing rack

5. Machine for washing and drying axle boxes

6. Rack for axle box housings



Technical specifications

1.

Performance, wheelset / hour

3

2.

Maximum wheelset weight, kg

1600

3.

Air pressure in the pneumatic system, MPa

0,6...0,8

4.

Trestle for dismantling axle boxes

Type of all drives

pneumatic

Transfer of wheel sets from position to position

rolling

5.

Machine for dismantling axle boxes of freight cars

Four-spindle electric wrench

- number of keys, pcs.

4

- thread diameter of the bolt to be unscrewed

М20

Single-spindle electric wrench

- thread diameter of the unscrewed nut

М110

Four-spindle electric wrench

- number of keys, pcs.

4

- thread diameter of the bolt to be unscrewed

М20

Vertical stroke of the lift, mm

160

Installed power, kW

11,5

6.

Tool for removing axle boxes

Loading capacity of the manipulator, kg

250

Radius of action, mm

3000

7.

Bearing pressing-out machine

Conveyor drive

pneumatic

Installed power, kW

2,2

8.

Automated high pressure bearing washing machine

Number of bearings processed simultaneously, pcs.

2

Time for one bearing pair washing and drying, min

2…4

Installed power, kW

38,5

9.

Washing and drying machine for axle boxes

Conveyor drive

pneumatic

Number of axle box housings processed simultaneously, pcs.

1

Time of washing and drying of the axle box housing, min

2…4

Installed power, kW

38,5
