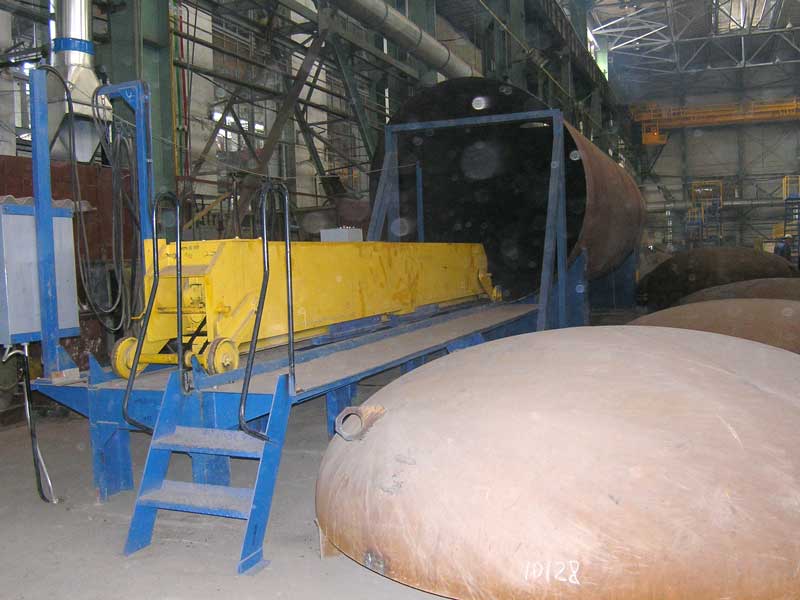

Plant for making drains in the bottom of the vessel shell

Plant for making drains in the bottom of the vessel shell

Plant for making drains in the bottom of the vessel shell

Specifications:



Dimensions of drains, mm


Length, mm

6000

Width, mm

230

Depth, mm

30

Metal thickness, mm

11

Shell Ø, mm

3 200

Press (power device and hydrodrive)


Typ

Hydraulic

Force, tonf

200

Oil pressure, MPa

25

Piston-rod stroke, mm

550

Pump drive power, kW

33

Punch


Punch moving device into working area

self-propelled car

Dimensions, mm

17000х3200х5930

Height above the floor, mm

3306

Weight, kg

23450
