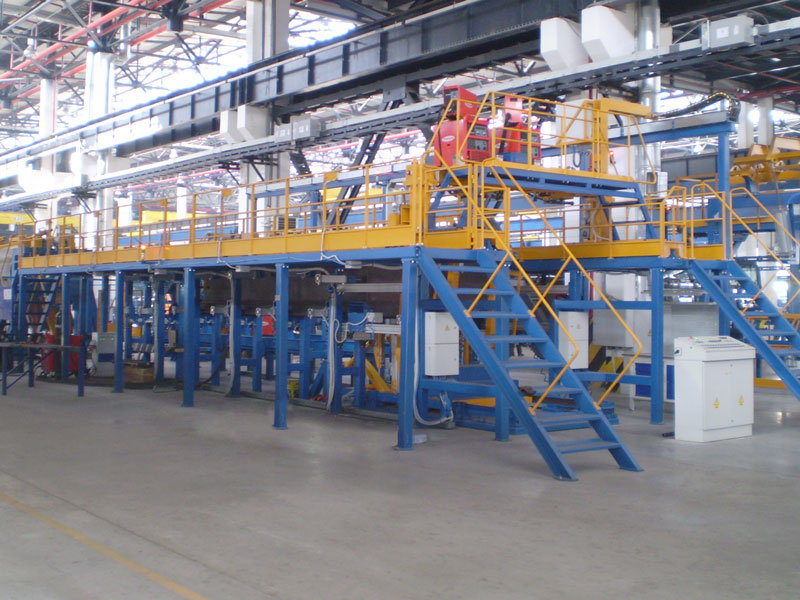

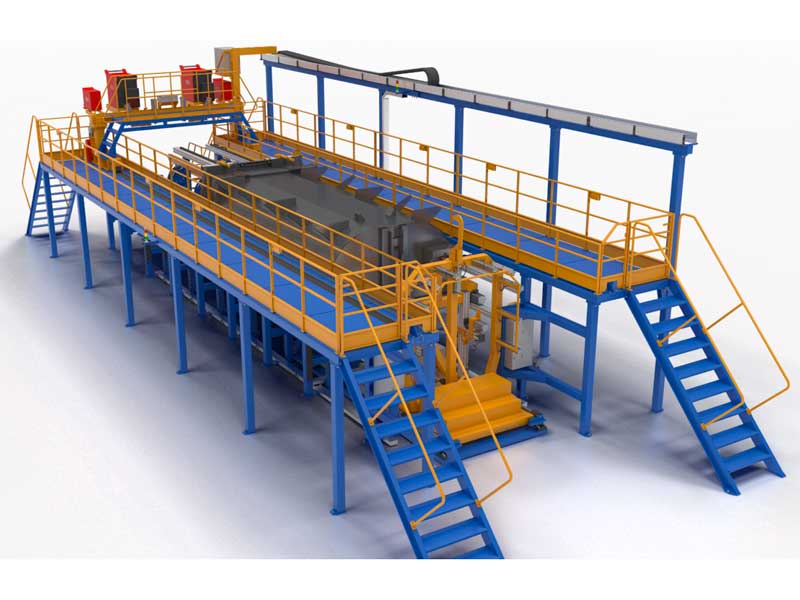

The universal adjustable stand is designed for assembling dump truck bodies of various types and configurations.
The equipment ensures precise assembly of body components, reliable fixation of parts, and high-performance, repeatable welding operations.
Key Advantages
- Versatility — reconfiguration for different body sizes and types
- High assembly accuracy due to positioning and clamping systems
- Increased productivity through process mechanization
- Reliable fixation of parts using pneumatic clamps
- Operator convenience ensured by well-thought-out ergonomics
- Compliance with industrial safety requirements

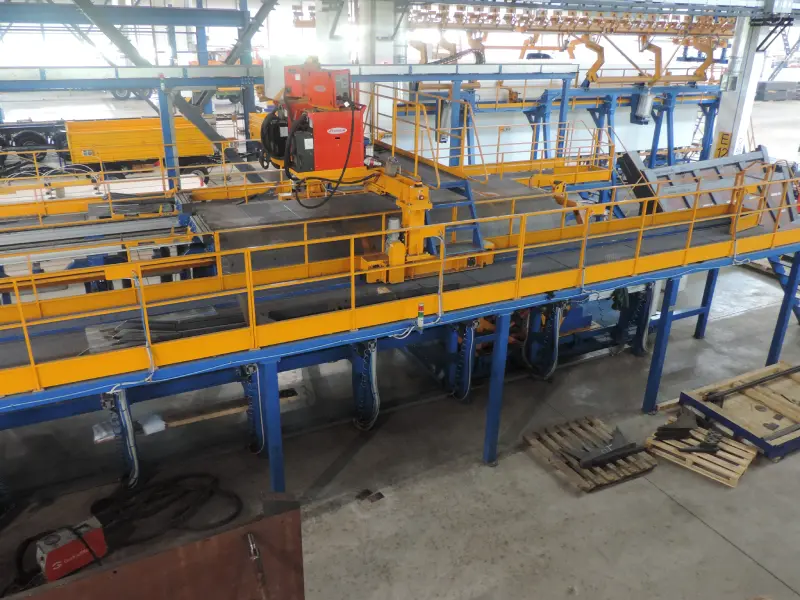

Operating Principle
The body assembly process includes the following stages:
- Installation and fixation of side walls
- Mounting of the end wall using a special trolley
- Alignment and positioning of components
- Clamping and tack welding

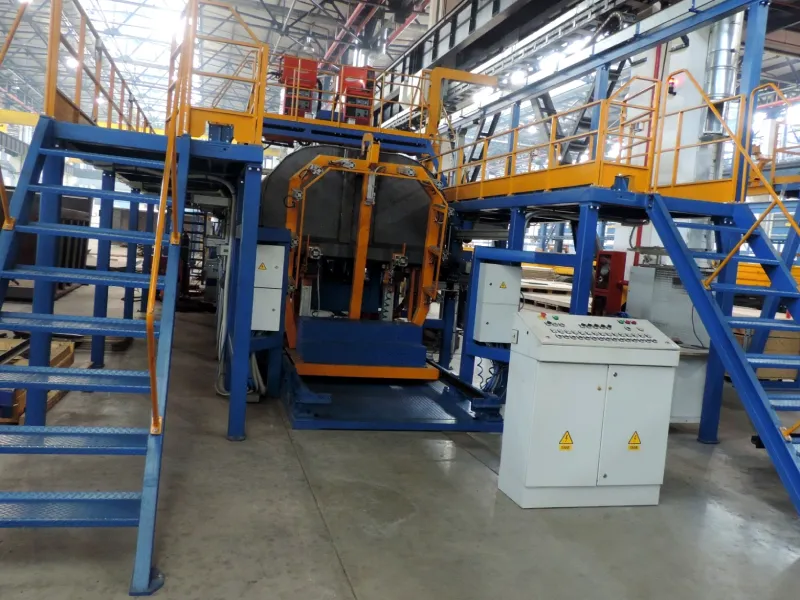

- Laying and fixation of the bottom using a clamping portal
- Installation of rear beams
- Completion of assembly and removal of the product from the stand
All operations are performed using pneumatic and mechanized systems, reducing labor intensity and improving assembly quality.
Technical Specifications:
| 1. | Spatial position of product assembly | inverted |
| 2. | Product length (bottom) (min/max), mm | 5000 / 8000 |
| 3. | Min. internal width, mm | 2155 |
| 4. | Max. external width, mm | 2715 |
| 5. | Product height (side wall) (min / max), mm | 1120 / 2070 |
| 6. | Front wall inclination angle (min / max), deg | 0/15 |
| 7. | Front wall inclination adjustment | stepless |
| 8. | Type of clamps and pushers | pneumatic |
| 9. | Operating pressure in pneumatic system, MPa | 0.6…0.7 |
Is it possible to order equipment with non-standard parameters?
Yes, we manufacture custom-designed equipment to suit non-standard dimensions, weld seam characteristics, operating conditions, and the specific needs of your production.
Is there a warranty and post-warranty service?
Yes, we provide a warranty on all equipment for up to 24 months, as well as service and post-warranty maintenance, including the supply of spare parts.
Is turnkey installation and commissioning possible?
Yes, we provide installation, commissioning, personnel training, and service support services.
