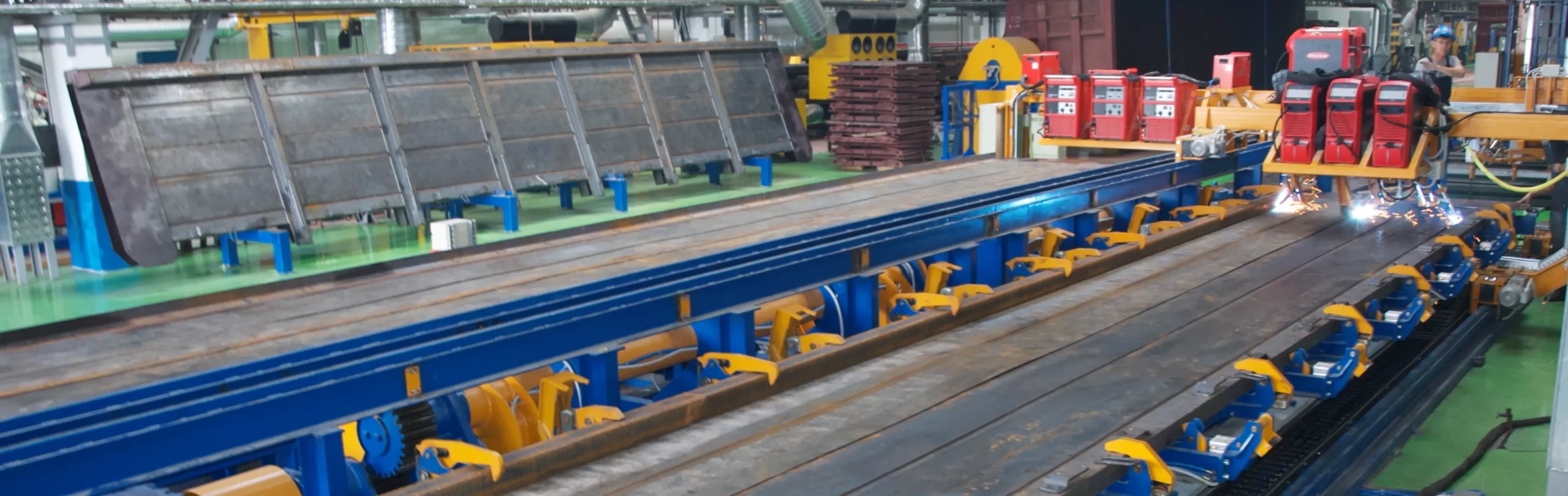

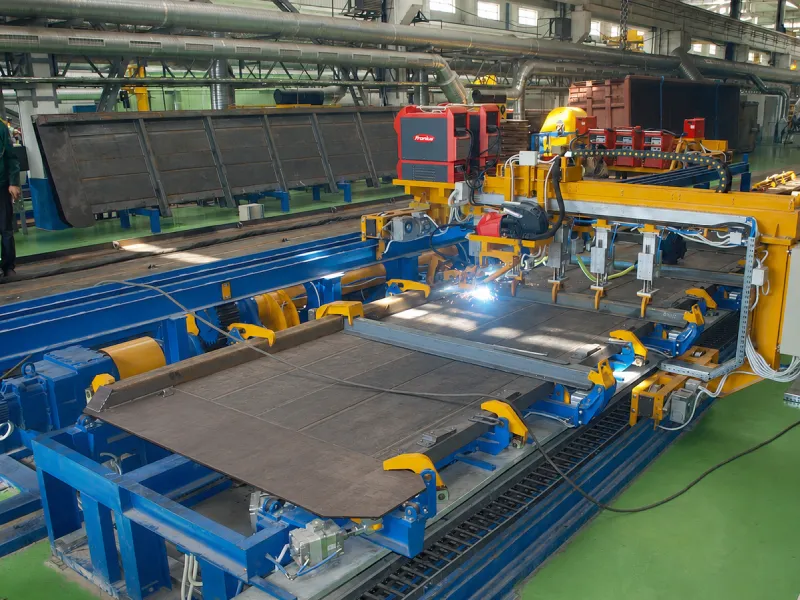

The side wall manufacturing stand is a комплекс automated system designed for assembly and automatic arc welding of semi-wagon side walls in both normal and reverse positions. The system is intended for serial production of semi-wagon side walls and provides a complete processing cycle without repositioning the workpiece to additional stands.
Operating Principle

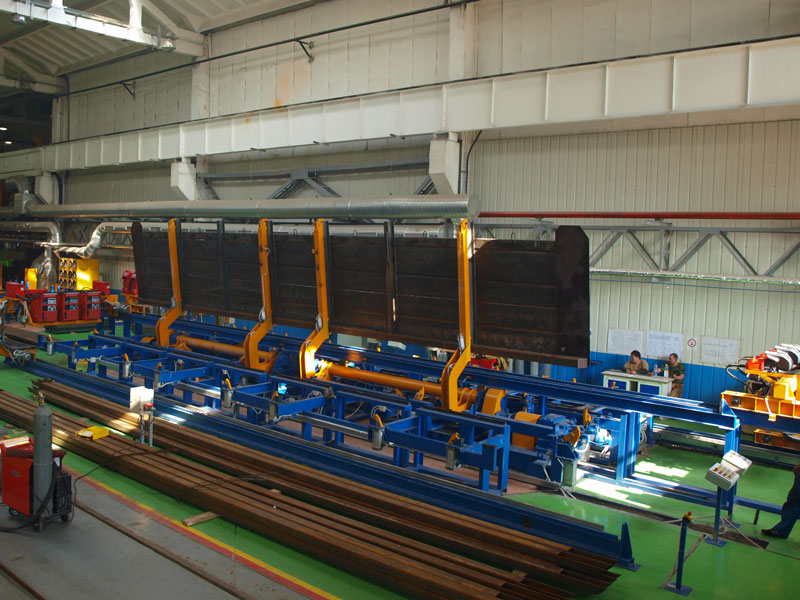

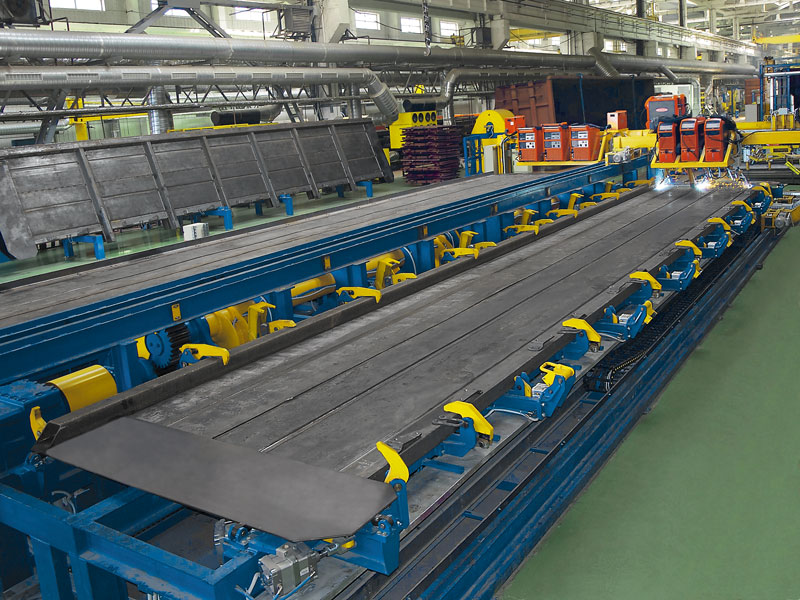

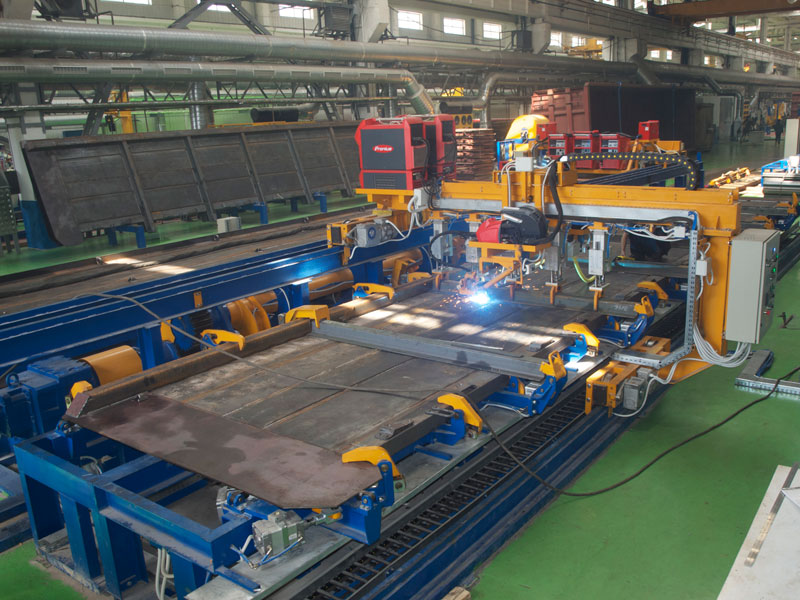

The side wall components are placed on the assembly stand, aligned using stops, and fixed with pneumatic clamps. Welding gantries move along rail guides and simultaneously weld three longitudinal seams. A frequency converter ensures smooth adjustment of the gantry travel speed up to 460 m/h in traverse mode. Mechanical seam-tracking devices with spring-loaded rollers guide the torch precisely along the weld seam without operator intervention. After welding in the normal position, the tilting device rotates the product and places it onto the support stand for reverse-side welding.
Technical Specifications
| 1. | Manufactured products | semi-wagon side walls |
| 2. | Assembly and automatic welding stand for the wall in the normal position | |
| 3. | Part fixing principle | pneumatic |
| 4. | Gantry for welding longitudinal seams in the reverse position | |
| Welding speed, m/h | 50 … 100 | |
| Traverse speed, m/h | 460 | |
| Speed control principle | frequency-controlled | |
| Seam tracking principle | mechanical | |
| Number of simultaneously welded seams, pcs | 3 | |
| Welding equipment | Fronius (Austria) | |
| 5. | Gantry for welding posts in the normal position | |
| Welding speed, m/h | 50 … 100 | |
| Traverse speed, m/h | 460 | |
| Speed control principle | frequency-controlled | |
| Seam tracking principle | mechanical | |
| Number of simultaneously welded seams, pcs | 2 | |
| Welding equipment | Fronius (Austria) | |
| 6. | Lever-type tilting device: | |
| Tilting device drive | electromechanical | |
| Rotation speed, rpm | 1 | |
| Rotation angle, deg | 180 | |
| 7. | Installed power excluding welding equipment, kW | 15 |
| 8. | Overall line dimensions, mm | 19202х7547х2607 |
Options
Safety and Ergonomics
- Protective screens against welding radiation around the perimeter of the line
- Exhaust ventilation with ducts directly above the welding zones (reduction of aerosol concentration)
Service and Spare Parts
- Extended spare parts kit — a set of wear parts (tracking rollers, contact tips, torch nozzles) for 1–2 years of operation
- Service contract with scheduled maintenance (quarterly or annual)
Customization for Customer Production
- Painting in the customer’s corporate RAL colors
