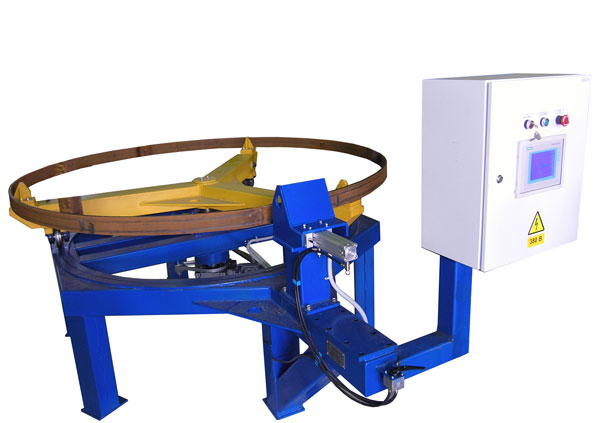

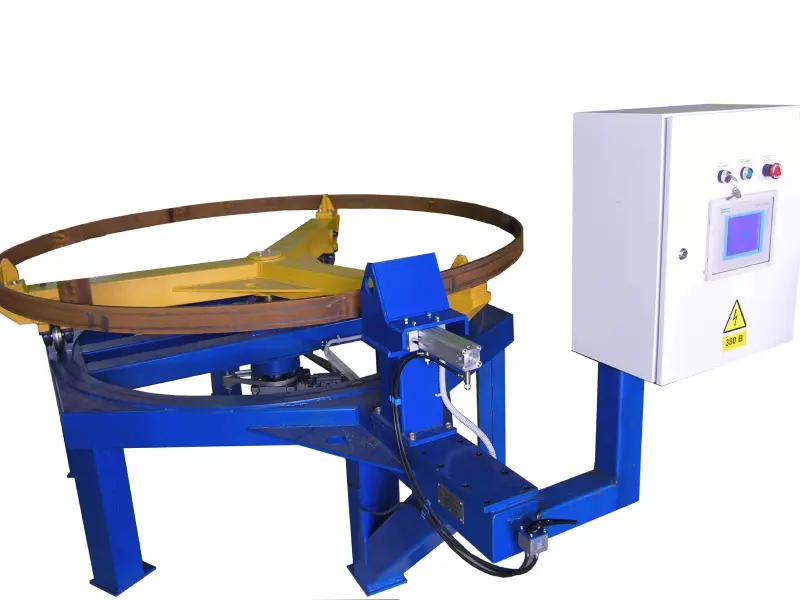

Stand of the tank head measurement and selection
The stand of the tank head measurement and selection provides a set of technological operations connected with tank heads selection by measurement of their circle perimeter on the outer diameter.
The head is laid on the platform by stops, a measurement device is set in operating position, then the command for rotation of the platform with the workpiece is given. The encoder turning on and turning off is carried out by means of a limit switch, and the results of measurement are shown on the display panel.
Operation principle
The head is laid on the platform by stops, a measurement device is set in operating position, then the command for rotation of the platform with the workpiece is given. The encoder turning on and turning off is carried out by means of a limit switch, and the results of measurement are shown on the display panel.
Specifications:
|
1. |
Diameter of the items to be measured |
2400, 3000, 3200 |
|
2. |
Items weight, kg |
270 … 1500 |
|
3. |
Carrying capacity of the stand, kg |
2000 |
|
4. |
Platform rotations number, rpm |
2,1 |
|
5. |
Drive type |
electromechanical |
|
6. |
Drive power |
0,55 |
|
7. |
Torque, kg-force/m |
142 |
|
8. |
Measuring device type |
encoder DKV60- EIK02000 |
|
9. |
Measurement accuracy, mm/m |
0,125 |
