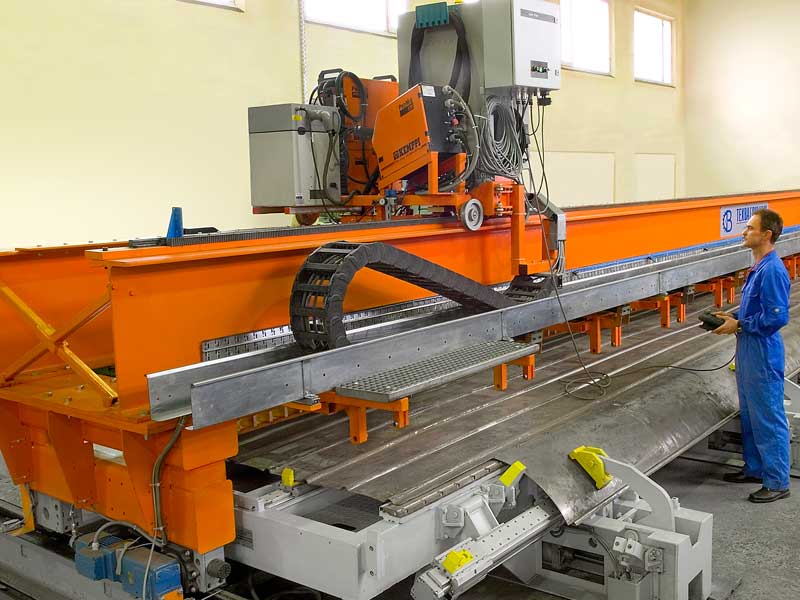

This plant was designed for protective gas welding on cooled copper backings of three longitudinal lap welds which join the roof sections of passenger car types 4170, 4179, 4440, 4186 using a laser system to control seams.
Principle of operation
By means of lift-and-carry facilities the section elements are placed on the stand where they are fixed. By means of a gantry the welding machine is placed to the beginning of the weld then the edges are clamped and the order is given to start the welding. After welding the automatic welding machine returns to its starting position, the clamps are released. The gantry moves to the next weld. After three welds are finished the gantry returns to its starting position. The finished workpiece is taken away from the stand and sent to the next workplace. The process is controlled by the operator on the monitor.

1

Capacity sections/year

2400

2

Work mode

2 shifts

3

Stand for assembly roof secions:

Type

Readjustable

Number of dimension-type pieces

8

Stand drives

Pneumatic

Manufacturer of pneumatic equipment

FESTO

Principal of stand readjustment

Automatic

Principal of stand control

Button, sensor control board

Backing type

Cooled copper backings

Coolant

Water

4

Cooling system

Self-contained system

Cooling unit

FK 4000

Manufacturer

Fronius

Capacity, l/min

3,5

Pressure (max), Mpa

0,42

Hydraulic drop (max), m

33

Coolant volume, l

5,5

Power consumption, Kw

2,3

5

Pressed air supply system

Self-contained system

6

Compressor

Ф500 | LT100

7

Capacity, m³/min

1,1

8

Pressure, Mpa

0,6

9

Power consumption, Kw

7,5

10

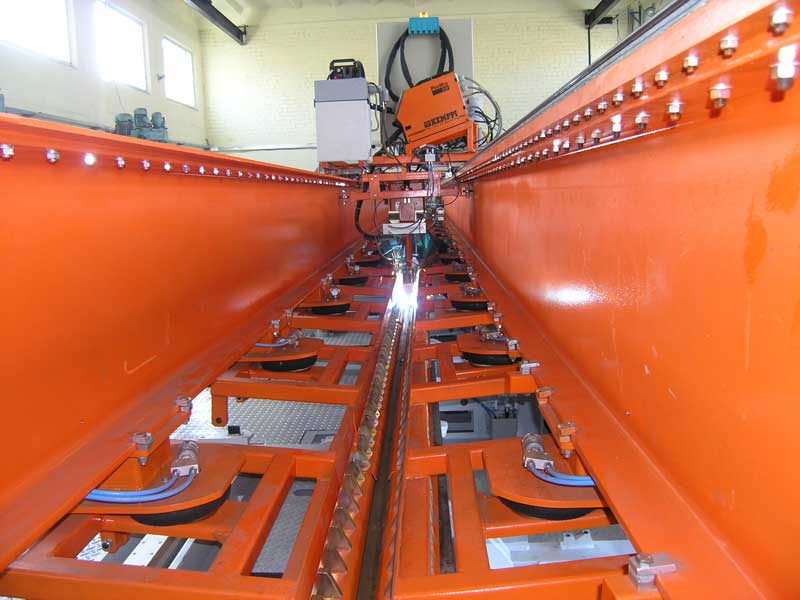

Welding gantry

Travel speed, m/min

12

Welding speed, m/h

48

Welding machine type

Kemppi PRO 3200W

Manufacturer

Kemppi
