Heating boilers robotic welding center

Heating boilers robotic welding center

Heating boilers robotic welding center Heating boilers robotic welding center

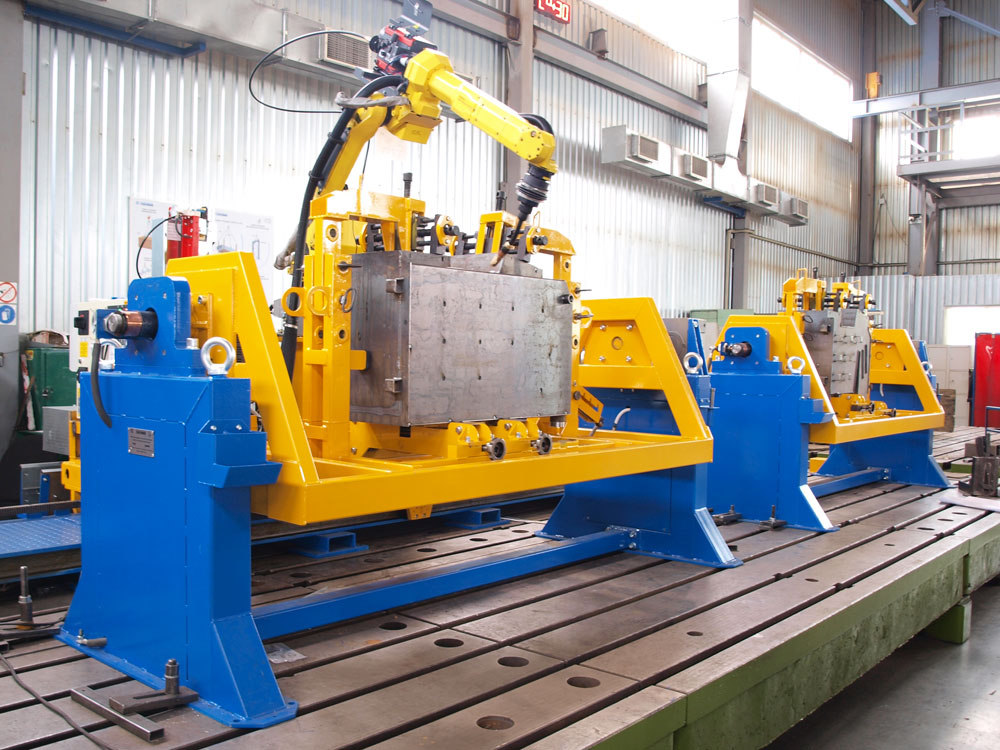

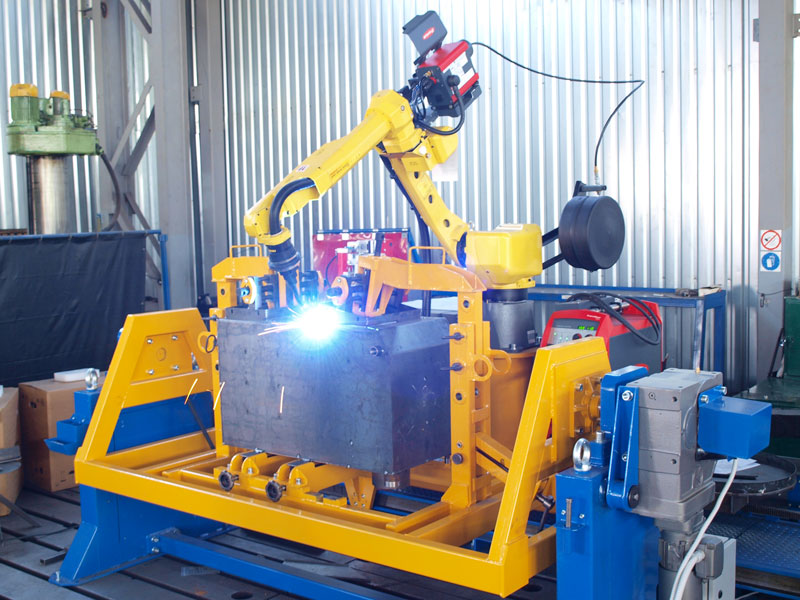

Robotic welding center is designed for welding of boiler furnaces and outer jackets, solid fuel and gas, domestic and semi-industrial boilers.


1. Fanuc AM-100iC 6L robot

4. Item fixation facility

2. Welding rotator

5. Guarding with antiglare curtains

3. Fronius TPS 5000 welding equipment

6. Control panel


Technical specification

1.

Overall dimensions of the center, mm

length

7735

width

3575

height

2245

2.

Center control

Sensor control panel

3.

Robot model

Fanuc AM-100iC 6L

4.

Robot load capacity, kg

6

5.

Welding power source

Fronius TPS 5000
