Paint booth for wagons

More photos

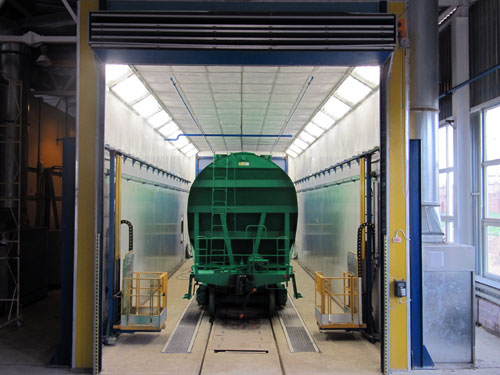

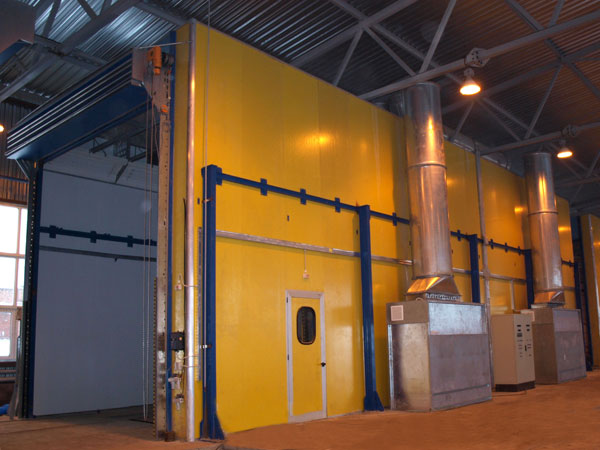

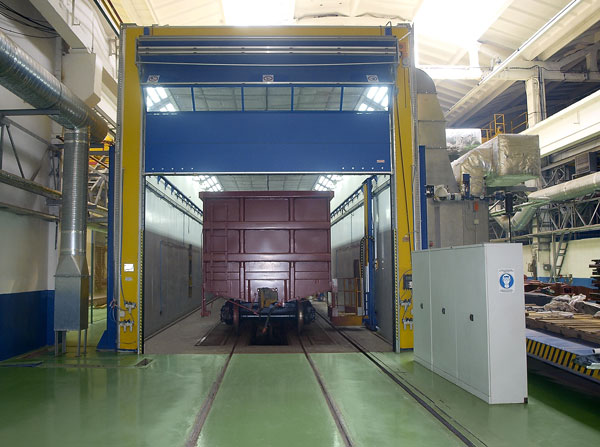

Paint and drying booth has been designed for painting the wagons.

Video about the work of the painting booth for wagons

Operation principle

Painting mode:

the fresh air ventilator takes air from atmosphere and direct to coarse filters, where it is cleaned from dust and then passes through the heat exchanger (heating about 20ºC). The heated air goes through the airpipes into roof space and then through roof fine media filters into the chamber. The fine media filters are cover the entire roof space eliminating air turbulence. The air stream flows evenly top-down at the wagon body. Paint particles are picked up by bottom filters which are situated under grates. Air heating is possible only with ventilation. The heating stops at once when the maintenance work or emergency situation take place. Primary filters are always installed in front of the fresh air ventilator. In this way, the blades and shaft bearings are protected against paint particles and dust in every mode of operation.

Drying mode:

the change from painting to drying does not take place immediately . The chamber is switched to expulsion removing dust and paint remains. When drying the suction fan switches off immediately, and the chamber works in a recirculation mode sucking in 10 - 15% fresh air from atmosphere to prevent the excess return air from solvents avoiding explosive mixture build-up. As a result of recirculation the drying mode is very efficient (electrical consumption is lower, fuel consumption is only 40% in comparison with painting mode). During recirculation the air passes through primary filters, floor and bottom filters. In such a way the air is kept clean from dust when the chamber works in drying mode. The use of high-powered fans keeps the air speed almost on the same level like the level during painting. The aggregate unit corresponds to the dimensions of the chamber. Gas burner capacity ensures the necessary modes of operation in the whole range of season temperatures.

Options

Specifications:

	Index	Type
	Index	ОСК-5	ОСК-8
1.	Dimensions of the chamber (inside)	18060х6125х5000	30000х7125х6000
2.	Heating source	Diesel or gas burner
3.	Painting Tº	20
4.	Drying Tº	60
5.	Air speed, m/c	0,25-0,3
6.	Air flow direction	top down
7.	Air cleaning method	dry filters
8.	Workplace illumination at a height of 1.5m, lux	1000
9.	Dimensions of the chamber (outside)	18200х9125х5655	30200х10125х6655

We design and manufacture the customized painting and drying booths taking into account the product range and production conditions of the customer.
