Transfer table was designed for railway vehicles transfer from one railway to another. Depending on requirements the transfer table can be of different types and with different load capacity:

· with pit / without pit

· with screen / without screen

· transmission type / blind type

· load capacity up to 160 tons

Video


For indoor use For outdoor use

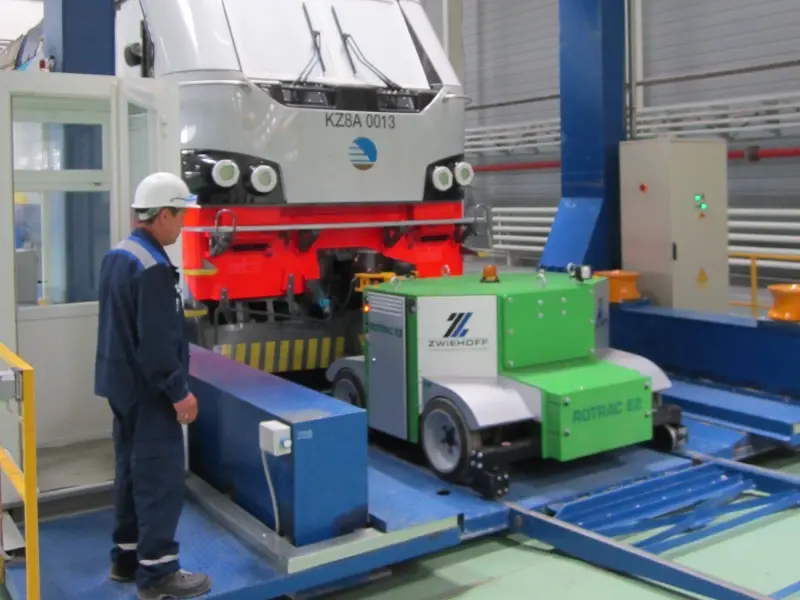

The electrical shunting winch and sheeve wheels system are installed on the transfer table for pulling and pushing the vehicle.

Winch engine rotation speed can be regulated by frequency inverter.

To prevent inadvertent motion of the vehicle on the transfer table, the outriggers are used.

The independent drive of running wheels is used in transfer table. Fluent accelleration/decelleration is reached by frequency-regulated AC drive.

Transfer table control system is based on Siemens controllers. They control the drive ant its blocking. For precise positioning and synchronization of traveling gears the travel sensors are used.

There are central control panel and utility control consoles. Operator on the control panel chooses the railway number, loading and unloading point of railway vehicle and the transfer table automatically moves to the set railway.

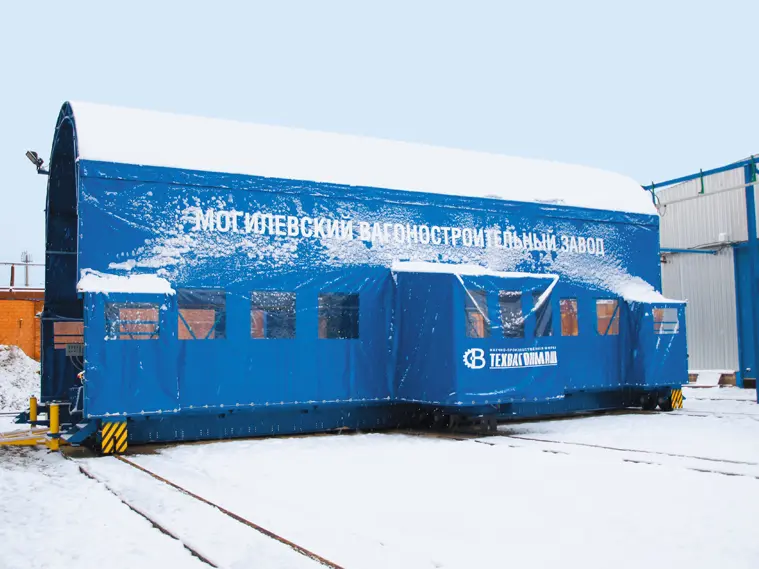

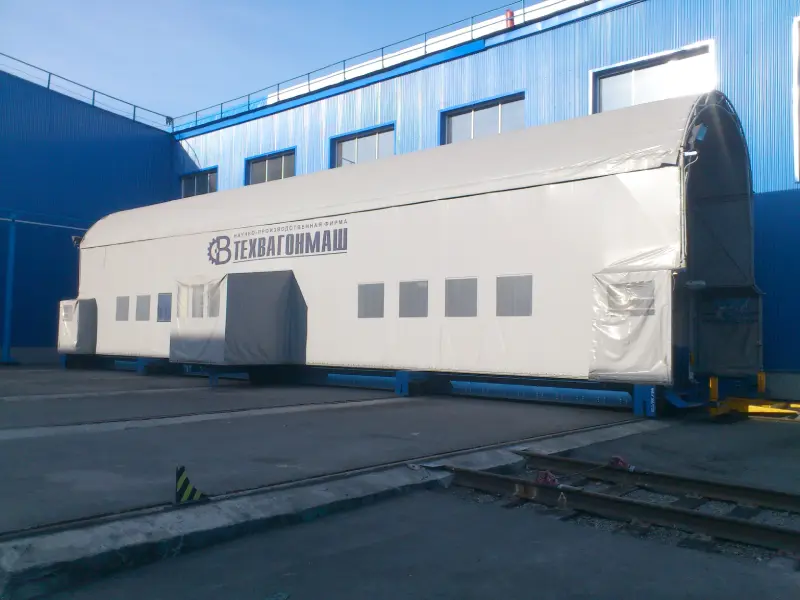

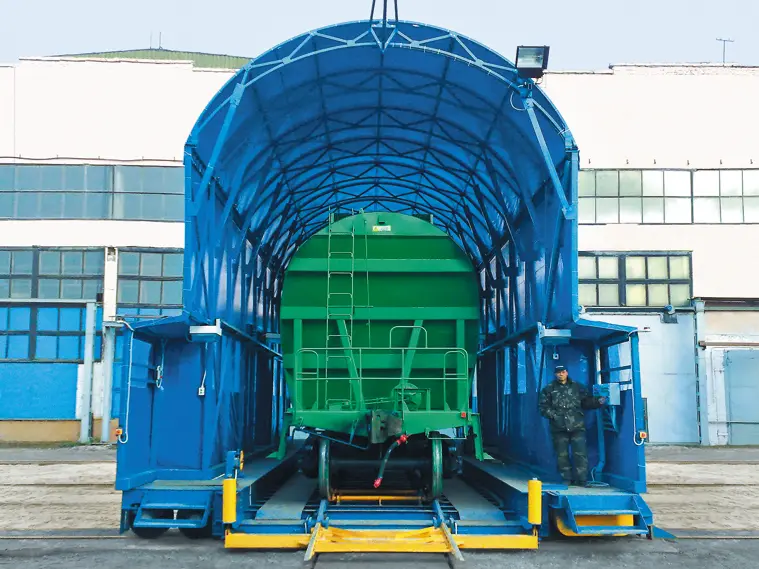

For work with transfer table during dark hours internal and external lighting is required. For protection from atmospheric fallout the transfer table can be supplied with tent.


Video






  • Traverser for freight wagons (load capacity 60 tons)
    Traverser for freight wagons (load capacity 60 tons)

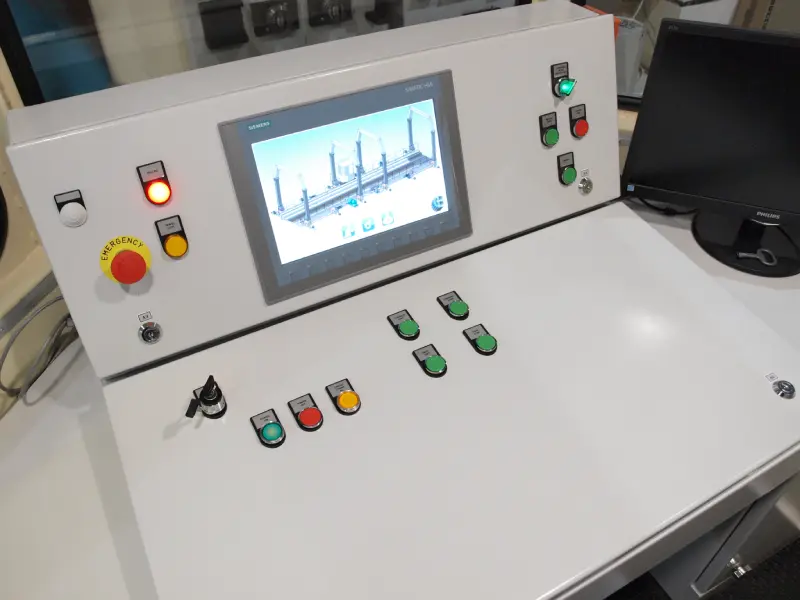

  • Control panel
    Control panel

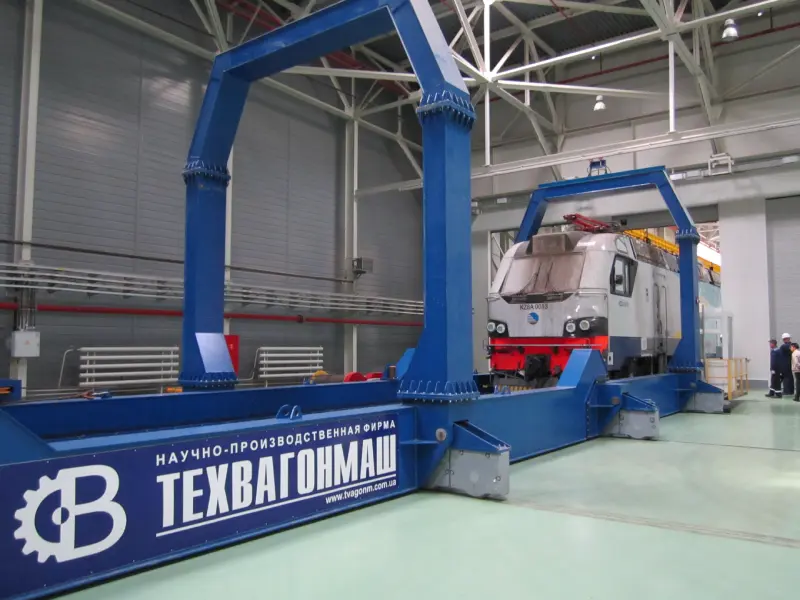

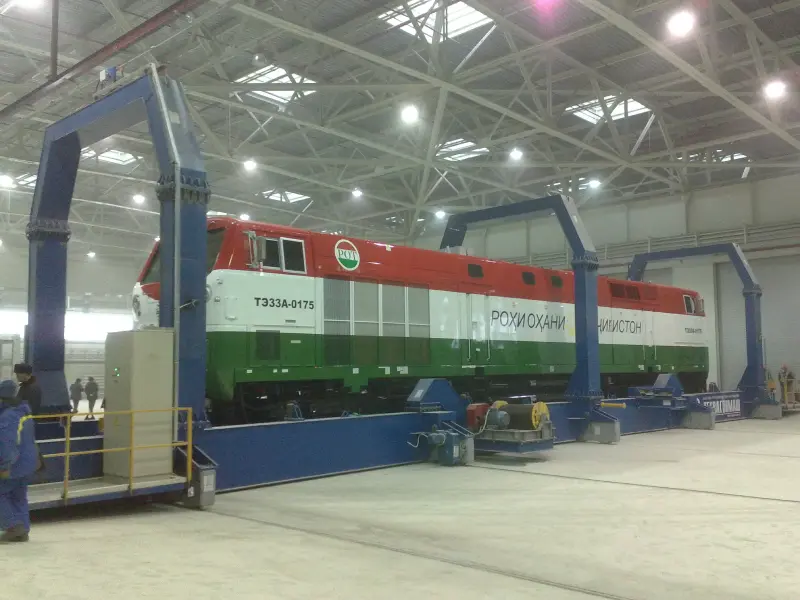

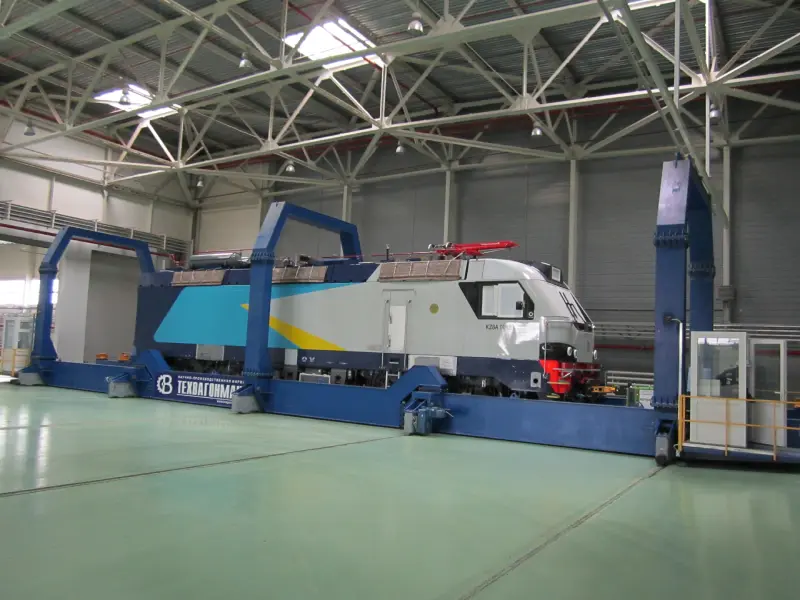

  • Traverser for locomotives (load capacity 150 tons)
    Traverser for locomotives (load capacity 150 tons)
  • Traverser for locomotives (load capacity 150 tons)
    Traverser for locomotives (load capacity 150 tons)

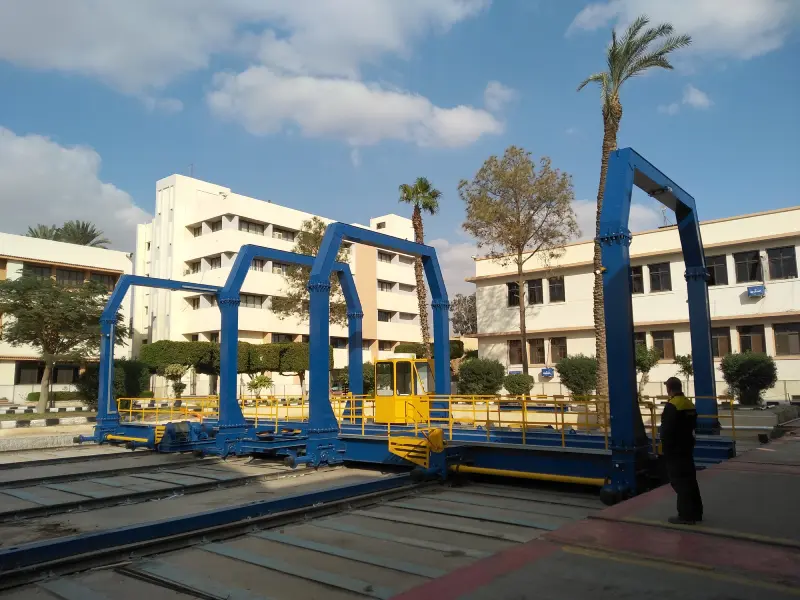

  • Traverser operation was shown to the Prime Minister of Egypt, Mr. Mostafa Madbuli
    Traverser operation was shown to the Prime Minister of Egypt, Mr. Mostafa Madbuli
  • Traverser for locomotives (load capacity 150 tons)
    Traverser for locomotives (load capacity 150 tons)

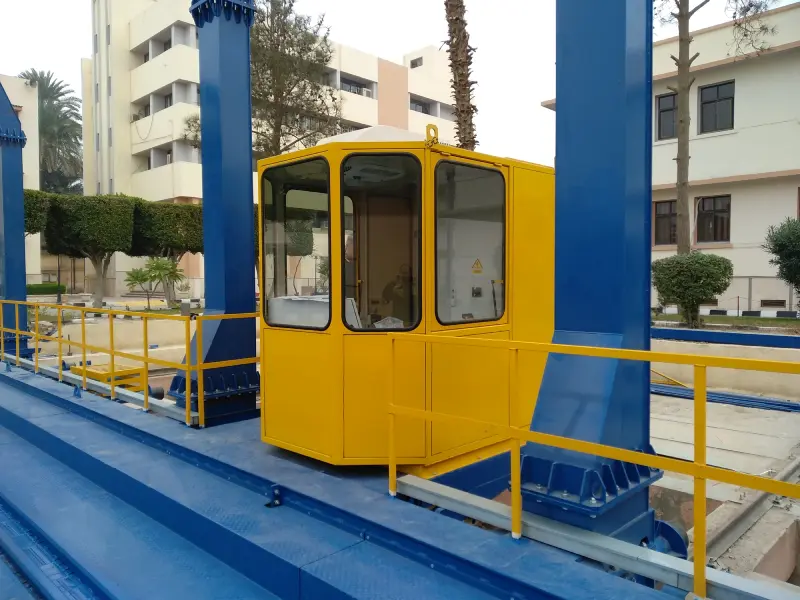

  • Traverser control cabin
    Traverser control cabin
  • Traverser for freight wagons (load capacity 60 tons)
    Traverser for freight wagons (load capacity 60 tons)
  • Traverser for freight wagons (load capacity 30 tons)
    Traverser for freight wagons (load capacity 30 tons)
  • Traversers for railway vehicles transfer (load capacity 150 tons)
    Traversers for railway vehicles transfer (load capacity 150 tons)
  • Traverser for freight wagons (load capacity 60 tons)
    Traverser for freight wagons (load capacity 60 tons)
