Universal jig for hopper wagon carbody assembly

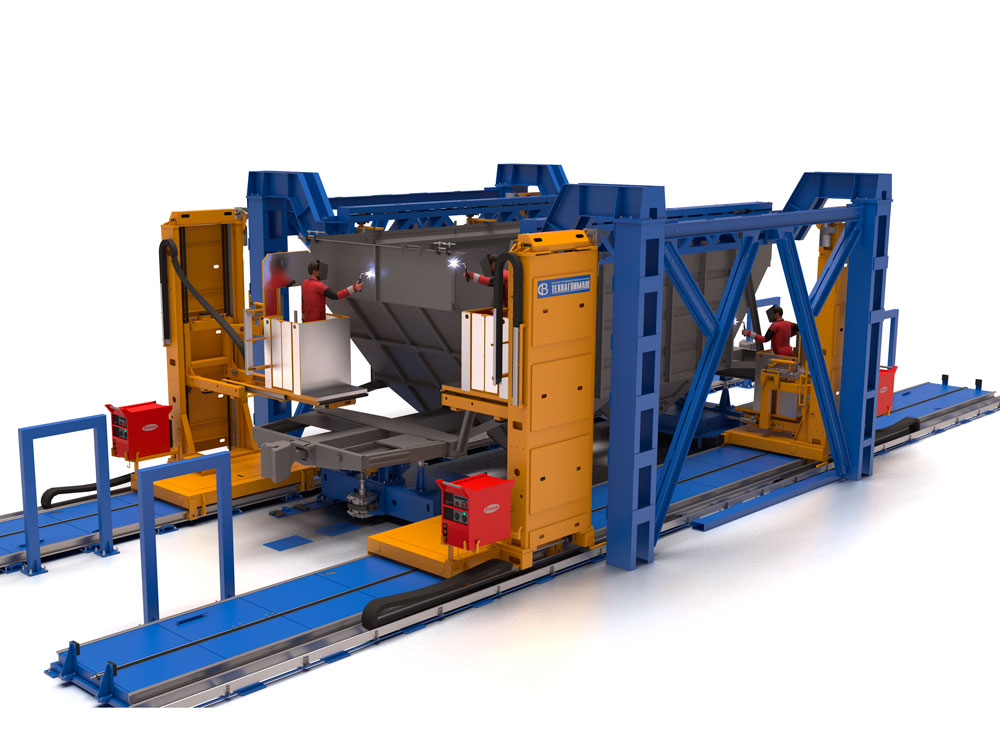

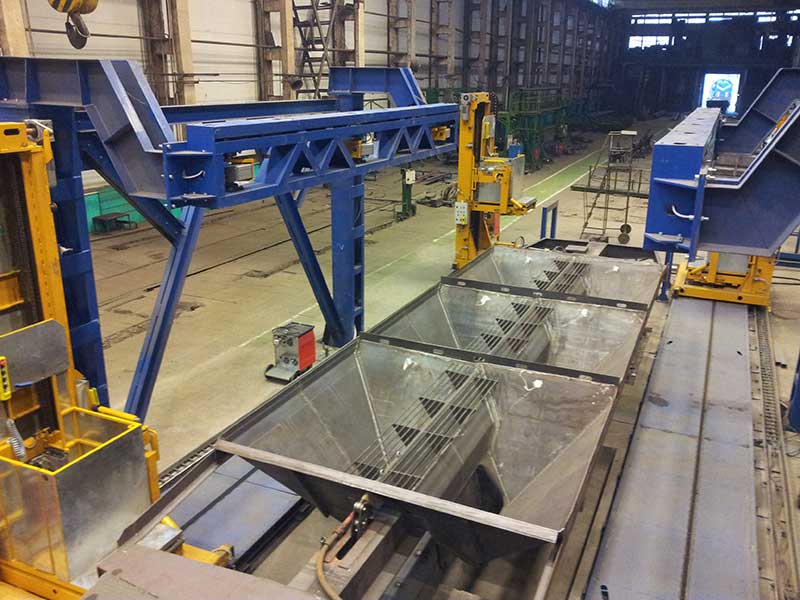

The jig is designed for the complete set of process operations involved in assembling hopper wagon carbodies without roof installation. The equipment ensures precise positioning of the underframe and side walls, synchronized operation of four lift-and-travel platforms, and convenient welder access to every carbody assembly at any height along the full length of the wagon.

Operating Principle

Carbody elements are loaded onto the jig in accordance with the process sequence, tack-welded to one another, and then all seams are fully welded. The completed assembly is removed from the jig and transferred to the next workstation.

Advantages

• Assembly of carbodies in three size variants on a single jig, by repositioning supports to fixed stations.
• Four independent lift-and-travel platforms enabling several welders to work simultaneously along the full length and height of the carbody.
• Accurate positioning of side and end walls using templates and pneumatic grippers with an alignment mechanism.
• Control from either the shop floor or the platform basket, with sensor- and limit-switch-based monitoring of home and working positions.
• Built-in safety features: interlocks, emergency platform catches, and light indication of jig readiness.
