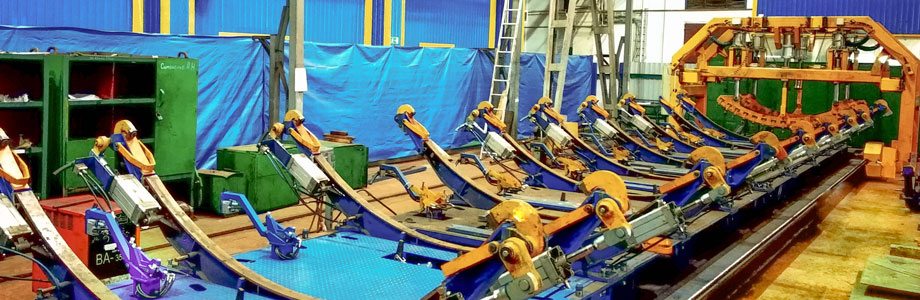

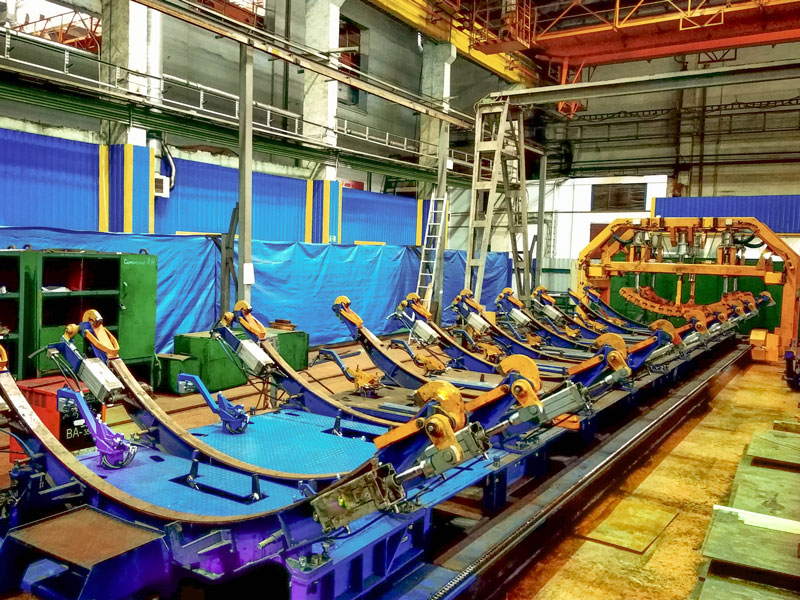

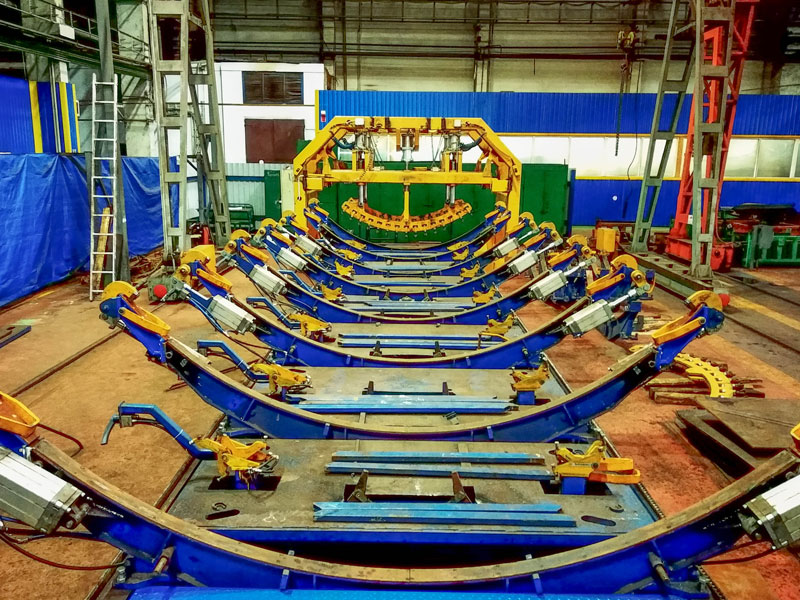

The stand is designed for assembly and welding of a roof framework of hopper cars for transportation of mineral fertilizers, cement and grain.
Specifications:
| 1. | Overal dimensions за the items to be assembled, mm | Mineral carrier | Cement carrier | Grain carrier |
| length | 10402 | 9064 | 11760 | |
| width | 2184 | 2645 | 2668 | |
| height | 444 | 225 | 510 | |
| radius | 1600 | 3996 | 1997 | |
| Weight, kg | 607 | 845 | 1007 | |
| 2. | Vertical clamps: | |||
| Type | pneumatic | |||
| Number, pcs. | 16 | |||
| Clamping force, kg/force | 300 | |||
| 3. | Centralizer: | |||
| Type | pneumatic | |||
| Centering force kg/force | 200 | |||
| 4. | Clamping fixture: | |||
| Travel drive | electromechanical | |||
| Power, kW | 1,1 | |||
| Drives number, pcs | 2 | |||
| Travel speed, m/min | 25 | |||
| Item clamping drive | pneumatic | |||
| Clamps number, pcs | 2 | |||
| Cylinders number, pcs. | 4 | |||
| Clamps rotation mechanism | ||||
| Rotation drive | pneumatic | |||
| Clamps rotation angle, degrees | 90 | |||
| 5. | Mains air pressure, MPa | 0,5 … 0,6 | ||
| 6. | Overall dimensions of the stand, mm | 15780х3930х2520 | ||
| 7. | Weight, kg | 15050 | ||
