Automated rack-type storage systems

Automated rack-type storage systems

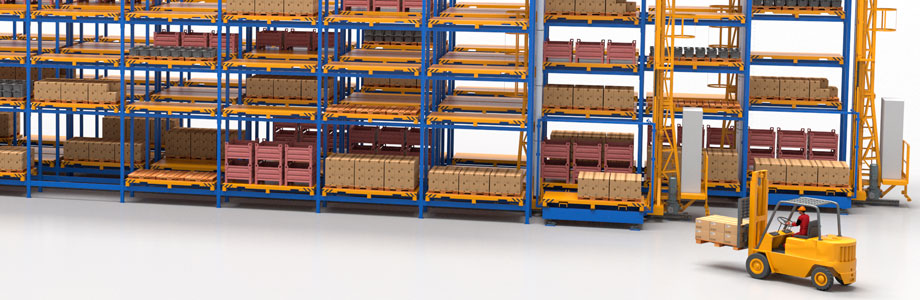

Automated rack type storage is designed for storing of automobile production components on europallets or in other way on cassettes with their following placing into cells of the storage system. Maximum allowable dimensions of the stored components are 2500х1200х1700 mm.

The storage works in automatic mode. Accounting of the components is performed by the bar code or by manual input of the items.

Video




Specifications:

Design capacity of the storage max., kg

505000

Number of cassettes, load capacity 2000 kg, pcs.

62

Number of cassettes, load capacity 1500 kg, pcs.

254

Cassette dimensions (load), mm

2550 х1200

Possible number of europallets on the cassette, pcs.

3

Number of racks of the storage system, pcs.

62

Number of rack rows, pcs.

4

Number of rack tiers, pcs.

5

Number of stackers, pcs

2

Stacker travel speed, m/min

80

Stacker cross-arm speed of lifting/lowering, m/min

16

Drives

Electromechanical

Overall dimensions of the storage system, mm

50500 х8000х8000(Н)
