Railway Lifting Jacks Railway Lifting Jacks

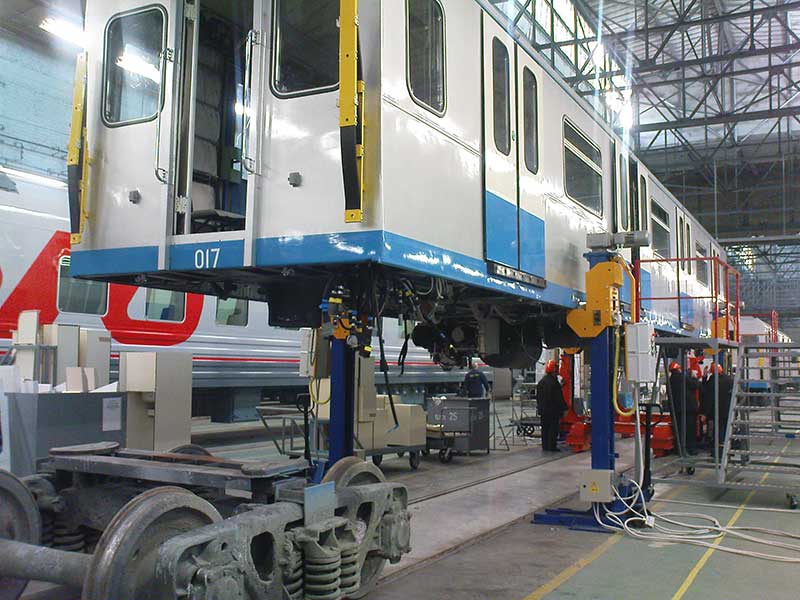

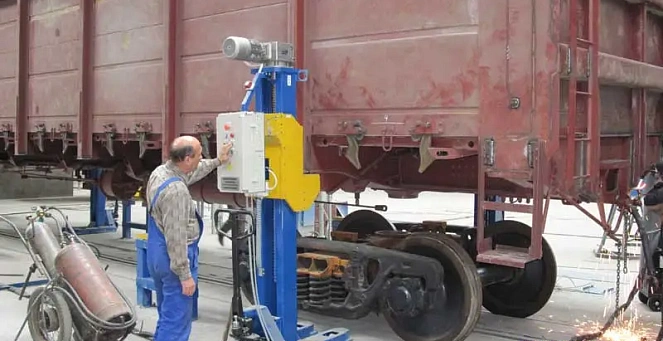

The lifting jacks is designed for performing of process operations on wagon lifting.

Advantages

  • Lifting control is performed from one of the 4 panels (on operator’s choice);

  • Full synchronization of lifting drives operation;

  • Mobility;

  • Low energy output.

Lifting and lowering of jacks is accompanied by the light and sound alarm, the raised position of the wagon is accompanied by interrupted light alarm  of a light column.

The jacks travel along a flat concrete surface on wheels. The use of wheels on rolling bearings with the use of a polyurethane coating allows the operator to move the jack without making any special effort.


Specifications:


1.

Total load capacity, kg

28000

60000

120000

180000

2.

Post load capacity(max.), kg

7000

15000

30000

45000

3.

Body lifting height, mm

1700

1700

1700

1700

4.

Lifting speed, m/min

0,25

0,25

0,20

0,20

5.

Drive power, kW

1,5х4

3х4

5,5х4

7,5х4

6.

Installed capacity of the facility, kW

6

12

22

30
