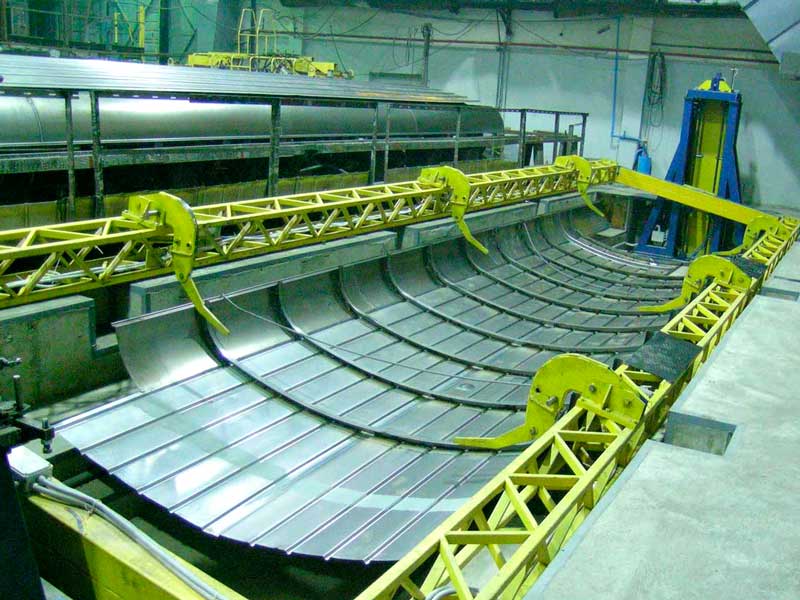

Rotator for car roof covering sections
The rotator is designed for turning by 180 degrees and stacking by 4 pieces of the passenger car roof covering sections.
Specification
|
1. |
Load capacity, kg |
1000 |
|
2. |
Working vertical travel, mm |
2100 |
|
3. |
Rotation axis height, mm |
800...2900 |
|
4. |
Overall dimensions of the turned section, not more, mm | |
|
length |
13600 | |
|
width |
3200 | |
|
height |
1000 | |
|
5. |
Turned section weight, not more, kg |
800 |
|
6. |
Lifting mechanism: | |
|
Lifting drive |
electromechanical | |
|
Lifting speed, m/min |
0,8 | |
|
Total power, kW |
3,0 | |
|
7. |
Rotation mechanism: | |
|
Rotation drive |
electromechanical | |
|
Number of section revolutions, rpm |
1,5 | |
|
Rotation angle at 2900 mm height, degrees |
180 | |
|
Power, kW |
1,5 | |
|
8. |
Control mode |
manual |
|
9. |
Overall dimensions of the rotator, without section, rpm: | |
|
Length, mm |
16470 | |
|
Width, mm |
5435 | |
|
Height, mm |
5135 | |
|
10. |
Rotator weight, kg |
7923 |
