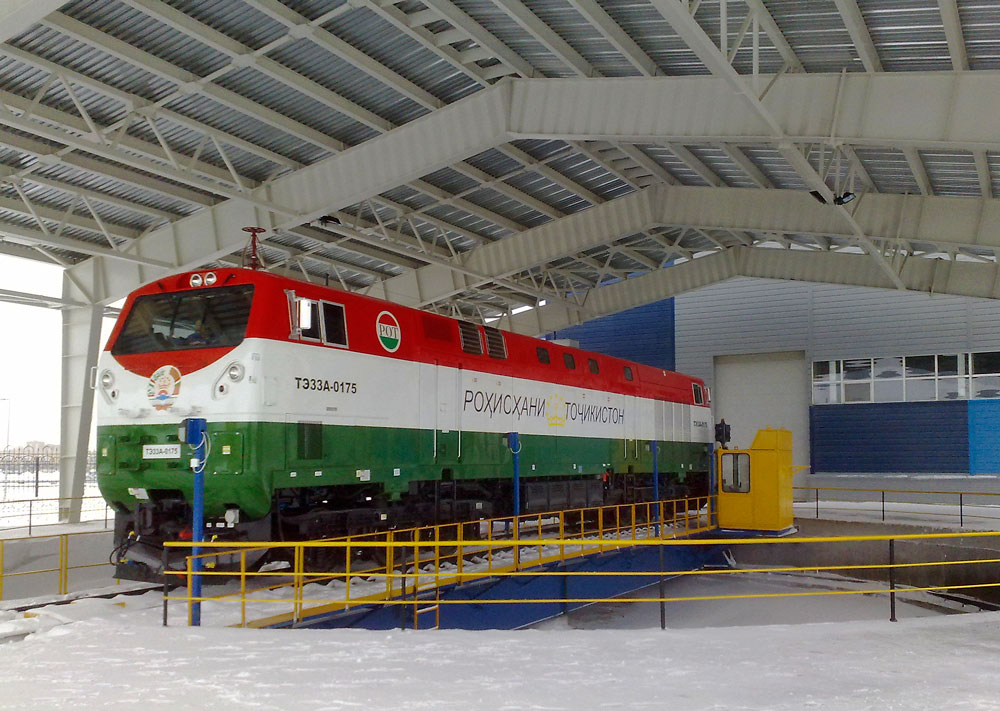

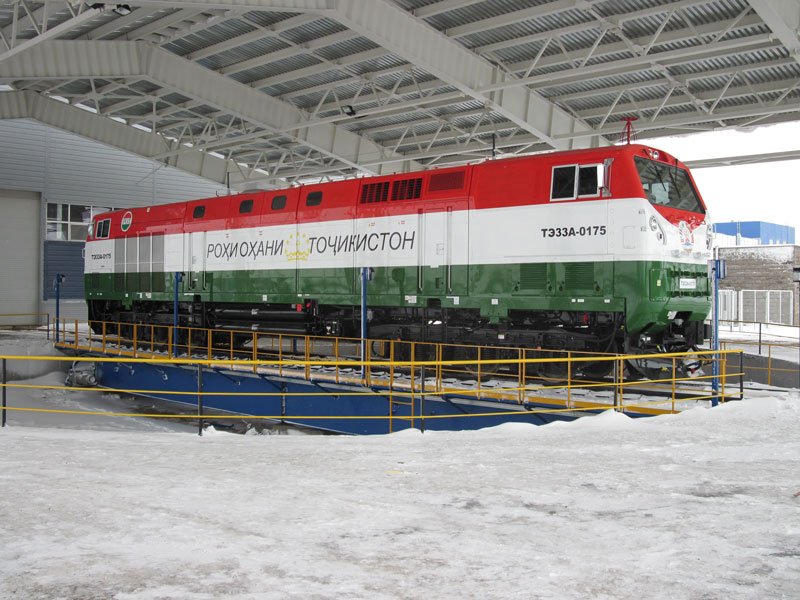

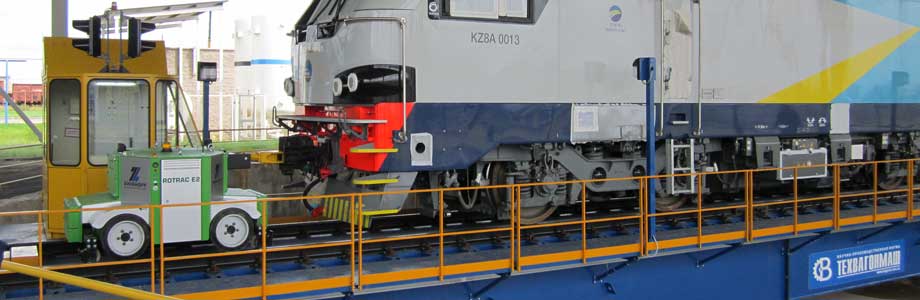

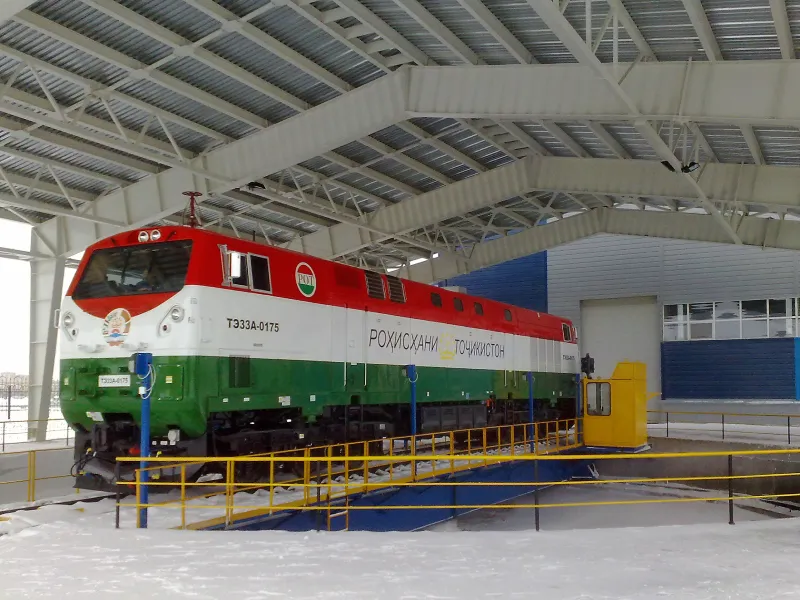

The railway turntable is designed to turn the locomotive by 180 °.

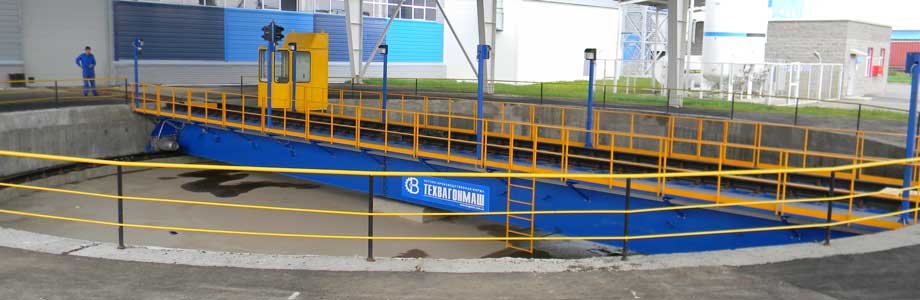

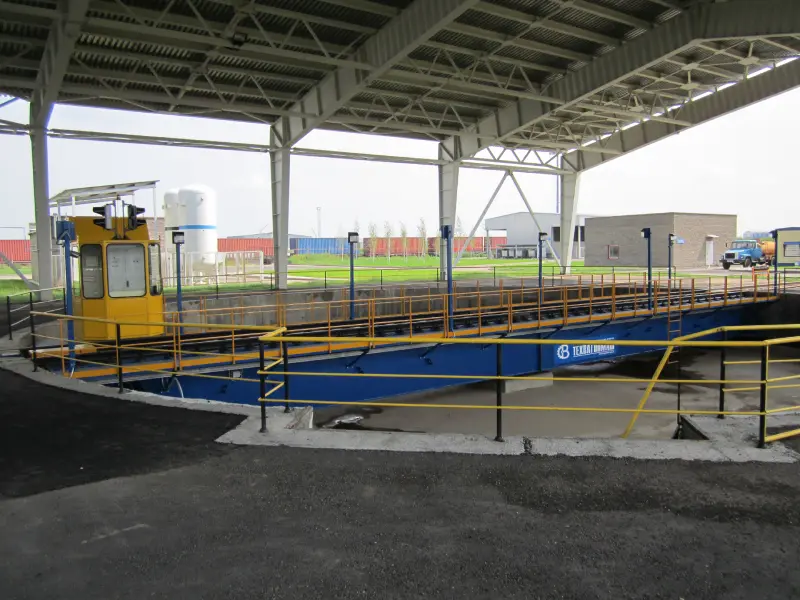

The railway turntable is controlled from a comfortable operator’s cabin. The cabin is equipped with a heater with high heat transfer, which allows setting the required microclimate in a short period of time. The cabin is also equipped with air conditioning.
For safe work, the design of the turntable includes: a spare manual drive, locking devices, indicators of the turntable readiness to receive a locomotive, lamps to illuminate the working area at night.
Application of Turntables in Railway Infrastructure
- Railway depots. Turntables in depots are used to rotate locomotives and wagons for repairs, maintenance, or refueling.
- Marshalling yards. At these stations, turntables are used to sort wagons and change train direction.
- Industrial sites. At industrial facilities where railway transport is utilized, turntables streamline logistics and allow trains to maneuver in restricted areas.
Custom design
Techwagonmash offers a wide range of turntables for railway transport, tailored to meet various tasks and requirements. We guarantee high-quality products, durability, and reliability in operation. Our turntables have undergone all necessary tests and are certified for use in railway facilities.
Contact us to get advice on selecting the right turntable for your enterprise, and to learn about pricing and delivery conditions. We will help you choose the optimal solution to improve the efficiency of your railway hub.
Specifications:
| 1. | Load capacity, kg | 150000 |
| 2. | Table diameter, m | 24 |
| 3. | Circular rail diameter | 22,4 |
| 4. | Linear speed of movement, m/min | 32 |
| 5. | Installed capacity of electrical equipment, kW | 70 |
| 6. | Overall dimensions, mm | 24000х6242х2552 |
Technical Options for the Base Configuration
Electrical Equipment & Control
- Remote control (radio pendant or wired remote station) — for operation without constant presence in the cab
- Automatic positioning system with track position memory — the operator selects the track number and the turntable aligns automatically
- Integration with depot management systems (Modbus, Profibus, Ethernet protocols)
- CCTV system monitoring the working area with display in the operator’s cab
- Redundant frequency converter — eliminates downtime in case of primary unit failure
Climate & Ergonomic Configurations
- Enhanced thermal insulation cab (for harsh climate regions)
- High-power floodlighting of the turntable area (for night shifts)
Civil Works & Installation
- Development of foundation drawings and site-specific structural assignment
- Supervised installation with on-site specialists
- Commissioning and load testing
- Personnel training (operators + electricians + maintenance mechanics)
After-Sales Service & Lifecycle Support
- Extended warranty (beyond the standard term)
- Maintenance contract (routine servicing, seasonal maintenance)
- Spare parts and tooling kit (basic and extended sets)
- Remote equipment condition monitoring (when integrated with depot management system)
Non-Standard Configurations
- Custom turntable diameter (to suit specific rolling stock — diesel, electric locomotives, track maintenance machines)
- Increased load capacity (above 150 t — for heavy freight locomotives)
- Indoor depot configuration (no outdoor shelter, adapted cab dimensions)
- Heavy-duty anti-corrosion coating for high-humidity or coastal environments
