Lifting and turning device for a wheelset

Lifting and turning device for a wheelset

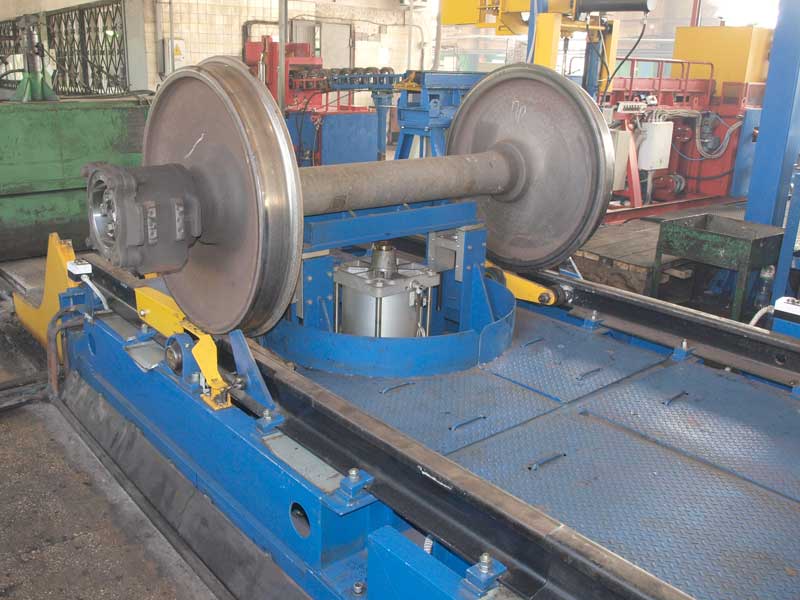

The lifting and turning device is designed to lift and turn the wheelset by 180°. The device operates as part of a mechanized overpass, when carrying out work on the repair of wheel sets of railway transport.

Specifications:


Lifting height of wheelset, mm 200
Angle of rotation of the wheelset, deg 180
Swing drive type pneumatic
Lift drive type pneumatic
Air pressure in the pneumatic system, MPa 0.4-0.6
