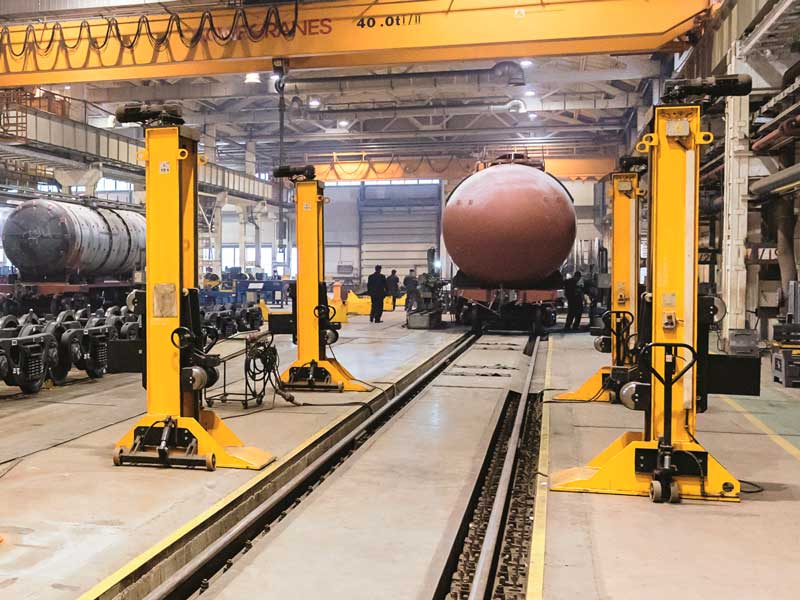

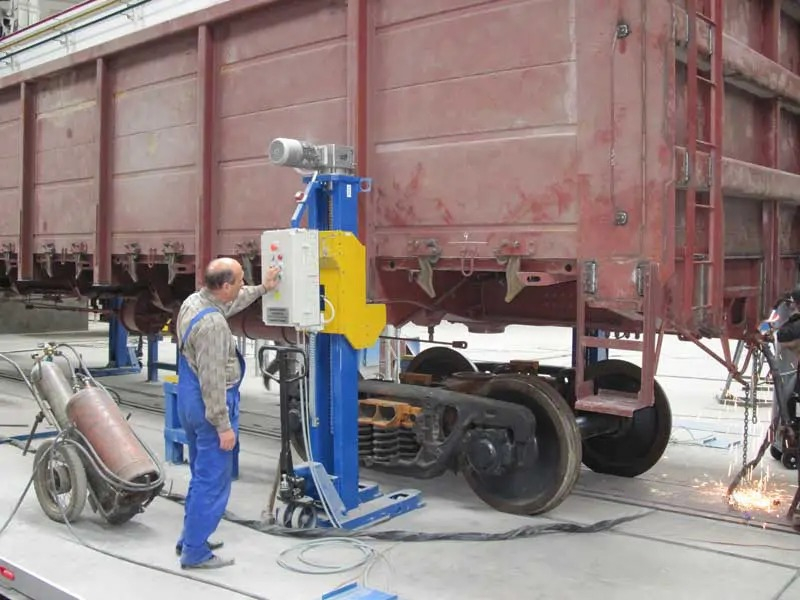

The lifting jacks is designed for performing of process operations on wagon lifting.
Advantages
- Lifting control is performed from one of the 4 panels (on operator’s choice);
- Full synchronization of lifting drives operation;
- Mobility;
- Low energy output.
Lifting and lowering of jacks is accompanied by the light and sound alarm, the raised position of the wagon is accompanied by interrupted light alarm of a light column.
The jacks travel along a flat concrete surface on wheels. The use of wheels on rolling bearings with the use of a polyurethane coating allows the operator to move the jack without making any special effort.
Specifications:
| 1. Total load capacity, kg | 28000 | 60000 | 120000 | 180000 |
| 2. Post load capacity(max.), kg | 7000 | 15000 | 30000 | 45000 |
| 3. Body lifting height, mm | 1700 | 1700 | 1700 | 1700 |
| 4. Lifting speed, m/min | 0,25 | 0,25 | 0,20 | 0,20 |
| 5. Drive power, kW | 1,5х4 | 3х4 | 5,5х4 | 7,5х4 |
| 6. Installed capacity of the facility, kW | 6 | 12 | 22 | 30 |
