Multipurpose positioner for electric locomotive underframe

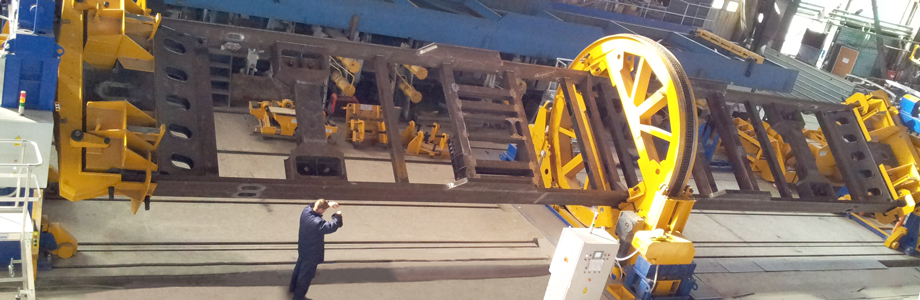

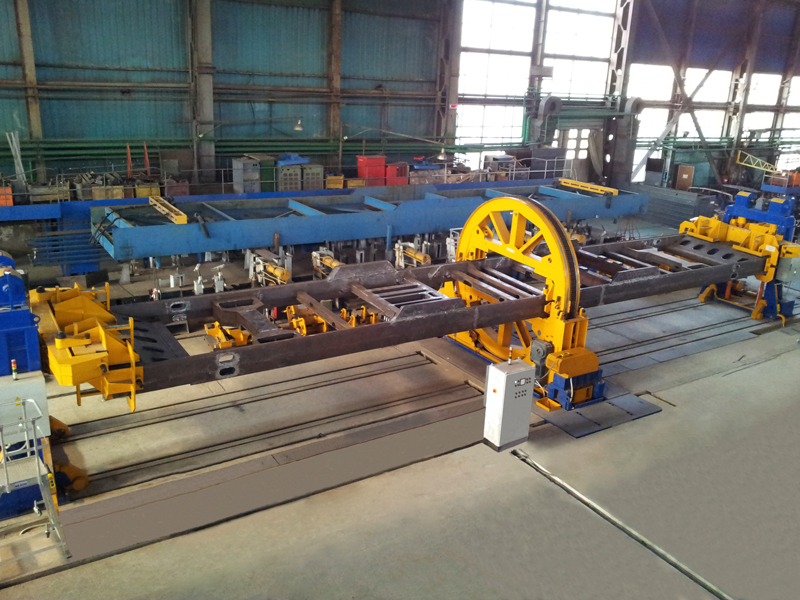

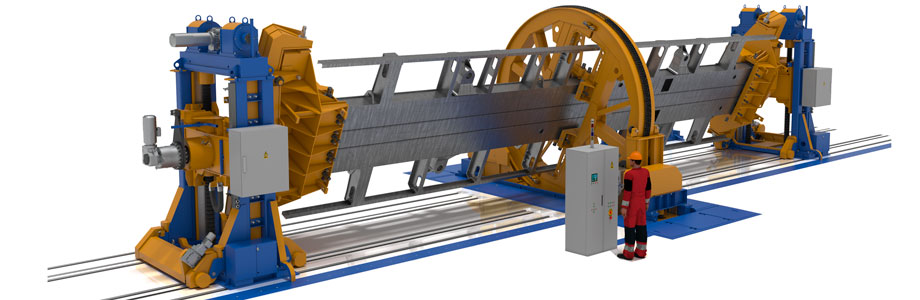

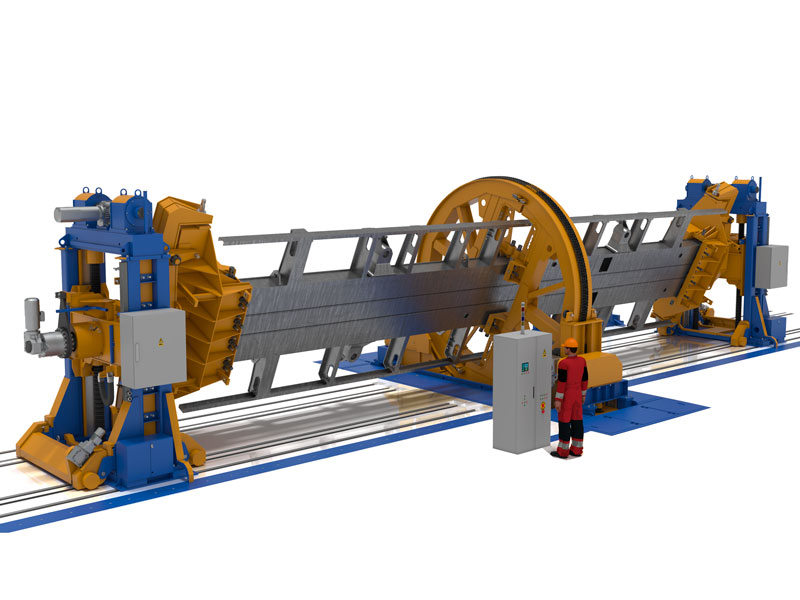

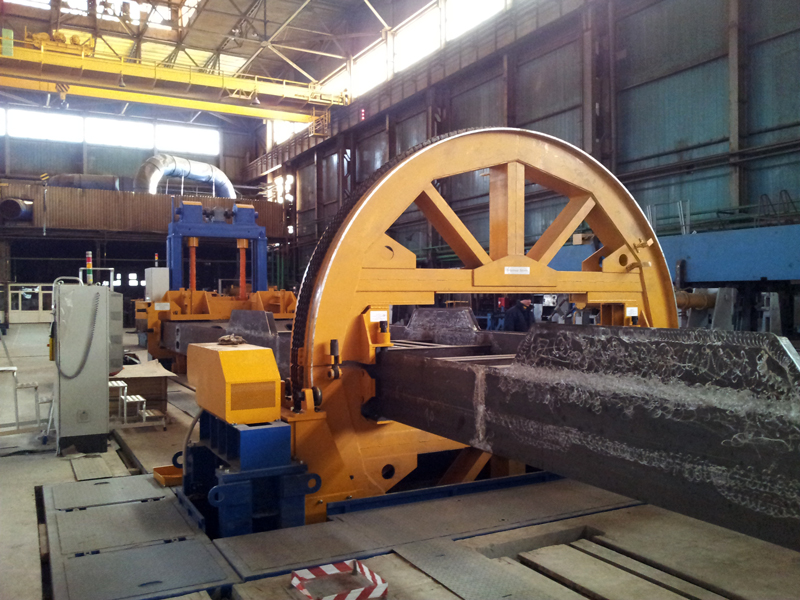

The positioner has been designed for electric locomotive underframe positioning, lifting and rotation for convenient welding.
|
1. |
Total load capacity, kg |
40 000 |
|
2. |
Load capacity of positioner without ring, kg |
30 000 |
|
3. |
Max. length of positioned item, mm |
23 000* |
|
4. |
Max. width of positioned item, mm |
3 250 |
|
5. |
Positioning speed, rpm |
0,5…0,95 |
|
6. |
Positioner rotation angle with ring application, deg |
+180/-135 |
|
7. |
Positioner rotation angle without ring, deg |
360 |
