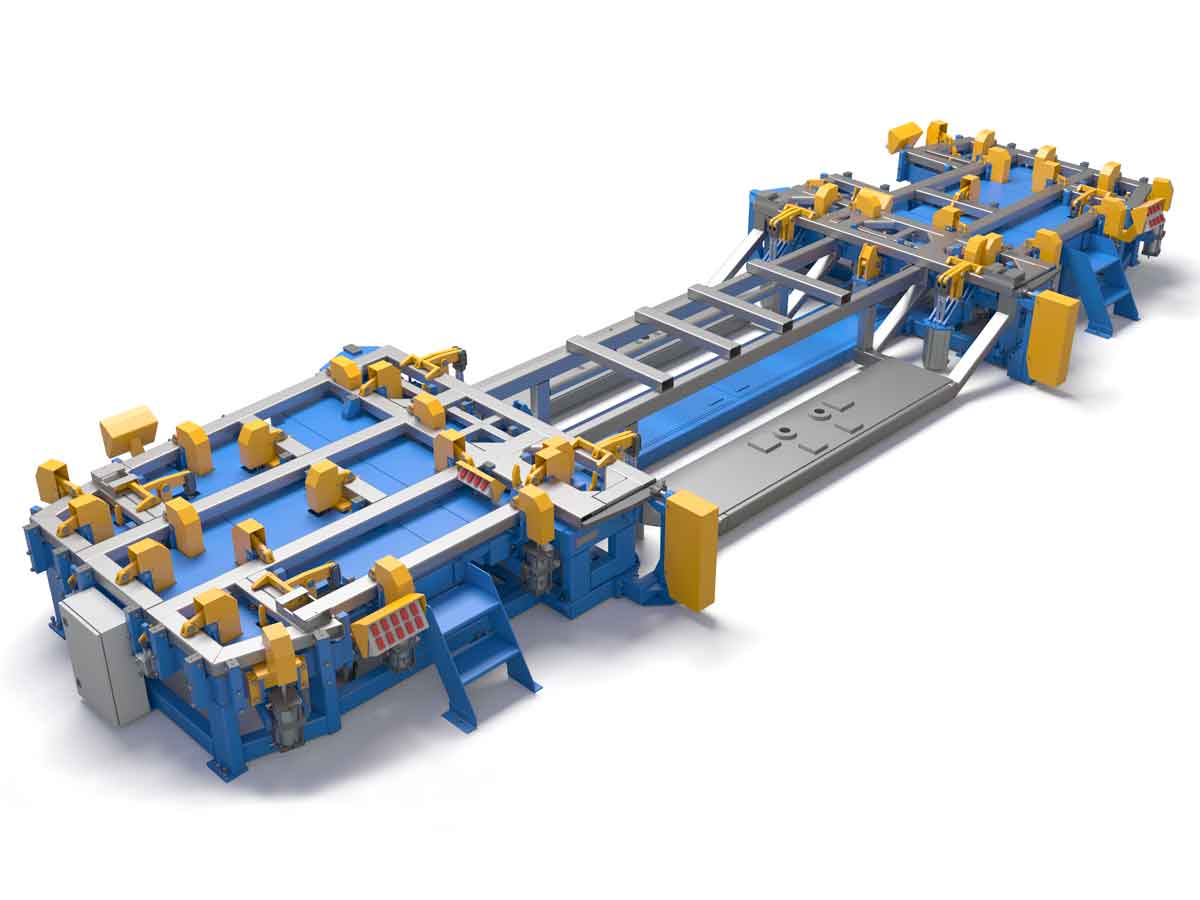

Multipurpose stand for assembly of front and rear frames

Multipurpose stand for assembly of front and rear frames

The stand is intended for assembling frame frames of the front and rear sections of the tram in the reverse position.

Principle of operation

Elements of the frame frames are placed on the support plates of the stand where they are fixed along the stops and welded. At the end of welding, a command is given to return the clamps simultaneously to their original position. The finished product is removed from the stand by a crane and transferred to the next workplace.

Specifications:

1.

Stand type

readjusted

2.

Number of standard sizes of products, pcs.

2

3.

Drive of working bodies of the stand

pneumatic

4.

Stand changeover principle

manual

5.

Bench control principle

manual, via buttons

6.

Air consumption, m 3 / h

6

7.

Air pressure in the pneumatic network, MPa:

0.4…0.6

8.

Installed power, kW

0.66

9.

Weight, kg,

5630
