Multipurpose stand for car underframes assembly and welding

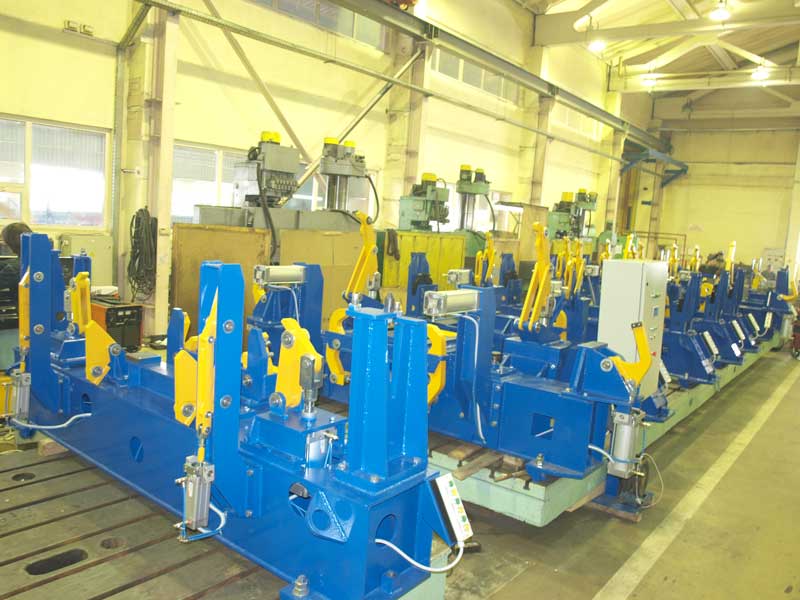

The stand is designed for assembly and welding of gondola car frames in normal position, platform frames for transporting 80-foot containers and car frames for transporting cars in reverse position.

Adjustment of the conductor for assembly and welding of a particular beam consists in fixed re-adjustment of clamping and base elements to strictly defined places. Adjustment of the stand for assembly of one or another frame is ensured by installation of the conductors on strictly fixed places, provided on the embedded parts in the floor of the workshop.

Specifications:

1.Designation of items to be assembledGondola Car UnderframeFlat Car UnderframeAutomobile Transporter Underframe
2.Overall dimensions of the items to be assembled, mm
Length (along front beams), mm128102448023240
width293031602460
height6654421024
3.Stand typeadjustable
4.Quantity of the items dimension types3
5.Stand operating elements drivepneumatic
6.Stand readjustment modemanual
7.Stand control modemanual, button-control
8.Air consumption per item m/h35
9.Air pressure in pneumatic line, Mpa0,4 … 0,6
10.Power consumption, kw0,5
11.Overall dimensions of the stand, mm:Gondola CarFlat CarAutomobile Transporter
length135762550424264
width512244905122
height142013001195
12.Weight, kg270004720040400
