Gondola cars underframes assembly and welding stand

Gondola cars underframes assembly and welding stand Gondola cars underframes assembly and welding stand

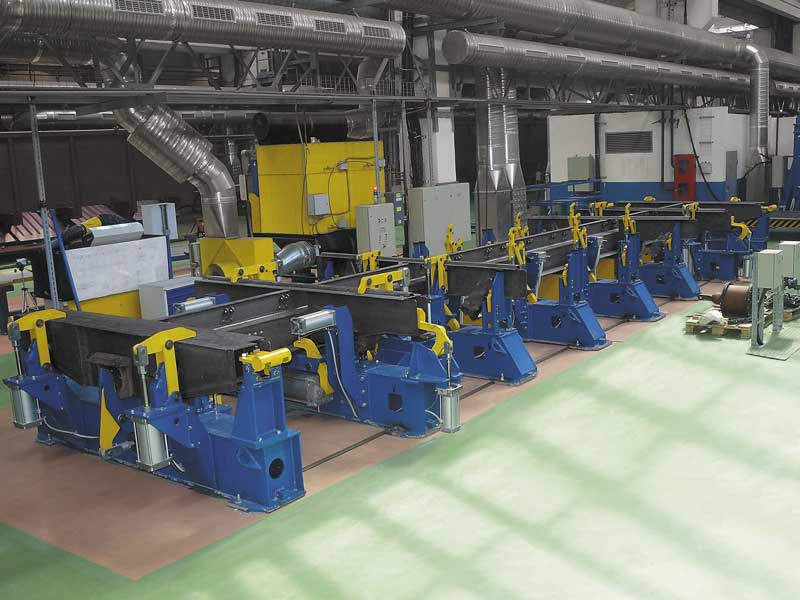

The stand is designed for gondola car underframes assembly and welding in normal position.

Specifications

1.

Designation of items to be assembled

Underframe 5703-06.01.000

Underframe 5703-06.01.000-01

2.

Overall dimensions of the items to be assembled, mm



Length, mm

12810

12810

Width, mm

3150

3150

Height, mm

632

632

3.

Type

not adjustable

4.

Quantity of the items dimension types

2

5.

Stand operating elements drive

pneumatic

6.

Stand control mode

manual, button-control

7.

Air consumption per item m³/h

20

8.

Air pressure in pneumatic lines, MPa

0,4 … 0,6

9.

Power consumption, kw

0,5

10.

Overall dimensions of the stand, mm


Length

13576

Width

3544

Height

1330

11.

Weight, kg

12500
