Welding positioner for wagon body

Welding positioner for wagon body

Welding positioner for wagon body

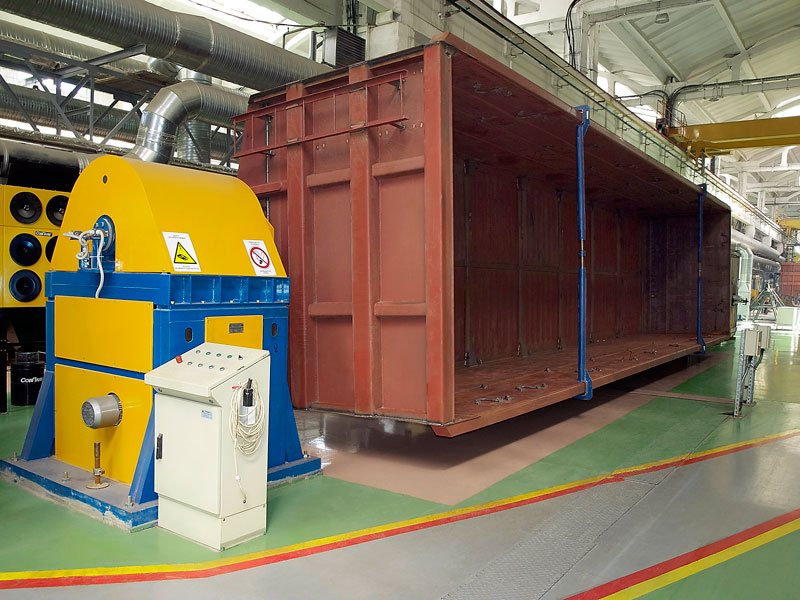

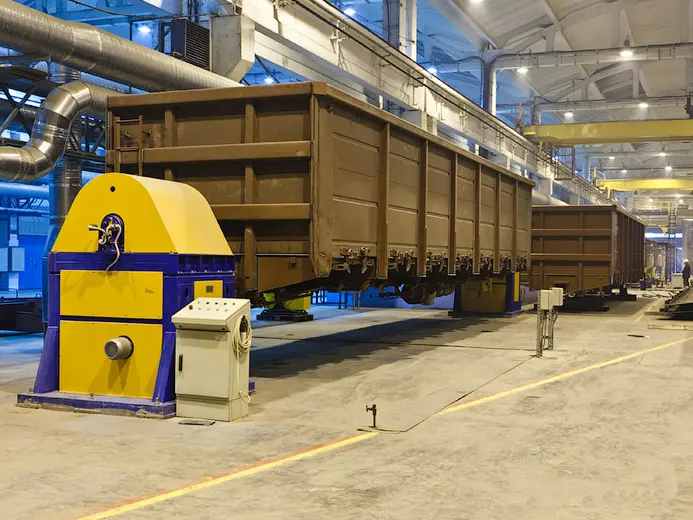

Welding positioner ensures a convenient welding position of the wagon body during its manufacturing.

Specifications:

1.

Load capacity, Kgs

15000

2.

Height of rotating axis, mm

2500

3.

Overall dimensions of handling workpiece, mm

12900х3000х3000

4.

Weight of the handling workpiece, kg

14000

5.

Rotating drive

electro-mechanical

6.

Rotatioin speed, RPM

1

7.

Degree of rotation

360

8.

Total capacity of drives, kw

11

9.

Overall dimensions, mm

20000х4300х3100

10.

Weight of rotator, kg

12600
