Sheet Metal Storage Systems
Automated storage systems for metal roll is an up-to-date solution for keeping of a wide range of metal roll products, their control and identification.
Video
Storage of metal roll in machine-building enterprises takes up to 80% of storage space. In addition to this a considerable part of this production is used not for the storage itself but for the arrangement of service passages and walkways. Besides, transporting of stored materials requires application of expensive specialized equipment or additional hoisting equipment which, in the first place, leads to considerable time expenditures when delivering metal roll to process areas for the subsequent work with it.
The logic of automated storage systems application is based on storage of metal roll in special trays which are automatically placed into the storage cells after loading.
Thus a completely new level of storage culture is reached with a whole range of opportunities:
- to perform stocktaking of remaining materials with detection of its precise location ( a storage cell);
- to control taking on charge / discarding procedures using the automated storage controller data;
- to draw up the required report documents;
- to provide the differentiation of users’ access rights to the data, using the authentication mode.
- to create sizable stocks of raw materials for production in the immediate proximity to the processing equipment and machines.
USE OF MECHANIZED STORAGE SYSTEM ALLOWS:
-
Optimize shop logistics;
-
Simplify manufacturing sequence;
-
Shorten the time of metal-roll feed into production;
-
Automate the system of control over the stock resources;
-
Considerably reduce storage spaces;
- Reduce the number of maintenance staff.
Options:
-
The storage system can be designed with the option of unit loads storage in boxes, in boxes on pallets;
-
The storage system can be equipped with its own crane with magnetic clamps for angles, stripes;
-
The storage system can be equipped with inter-stage utility transport for metal-roll feed for technological operations (mechanical, thermal cutting, punching, bending, etc.)
Specifications:
Number of cassettes |
Height of the storage system ( cassette 3200х1500) |
Height of the storage system (cassette 4200х1700) |
Height of the storage system (cassette 6200х2100) |
8 |
|
|
3970 mm |
9 |
|
|
4255 mm |
10 |
3900 mm |
3900 mm |
4540 mm |
11 |
4130 mm |
4130 mm |
4825 mm |
12 |
4360 mm |
4360 mm |
5110 mm |
13 |
4590 mm |
4590 mm |
5395 mm |
14 |
4820 mm |
4820 mm |
5680 mm |
15 |
5050 mm |
5050 mm |
5965 mm |
16 |
5280 mm |
5280 mm |
6250 mm |
17 |
5510 mm |
5510 mm |
6535 mm |
18 |
5740 mm |
5740 mm |
6820 mm |
19 |
5970 mm |
5970 mm |
6760 mm |
20 |
6200 mm |
6200 mm |
7105 mm |
21 |
6430 mm |
6430 mm |
|
22 |
6660 mm |
6660 mm |
|
23 |
6890 mm |
6890 mm |
|
24 |
7120 mm |
7120 mm |
|
Design versions
![]() |

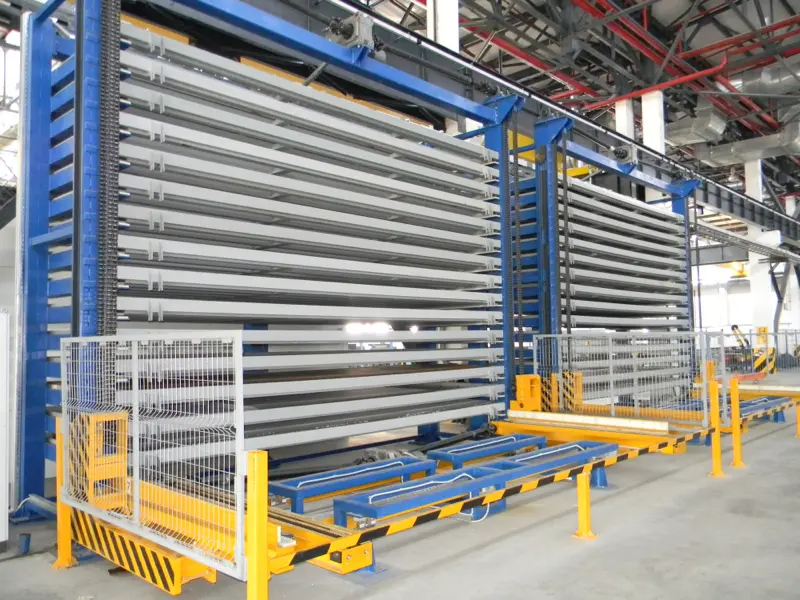

Sheet metal storage system with double-sided loading |
Separate loading and unloading allows the warehouse to be integrated with thermal cutting plants.
|
|
|

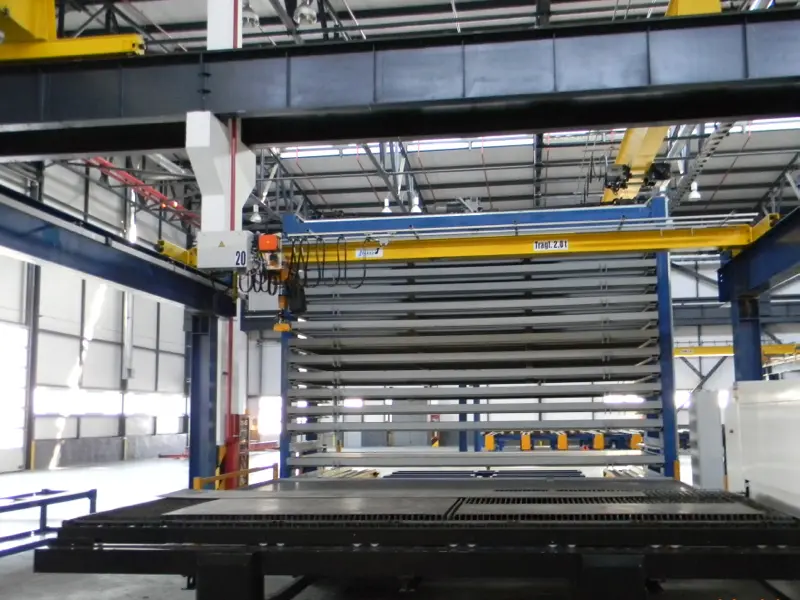

Plasma or laser integrated version |
The supply of rolled metal to the thermal cutting unit is carried out directly from the automated warehouse in automatic mode. |
|
![]() |

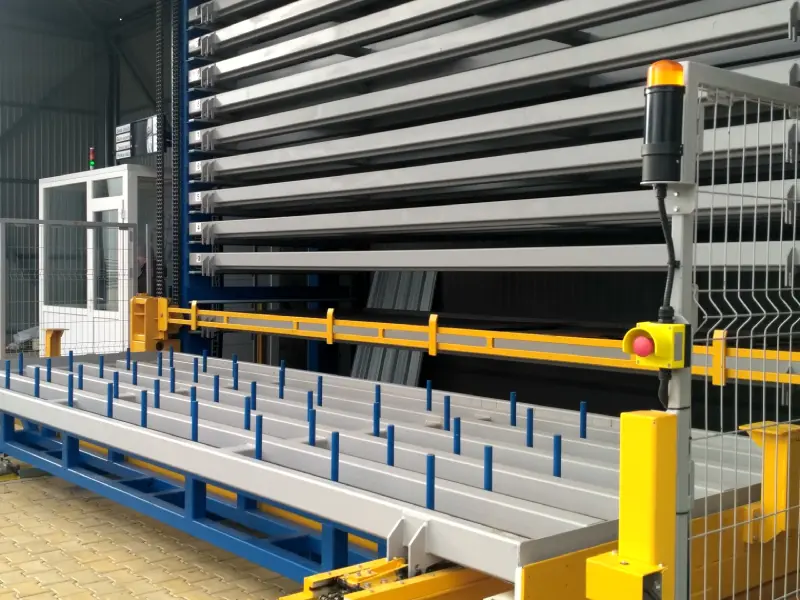

Sheet metal storage system with unit loads storage capacity |
The mechanized storage has been designed for storing sheet metal and unit loads (on pallets or in boxes). |
|
