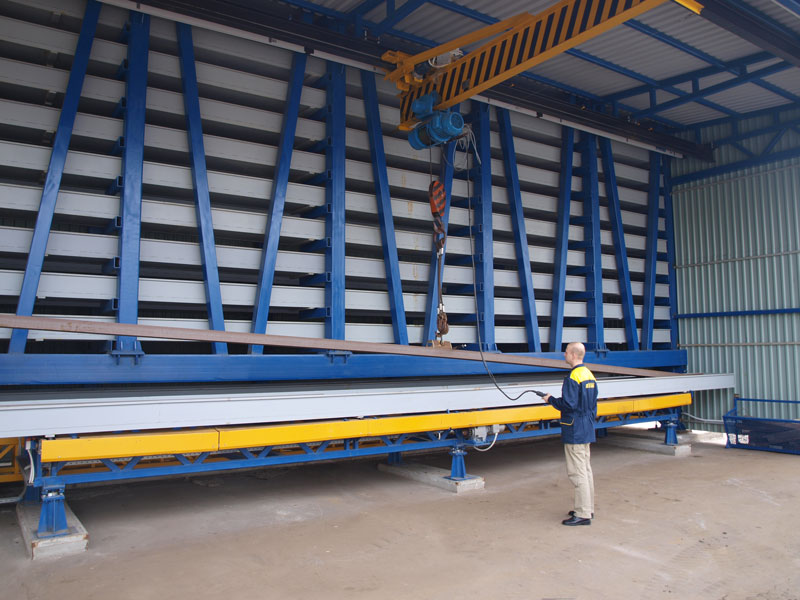

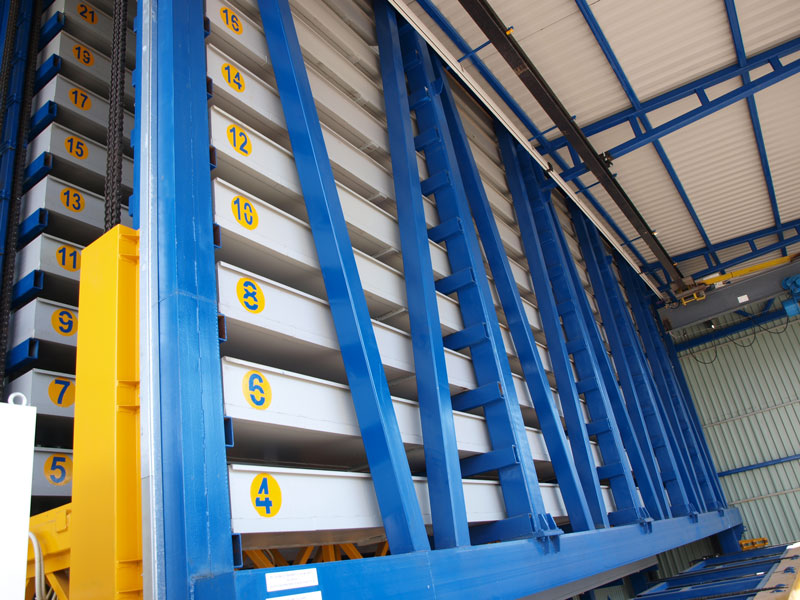

Automated long goods storage – safe, economical and efficient storing metal profiles, rods, panels, pipes and other long bars.
USE OF MECHANIZED STORAGE SYSTEM ALLOWS:
– Optimize shop logistics;
– Simplify manufacturing sequence;
– Shorten the time of metal-roll feed into production;
– Automate the system of control over the stock resources;
– Considerably reduce storage spaces;
– Reduce the number of maintenance staff.
Options:
– The storage system can be designed with the option of unit loads storage in boxes, in boxes on pallets;
– The storage system can be equipped with its own crane with magnetic clamps for angles, stripes;
– The storage system can be equipped with inter-stage utility transport for metal-roll feed for technological operations (mechanical, thermal cutting, punching, bending, etc.)
Specifications:
| Load capacity, kg | 27000 | 54000 |
| Load capacity of the cell, kg | 1500 | 3000 |
| Number of cells, pcs. | 18 | 18 |
| Inner dimensions of the cell | 6450 х 600 х 240 | 12450 х 600 х 240 |
| Cross beam elevating/loweing speed, m/min | 14 | 14 |
| Traction equipment type | chain | chain |
| Cell travel speed along telescopic rails, m/min | 6 | 6 |
| Storage system dimensions, mm | 7520 х 3515 х 5860 (Н) | 13120 х 3515 х 5870 (Н) |
