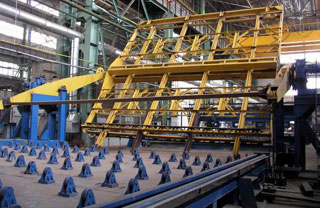

The line is designed for welding from one or the other side of a card of 4 sheets of metal for the manufacture of a tank boiler.
The line includes:
– Assembly stand and tacks.
– Complex for automatic welding of panels on the front side.
– Turner of sheet panels.
– Complex for automatic welding of panels on the reverse side.
Specifications:
| 1. | Dimensions of the welded panel, mm: | |
| length | 10080 | |
| width | 9450 | |
| thickness | 9-11 | |
| 2. | Pressing and pressing pneumatic cylinders control- thickness | manual |
| 3. | Number of transborder trolleys for transportation of the panel, pcs. | 2 |
| 4. | Speed of movement of carts of transborder devices, m/min | 15 |
| 5. | Total installed power el. stand drives, kW | 4,4 |
