The jacking unit for lifting sections of round tanks is supplied as a set of 15 jacks with a total lifting capacity of 60 tonnes.

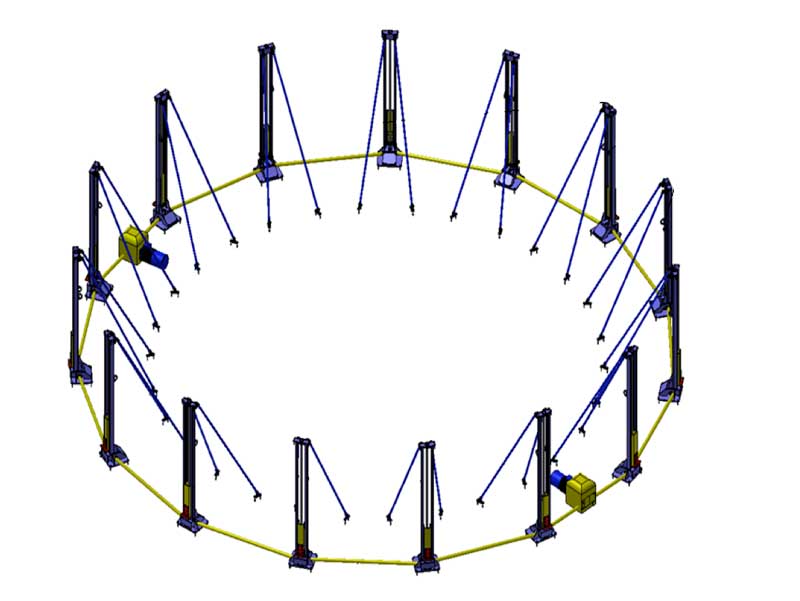

The jacks are mounted in a circle, connected by cardan shafts and connected to gearmotors. The drive shafts are protected with guards for operator safety.
Specifications:
| 1. | Lifting capacity of jacking unit, tonnes | 60 |
| Diameter of mounted tank, mm | 11300 | |
| Product lifting height, mm | 1500 | |
| Product lifting speed, m/min | 318 | |
| Lifting drive | Gearmotor | |
| Quantity of gearmotors | 2 | |
| Gearmotor power, kW | 5,5 | |
| 2. | Quantity of jacks | 15 |
| Lifting capacity, tonnes | 5 | |
| Actuating mechanism | lead screw | |
| Overall dimensions of the jack, mm | 450х395х2330 | |
| Weight of one jack, kg | 200 | |
| 3. | Overall dimensions of the jacking unit, mm | 11300х11300х2330 |
