Rope trolleys

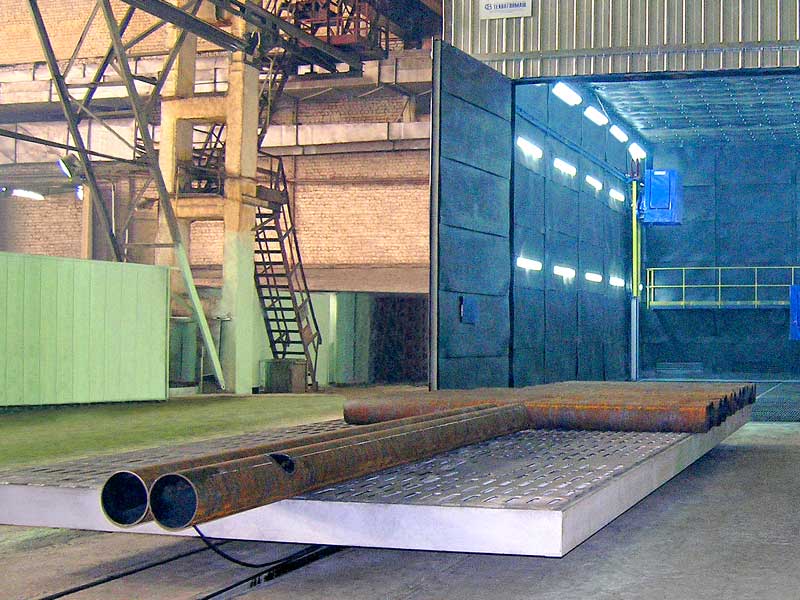

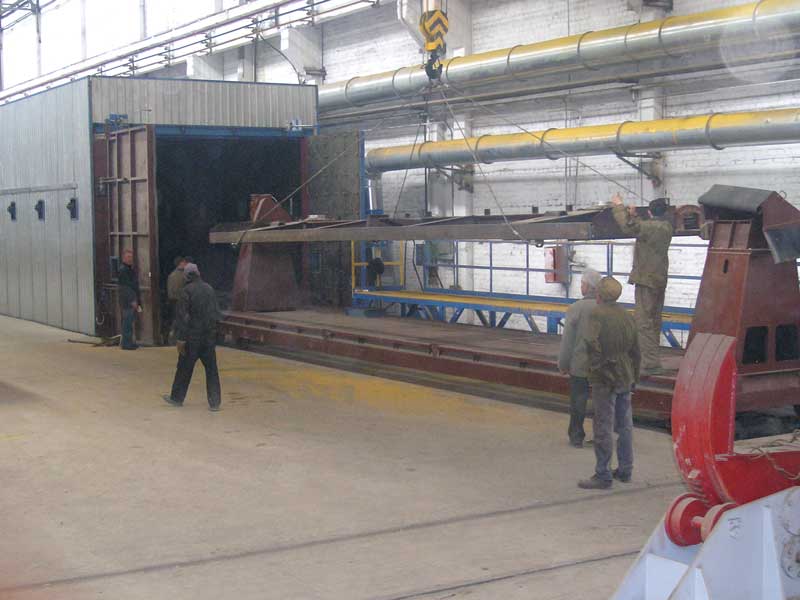

Trolleys are designed for supplying products to painting and drying, drying, shot-blasting, shot-blasting chambers or for transferring cargo between the bays of an industrial building. The trolley can be controlled both from a stationary and a portable control panel.
During the movement of the trolley, a warning sound and light alarm is activated. At the request of the customer, it is possible to manufacture a trolley with driven roller supports for product rotation, special lodgements, and a tilter for tilting the product.
Specifications:
Parameter name |
Value |
||||
Carrying capacity, t |
5 |
10 |
20 |
30 |
50 |
Rail track gauge, mm |
1524 |
1524 |
1524 |
1524 |
1524 |
Travel speed, m/min |
8.4 |
9.3 |
22.5 |
15.0 |
10.0 |
Platform size, mm |
|||||
length |
3600 |
3600 |
4500 |
5000 |
6500 |
width |
2000 |
2000 |
2200 |
2500 |
3000 |
Engine power, kW |
2.8 |
2.8 |
3.7 |
5.5 |
5.5 |
