Motor trolley

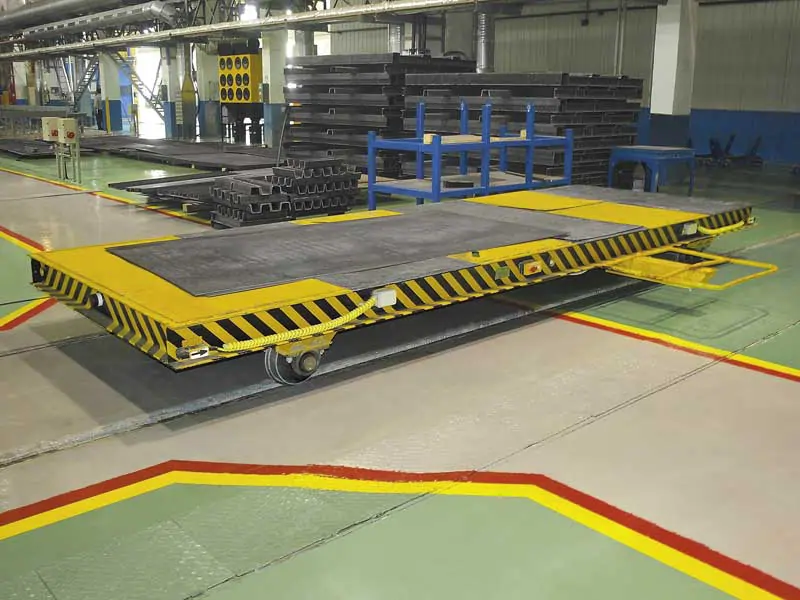

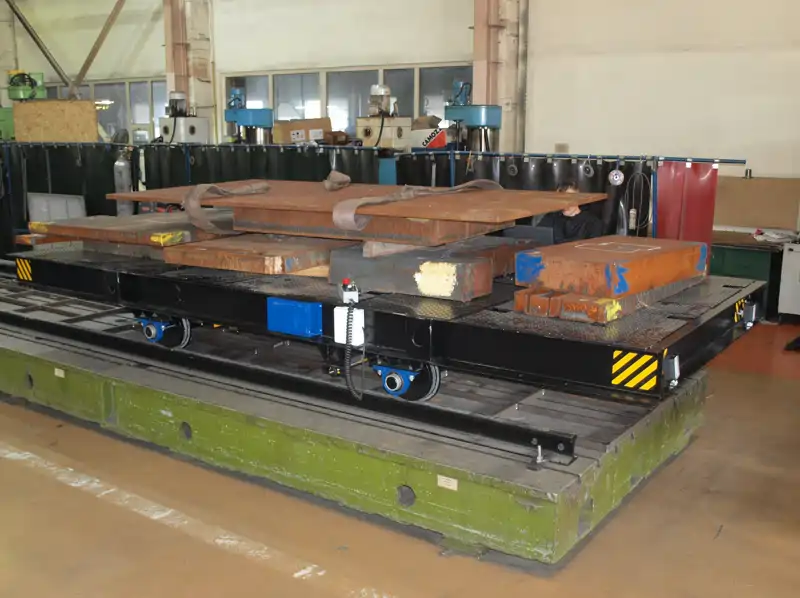

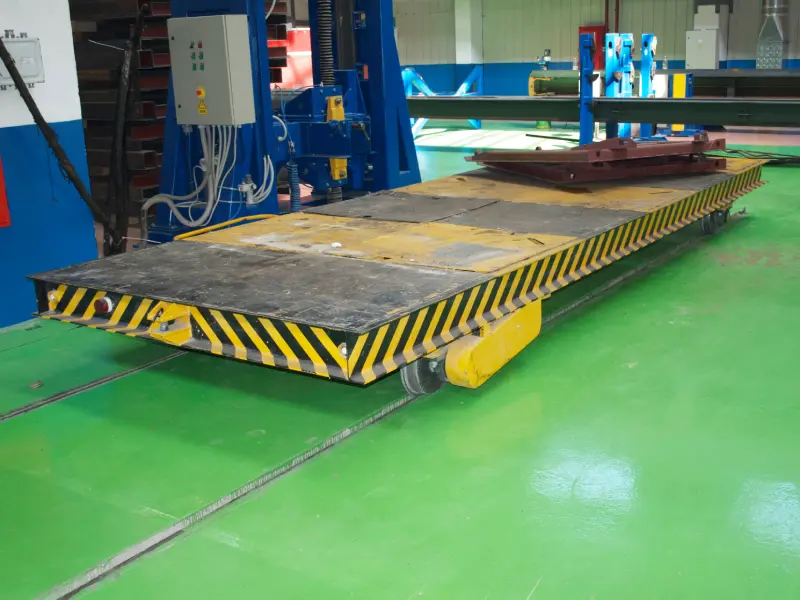

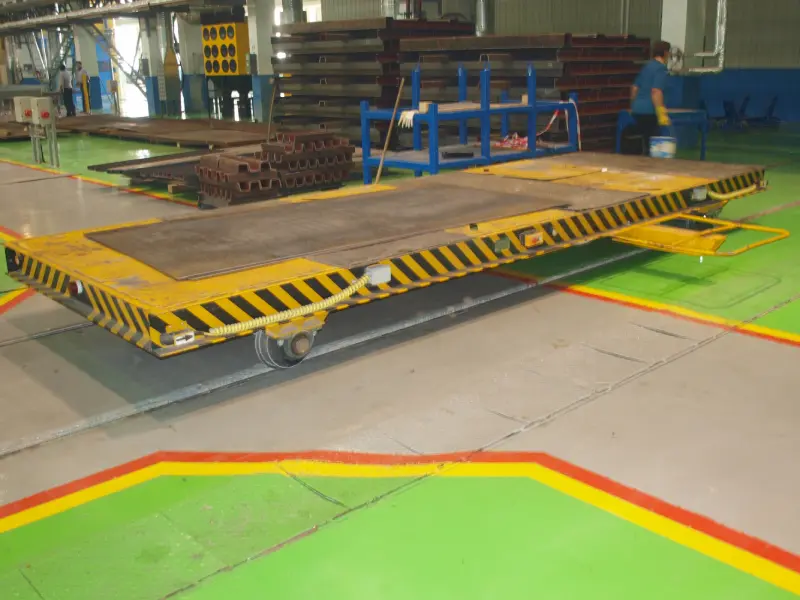

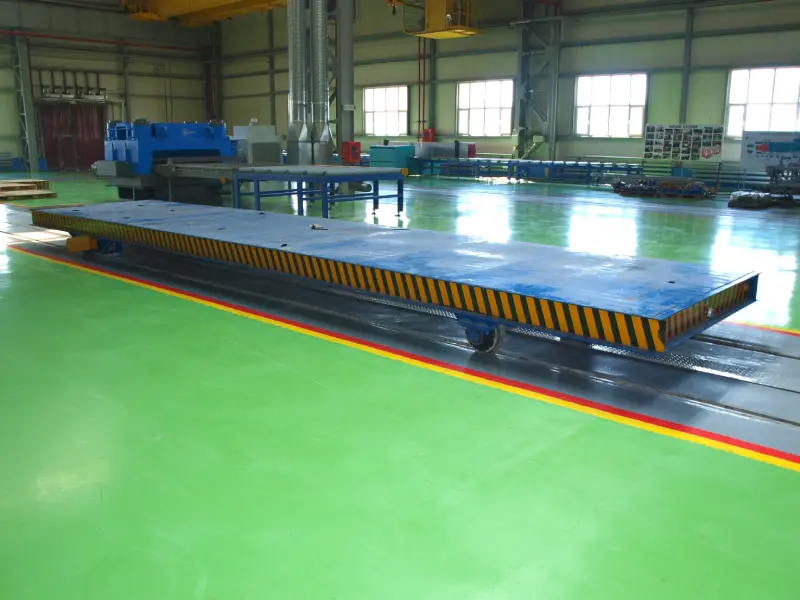

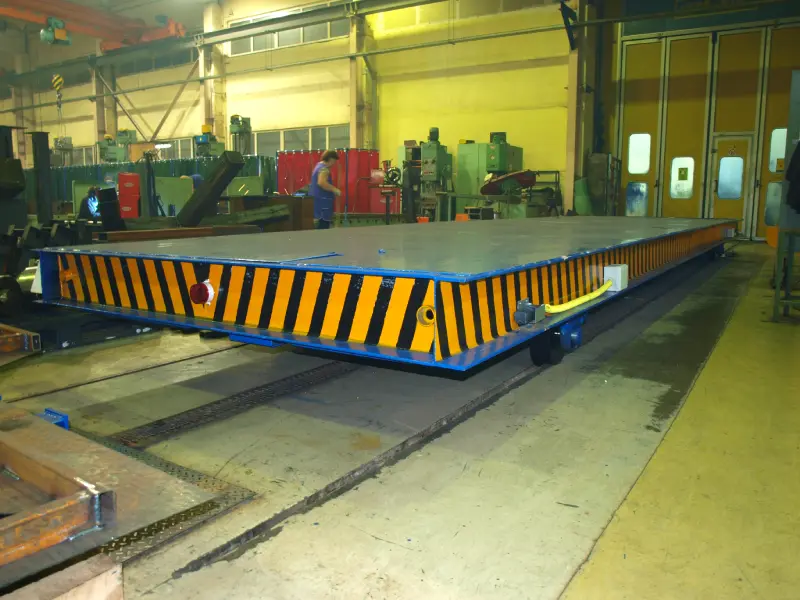

The trolley is intended for in-shop handling of loads along linear horizontal sections of rail tracks.
· The transfer trolley is fed from the trolley wire (IP 44), located on the floor or on the columns.
· The trolley is controlled through frequency converter, which allows long-term speed variation.
· The trolley has smooth start and stop mode, which is very important for heavy loads transportation.
· The trolley control can be provided from portable control panel (installed on the trolley) as well as from remote control panel (optionally).
· The warning sound and light signaling is on during trolley motion.
· As an option the trolley can be equipped with tracking system for travel blocking in case of foreign objects within travel area.
Specifications:
|
Specifications |
Trolley model |
||||
|
ТТ-5 |
ТТ-10 |
TT-20 |
TT-40 |
TT-50 |
|
|
Load capacity, t |
5 |
10 |
20 |
30 |
50 |
|
Travel speed, m/s |
0,52 |
0,52 |
0,47 |
0,47 |
0,42 |
|
Track, mm |
1524 |
1524 |
1524 |
1524 |
1524 |
|
Platform size, mm |
|||||
|
length |
3500 |
4500 |
4500 |
4500 |
5000 |
|
width |
2100 |
2100 |
2100 |
2300 |
2500 |
|
Platform height over the rail head, mm |
800 |
800 |
850 |
820 |
1000 |
|
Electric motor power, kW |
1,7 |
1,7 |
3 |
6 |
6 |
|
Weight, kg |
2700 |
3100 |
3800 |
5500 |
9900 |
