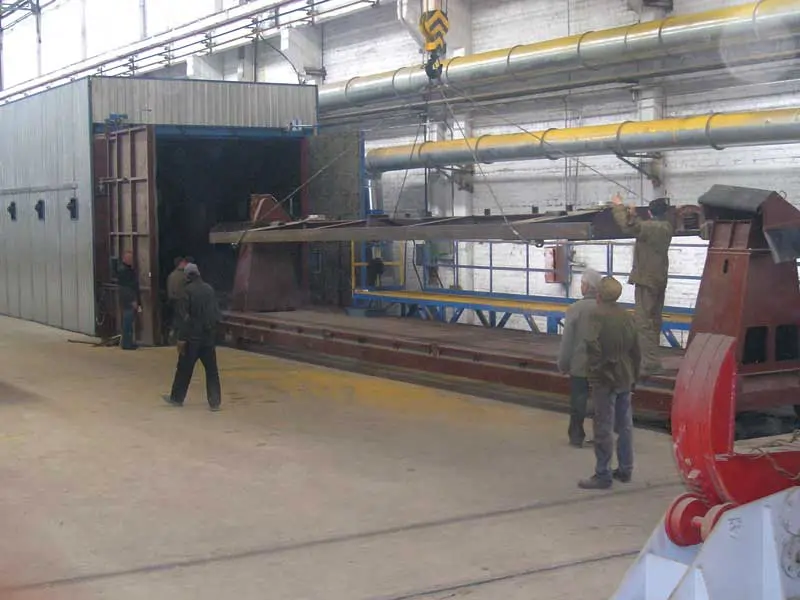

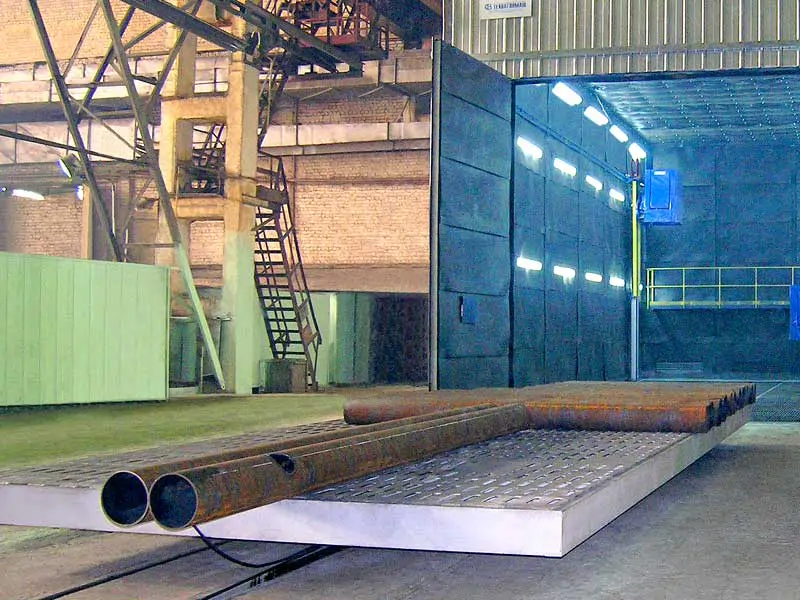

Trolleys are designed for supplying products to painting and drying, drying, shot-blasting, shot-blasting chambers or for transferring cargo between the bays of an industrial building. The trolley can be controlled both from a stationary and a portable control panel.
During the movement of the trolley, a warning sound and light alarm is activated. At the request of the customer, it is possible to manufacture a trolley with driven roller supports for product rotation, special lodgements, and a tilter for tilting the product.
Specifications:
| Parameter name | Value | ||||
| Carrying capacity, t | 5 | 10 | 20 | 30 | 50 |
| Rail track gauge, mm | 1524 | 1524 | 1524 | 1524 | 1524 |
| Travel speed, m/min | 8.4 | 9.3 | 22.5 | 15 | 10 |
| Platform size, mm | 3600×2000 | 3600×2000 | 4500×2200 | 5000×2500 | 6500×3000 |
| Engine power, kW | 2.8 | 2.8 | 3.7 | 5.5 | 5.5 |
