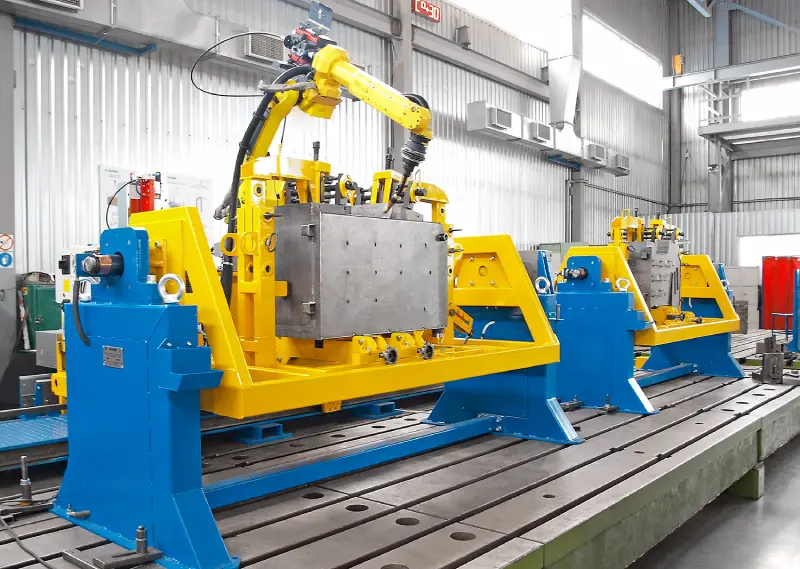

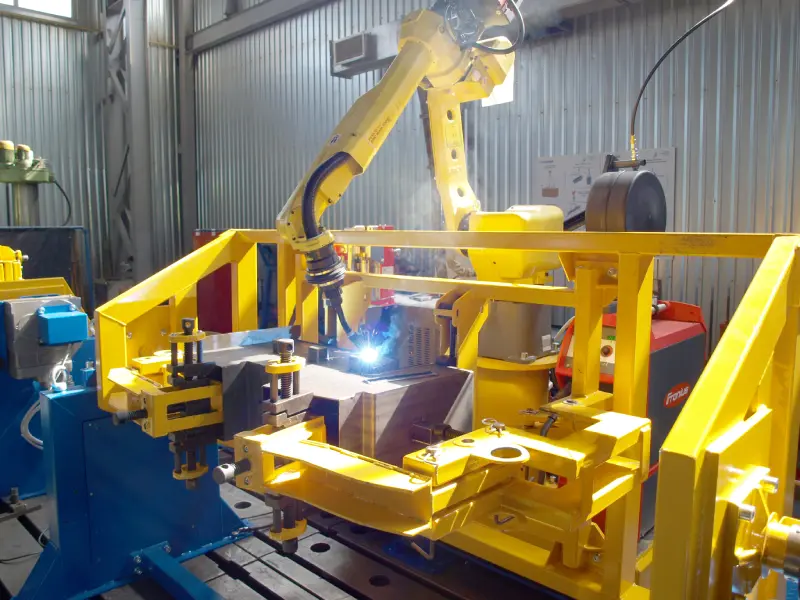

The robotic welding system is designed for welding the combustion chambers and outer jackets of solid-fuel and gas-fired boilers, for both domestic and semi-industrial applications.

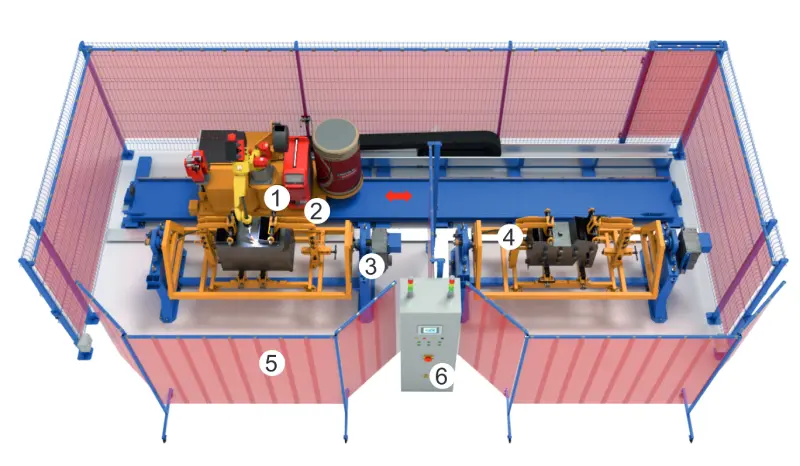

| 1. Welding robot | 4. Clamping device |
| 2. Set of welding equipment | 5. Safety guard |
| 3. Welding positioner | 6. Control panel with electrical equipment |
Technical characteristics:
| 1. | Overall dimensions, mm | 7735х3575х2245 |
| 2. | System control | touchscreen control panel |
| 3. | Robot brand | Fanuc |
| 4. | Welding power source | Fronius |
Safety
Laser barrier to protect staff
Prevents staff from entering potentially hazardous areas during machine operation. If the safety border is crossed, the barrier stops the machine operation
Barrier

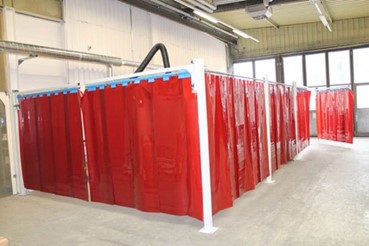

The enclosure consists of a metal structure and curtains for protection against ultraviolet rays. Sensors are installed on the barrier to switch off the complex in case of human intrusion in order to exclude injuries to people.
SPTA kit
Extended SPTA kit for 12 months of operation
Includes a set of components which require regular replacement, providing minimum 12 months of operation.
