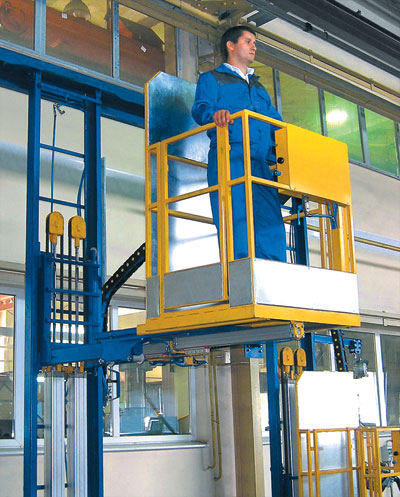

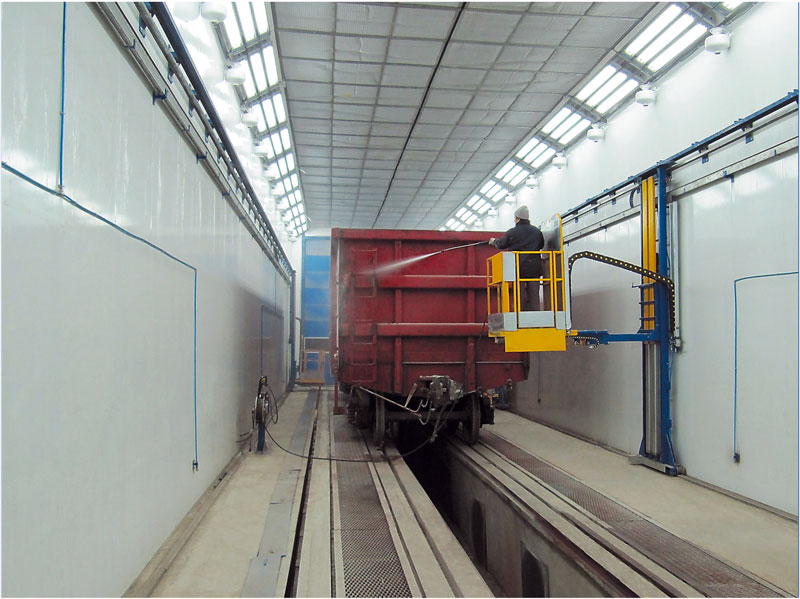

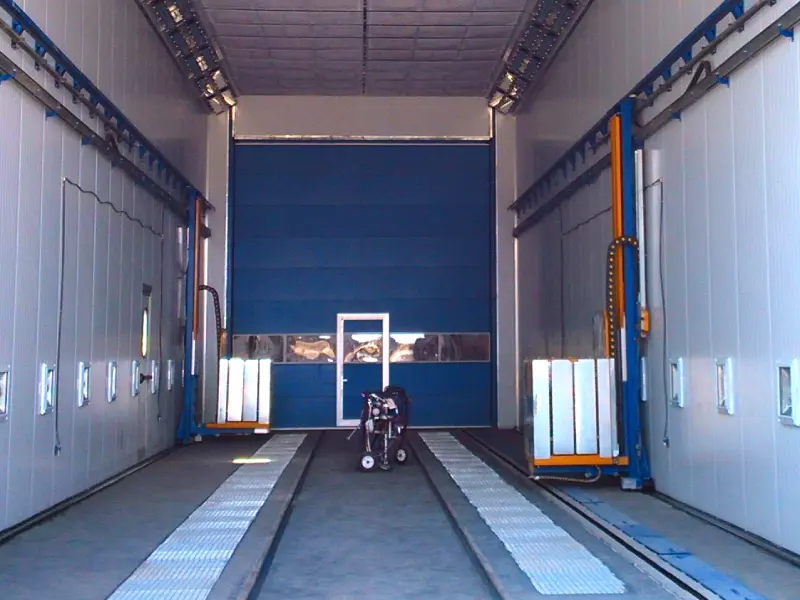

Pneumatic lifting platforms are designed for lifting, longitudinal, and transverse movement of a single operator with tools. They are used, among other applications, for painting operations inside spray and drying booths, providing safe and comfortable working conditions.
Safety
- Reliable and fail-safe operation both from inside the cage and via external controls.
- Fully enclosed operator cabin providing a stable working platform and sufficient space for operation, including the use of breathing equipment.
- Pneumatic control on all three axes eliminates the risk of ignition.
- Certified and approved according to international safety standards.
- Multiple independent safety systems integrated into the design.
Efficiency
- Operator-controlled movement along all three axes at any working height.
- Ergonomic and intuitive control elements.
- Air supply points inside the cage for tools and spray guns.
- Simple operation improves user comfort and overall productivity.
Reliability
- Easy maintenance due to the use of standard, easily replaceable components.
- Over 20 years of continuous product development ensuring compliance with current safety regulations.
- Hundreds of units successfully delivered and proven in operation for durability and dependability.
Specifications
| Cage horizontal move, mm | 1300 |
| Cage vertical move, mm | 4000 |
| Max. load capacity, Kgs, | 150 |
| Recommended air pressure, atm | 6 – 8 |
| Air consumption, l/min | 350 |
| Horizontal move mechanism | Pneumatic |
| Vertical move mechanism | Pneumatic |
