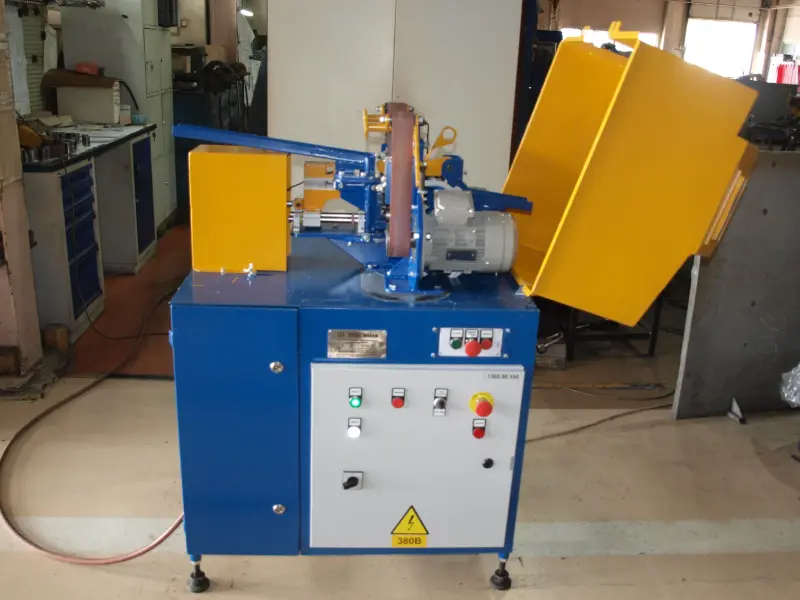

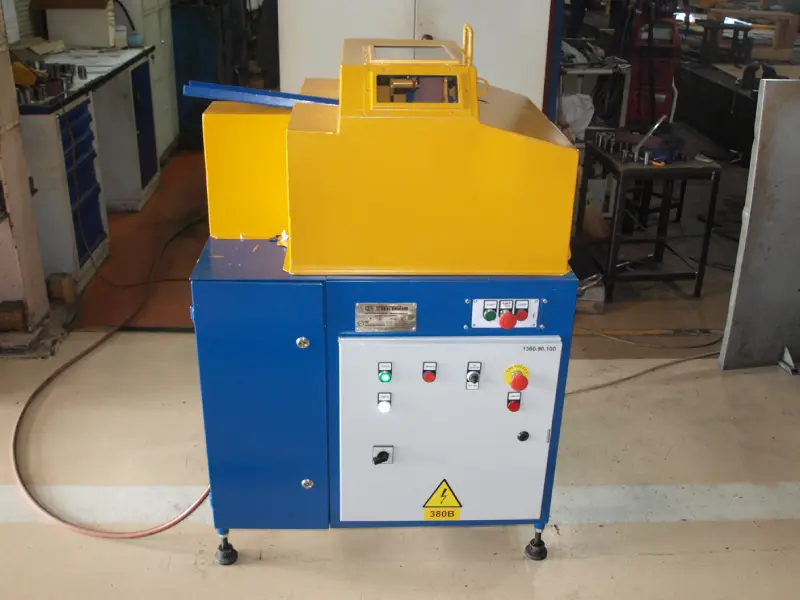

The unit is designed for cleaning the end faces of bearing rollers used in axle box assemblies during maintenance and repair operations. The feeding of rollers into the cleaning zone, the grinding of end faces, and the accumulation of rollers after cleaning are performed automatically.
Technical specifications:
| 1. | Cleaning time per roller, sec | 3-8 |
| 2. | Grinding belt speed, m/s | 12,8 |
| 3. | Maximum thickness of material removed, µm | 5 |
| 4. | Maximum number of rollers in the loading tray, pcs | 16 |
| 5. | Installed power, kW | 2,2 |
| 6. | Grinder belt 50×915, pcs | 2 |
| 7. | Supply voltage, V | 380 |
| 8. | Supply frequency, Hz | 50 |
| 9. | Operating pressure in supply network, MPa | 0,4 |
| 10. | Air consumption, m³/h | 0,76 |
| 11. | Overall dimensions (L×W×H), mm | 935х720х1300 |
| 12. | Unit weight, kg | 150 |
