Integrated automated line for weighing, length measuring, stamping and marking of pipes

Integrated automated line for weighing, length measuring, stamping  and marking of pipes Integrated automated line for weighing, length measuring, stamping  and marking of pipes

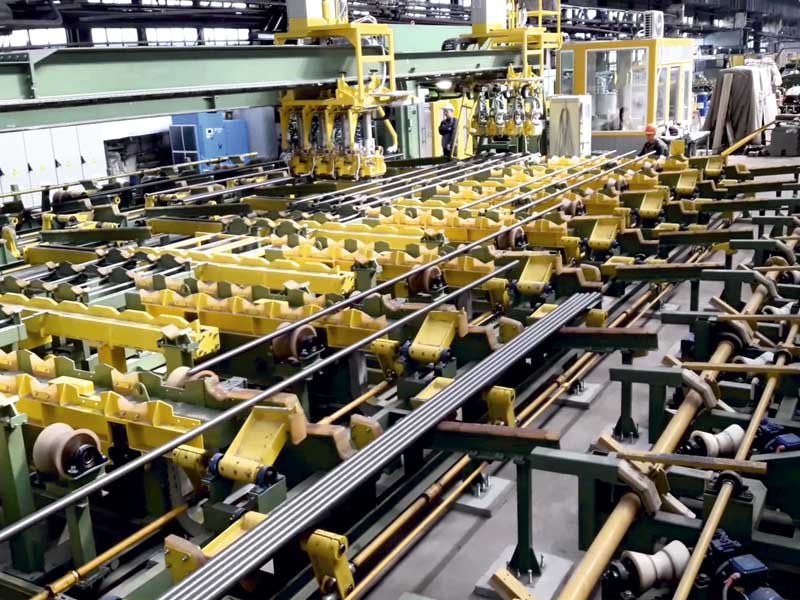

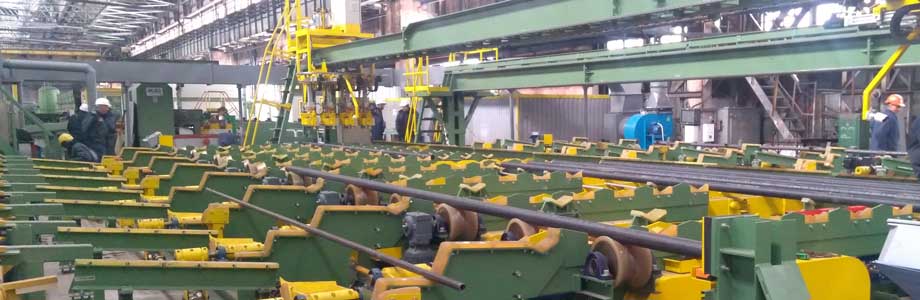

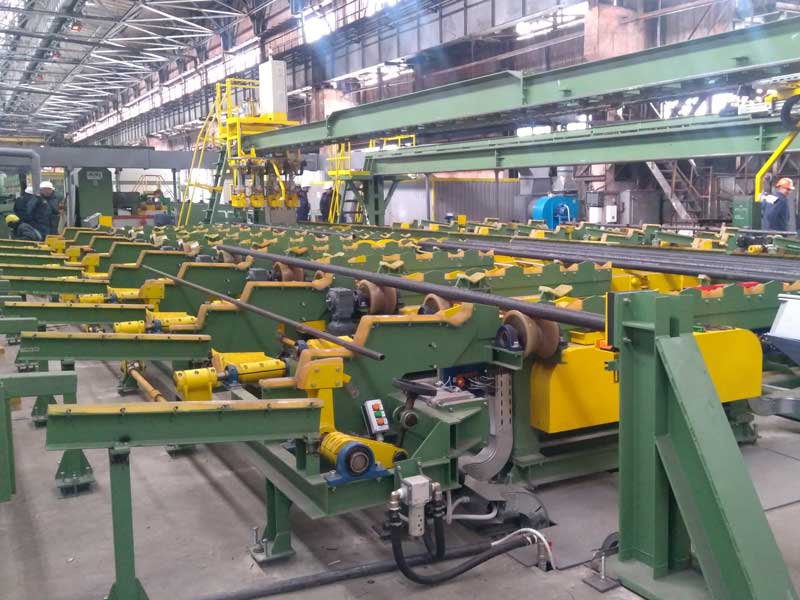

The transport mechanization plant consists of a set of equipment that provides weighing by the piece, measuring the pipes length, applying a background stripe and stamping on the front and rear end of pipes as well as longitudinal marking of pipes.

Video

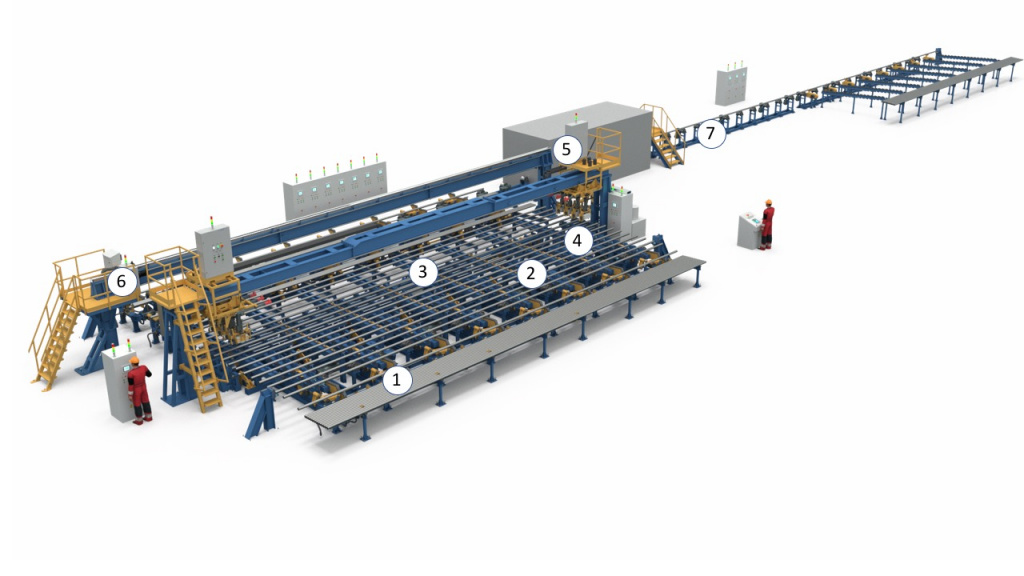

1. Sloping grid  with a transfer device

2. Transfer device for 7 items
3. Transfer device for 8 items
4. Scales

5. Gantry for marking and measuring

6. Gantry for jet marking
7. Rolling table


Specifications:

1.

Pipes specification :

- pipe length, mm

6000 ÷ 14630

Pipe diameter, mm

ø21 ÷ ø141,3

Wall thickness, mm

2,5 ÷ 12

2.

Plant capacity :

- at pipe length 6000 mm, pcs/min

8

- at pipe length 12000 mm, pcs/min

5
