Stand for dump truck semitrailer frames alignment

Stand for dump truck semitrailer frames alignment

Stand for dump truck semitrailer frames alignment Stand for dump truck semitrailer frames alignment

The stand is designed for alignment of transversal, longitudinal deformations, semitrailer frames twist deformations.

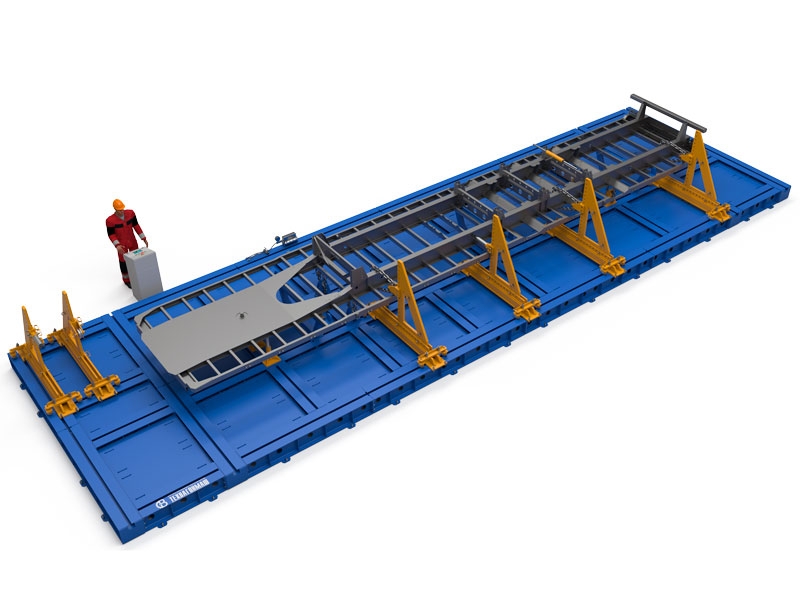

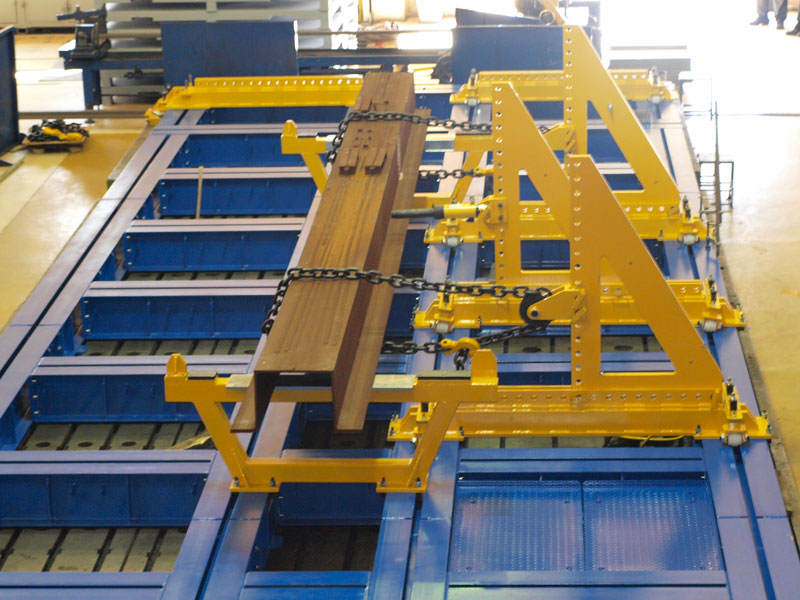

The stand provides straightening of frames of different dimension types and represents a floor frame with the item mounted on it and equipment for straightening. The frame straightening is performed by means of hydraulic fixtures.

The stand is fitted with laser meters for frame geometry control.

The stand can be used for the manufacture of new products as well as in auto repair companies.


Stand type

Flexible

Item straightening drive

Hydraulic

Straightening force (max.), t

20

Hydraulic pump drive air work pressure, MPa

0,17…0,86

Pneumatic hydraulic pump work pressure ( max.), MPa

60

Stand overall dimensions, mm

15210х4870х1840

Weight, kg

14056
