Dump truck underbody control and straightening stand

Dump truck underbody control and straightening stand

Dump truck underbody control and straightening stand

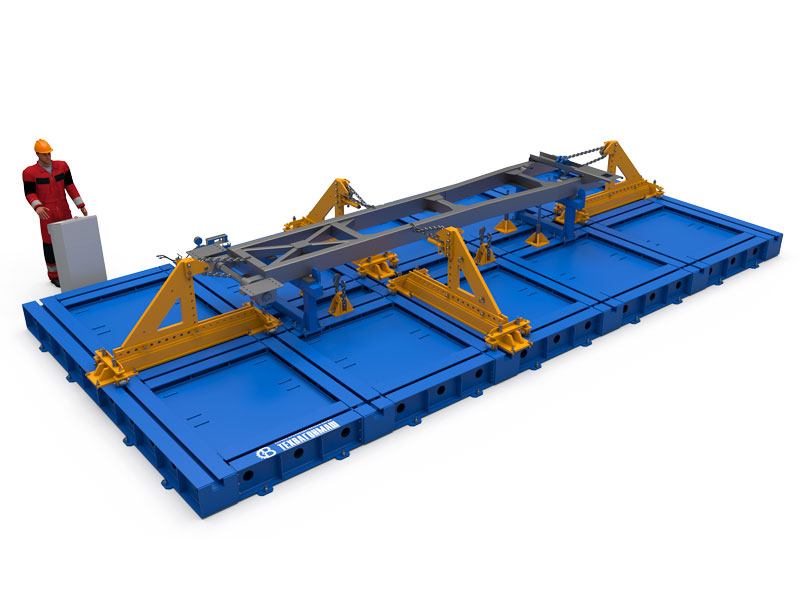

The stand is designed for installation, measurement and straightening (if necessary) of a dump truck underbody.

The underbody straightening is performed by means of hydraulic fixtures.

The stand is fitted with laser meters for frame geometry control.

The stand can be used for the manufacture of new products as well as in auto repair companies.


Stand type

Multiourpose

Item straightening drive

Hydraulic

Straightening force (max.), t

10

Hydraulic pump drive air work pressure, MPa

0,17…0,86

Pneumatic hydraulic pump work pressure (max.), MPa

60

Stand overall dimensions, mm

8650х4310х1280

Weight, kg

8212
