Robotic welding system facilitates a range of technological operations related to robotic welding of trailed vehicle assemblies.

Video

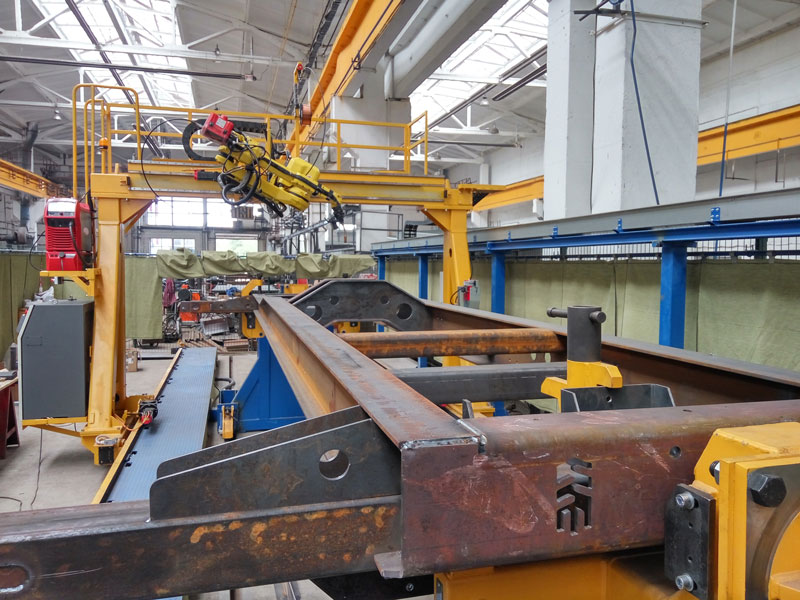

Robotic welding system facilitates a range of technological operations related to robotic welding of trailed vehicle assemblies:

- two rotators for robotic welding;

- four adjustable changeable fixtures;

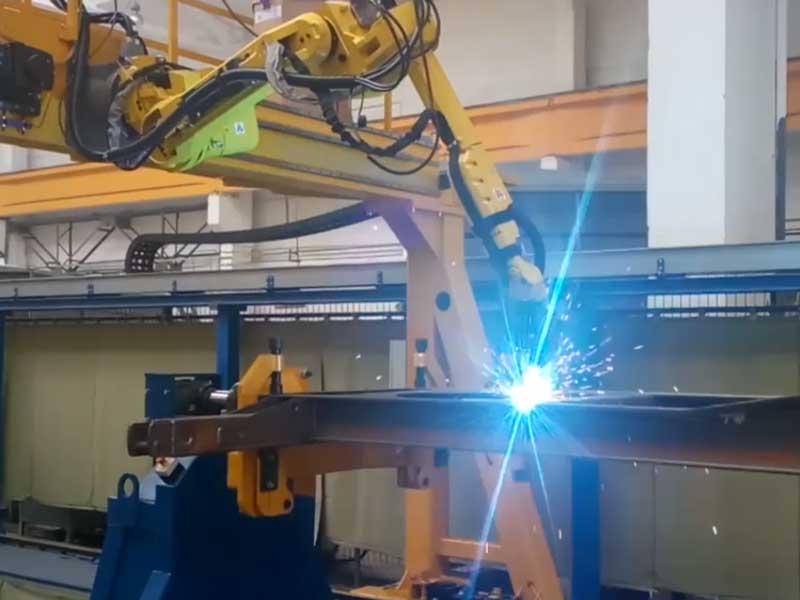

- a welding robot;

- a gantry complete with guide rails;

- robotic welding set with torch cleaning device;

- safety guard;

- electrical equipment.

Specifications:



1.

Welding robot

Fanuc AM 100iC/8L,

Welding robots, pcs.

1

2.

Rotators for robotic welding

2 pcs.

Carrying capacity, kg (max)
Rotator type

4000
two-column

3.

Changeable fixture for robotic welding



Quantity of changeable fixtures, pcs.

4

4.

Welding set for robotic welding with torch cleaning device

TPS 400i, Fronius

Welding current range, А

5-400

Type of welding

MIG/MAG

Torch cooling system

liquid cooling

Torch cleaning system

Robacta Reamer V Easy

5.

System to search for the product in space, track the trajectory of welds and adjust the parameters of welding modes

1 pc.

Tracking system type

laser

6.

Overall dimensions of the station, mm

32000х2500х2000
