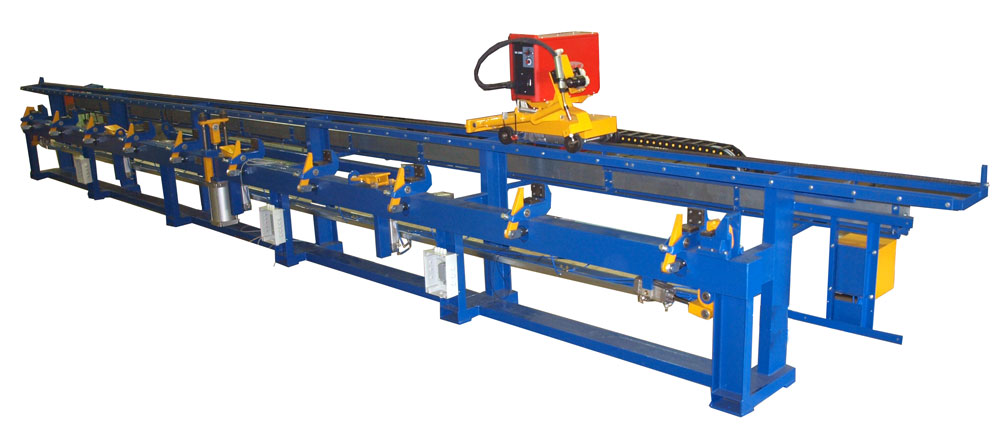

Welding stand for gondola car side wall top chord
The stand is designed for assembly of a gondola car side wall top chord and its welding in the automatic mode with pre-deflection.
Videos
Specifications:
|
1. |
Overalled dimensions of the item to be assembled, mm |
11185х140х110 |
|
Weight, kg |
267 |
|
|
2. |
Welding plant |
|
|
Welding torch transfer mechanism |
trolley |
|
|
Trolley transfer drive |
electromechanical |
|
|
Drive power, kW |
0,18 |
|
|
Torque on the wheel shaft, N-m |
77 |
|
|
Gear ratio of hte drive |
99 |
|
|
Number of revolutions of the driven wheel,rpm |
14 |
|
|
Cruising speed, m/h |
316 |
|
|
Welding speed, m/h |
40 … 120 |
|
|
Welding speed regulation principle |
frequency |
|
|
Seam type |
butt-joint |
|
|
Number of seams to be welded, pieces |
1 |
|
|
Seam tracking system |
mechanical |
|
|
Feeder type |
VR3300 |
|
|
Welding method |
gas-shielded |
|
|
Power source type |
VS4000 |
|
|
3. |
Assembly stand |
|
|
Chord vertical fixing mechanism |
pneumatic |
|
|
Chord transversal orientation mechanism |
pneumatic |
|
|
Chord deflection mechanism |
pneumatic |
|
|
Deflection force, kg-force |
1800 |
|
|
Deflection value,mm |
230 |
|
|
4. |
Air working pressure, MPa |
5 … 6 |
|
5. |
Air consumption, m3/h |
3,6 |
|
6. |
Overall dimensions, mm: |
13200х1145х2000 |
|
7. |
Weight, kg |
2560 |
