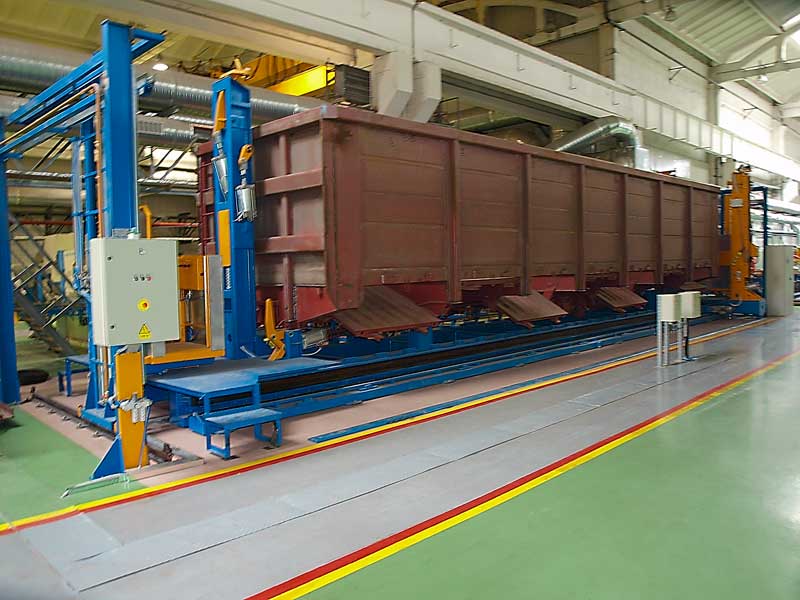

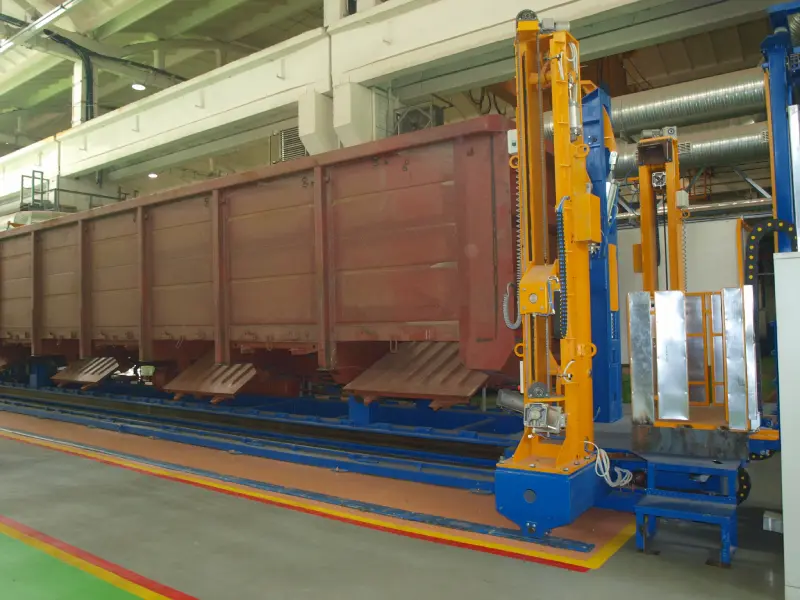

Assembly and welding stand for gondola car body
This stand provides the set of productio operations on gondola car body assembly.
The componenets of the body are installed to the stand according to production process and tacked to each other. Than all “bottom” position seams are welded. The ready unit is unloaded from the stand and transferred to the next working place.
Technical specifications
|
1. |
Overall dimensions of the product: |
13100х3125х2572 |
|
Weight, kg |
13380 | |
|
2. |
Load capacity of the stand, kg |
20000 |
|
3. |
Clamping parts drive |
Pneumatic |
|
4. |
Side column: | |
|
number of columns, pcs. |
2 | |
|
vertical travel of lateral clamp, mm |
2700 | |
|
columnt travel speed, m/min |
10 | |
|
drive |
electromechanical | |
|
power, kW |
2,2 | |
|
5. |
Automated carriage: | |
|
basket moving-out, mm |
1160 | |
|
basket vertical travel, mm |
2000 | |
|
max. workload, kg |
150 | |
|
horizontal travel mechanism |
pneumatic | |
|
vertical travel mechanism |
пневматический | |
|
6. |
Installed capacity, kW |
4,76 |
|
7. |
Overall dimensions, mm |
18820х4770х4096 |
|
8. |
Weight, kg |
17110 |
