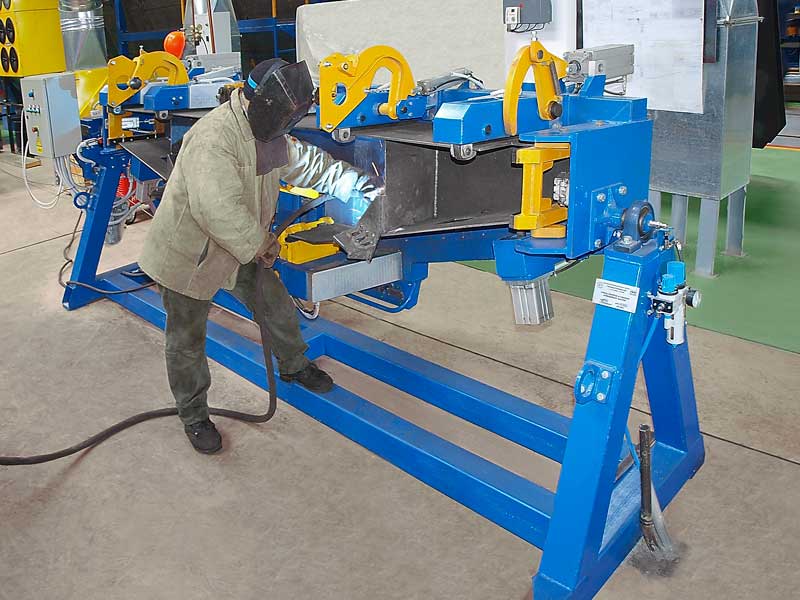

Wagons сross beam welding fixture

Assembly and welding fixtures for cross beams of freight car frames are designed for the assembly and welding of kingpin beams and intermediate end beams of freight car frames.

The fixtures ensure precise positioning and clamping of the beam elements before welding. This guarantees the accuracy and reliability of the welded joint, which is crucial for the safety and durability of freight cars.

Assembly fixtures for cross beams of freight car frames typically feature an adjustable design, allowing them to be adapted for different car models. To provide convenient access to the weld seam, the beam assembly fixture can be integrated into a positioner.

The advantages of using assembly fixtures for cross beams of freight car frames are evident. Firstly, they reduce the time and effort required for assembling car frames, which leads to increased productivity and cost savings. Secondly, the use of these fixtures ensures high precision and quality of assembly, which is essential for the safety and reliability of freight cars.

Our assembly fixtures for cross beams of freight car frames represent modern and reliable equipment, manufactured using high-quality components from leading European suppliers.

The control system of the fixture is based on relay-contactor equipment. Operation of the mechanisms is carried out using buttons on the control cabinet and on the telpher post.

Principle of Operation of the Assembly and Welding Fixture for Cross Beams.

The components are fed into the assembly fixture, where they are clamped and welded. After welding, the beam is released from the clamps and transferred to the next technological operation.

Specifications:

1. Clamp drivepneumatic and mechanical
2. Compressed air pressure, MPa0,6
3. Compressed air consumption, m3/min0,25

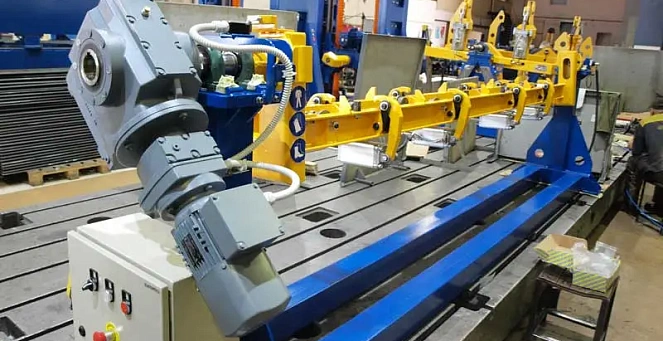

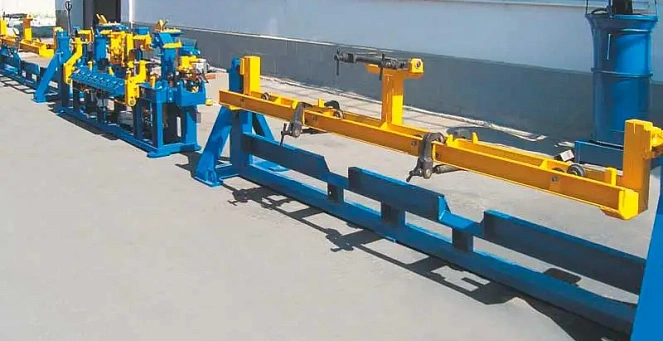

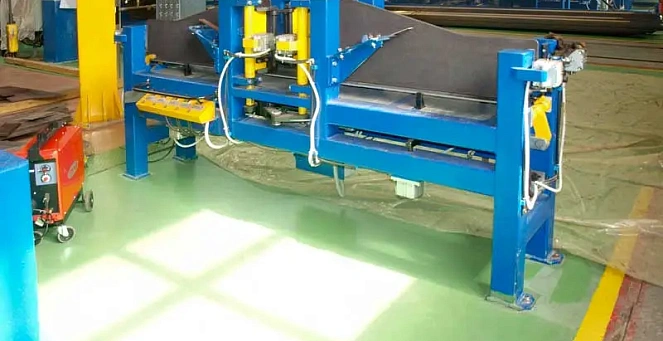

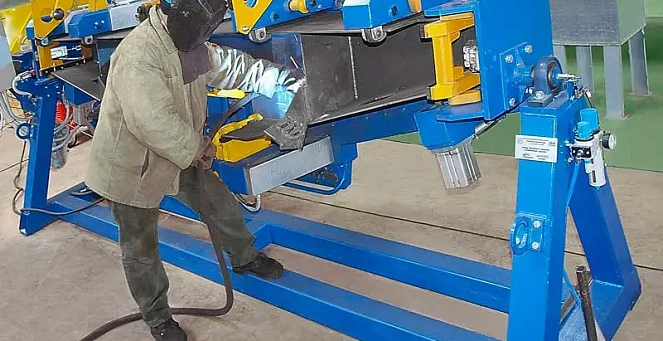

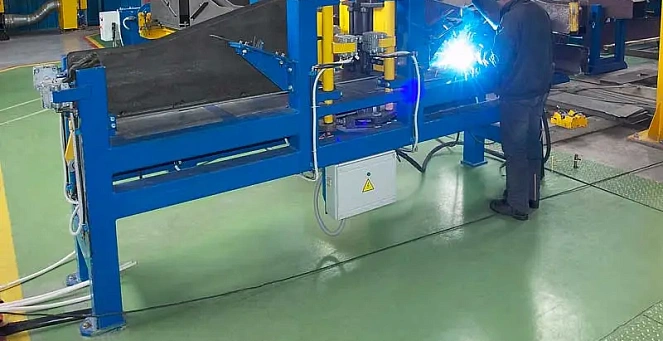

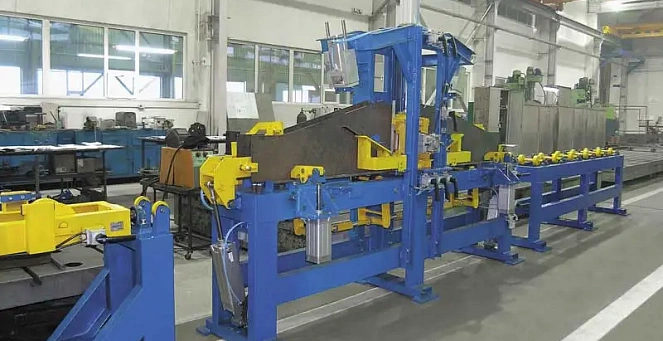

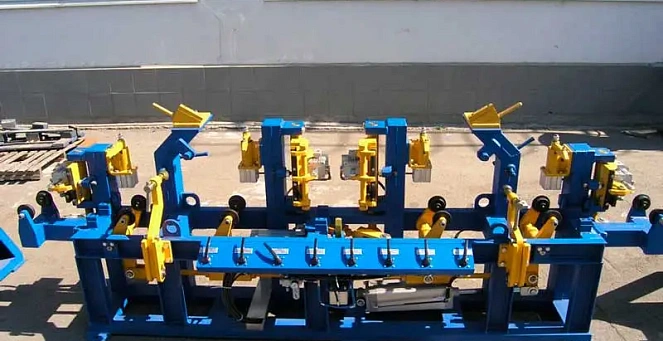

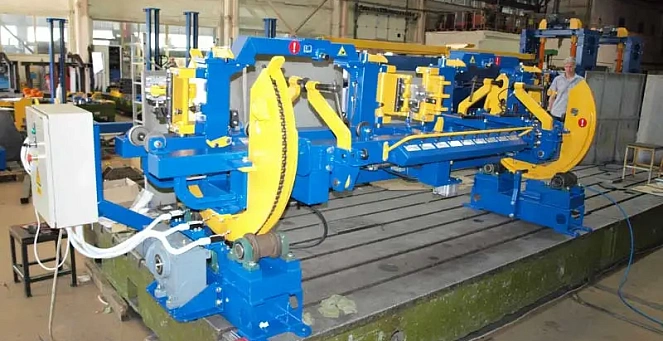

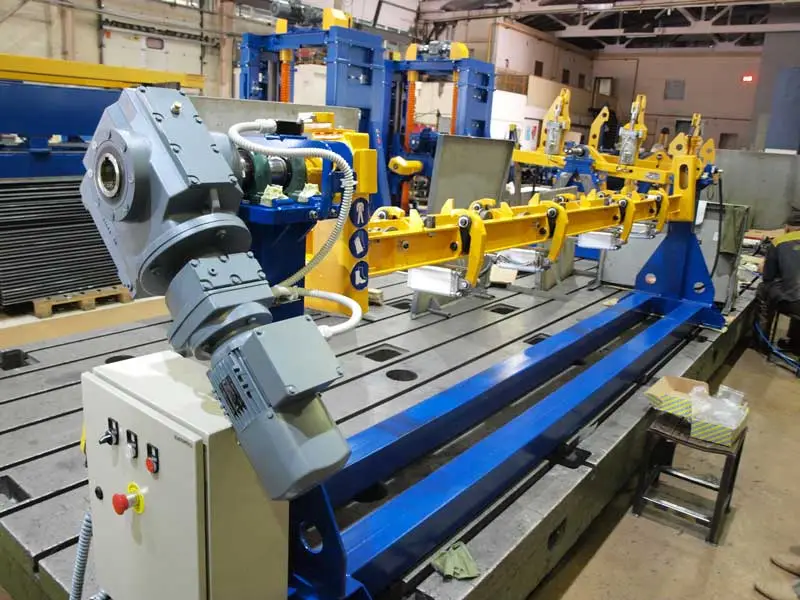

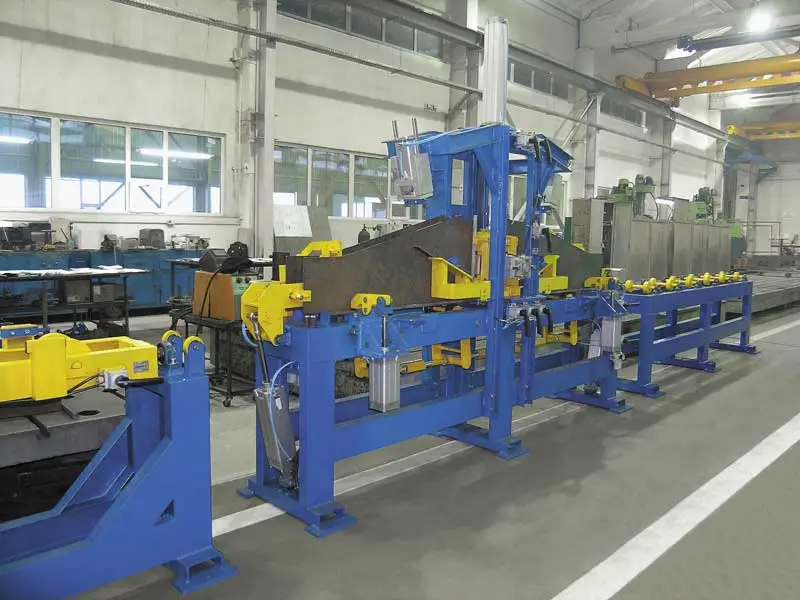

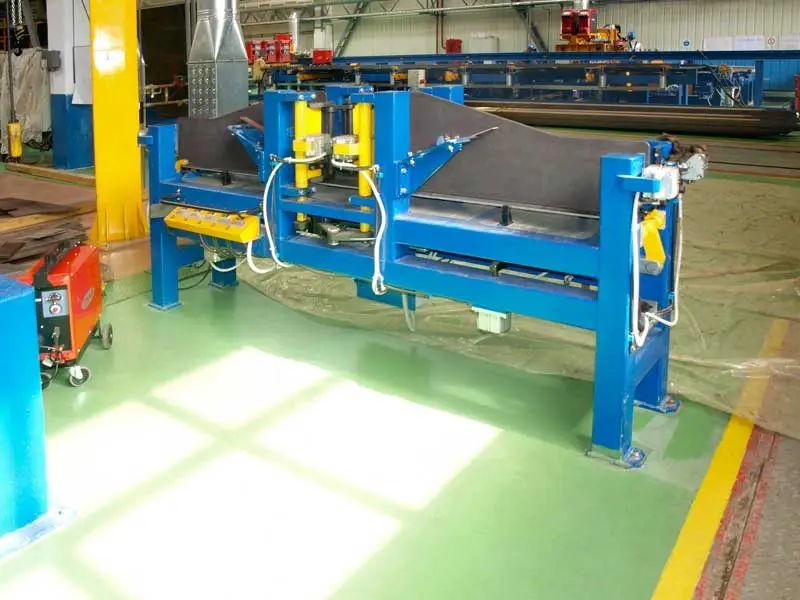

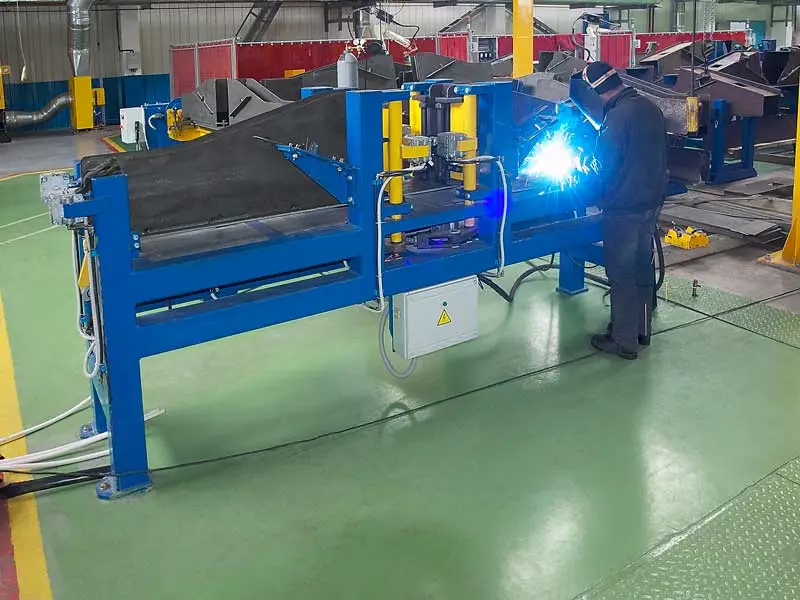

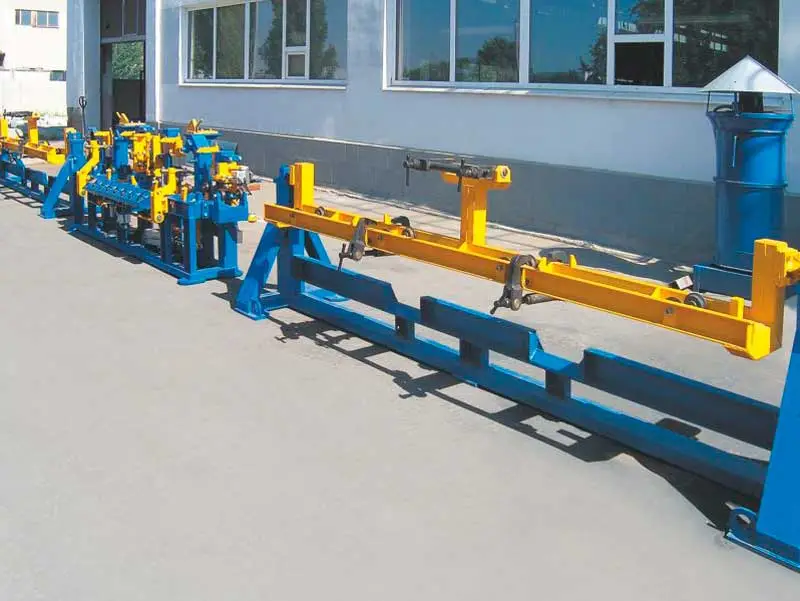

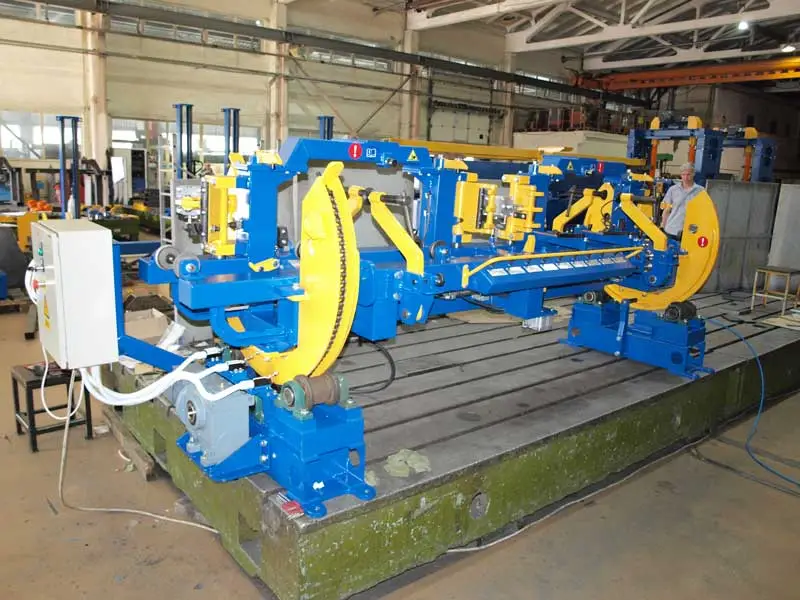

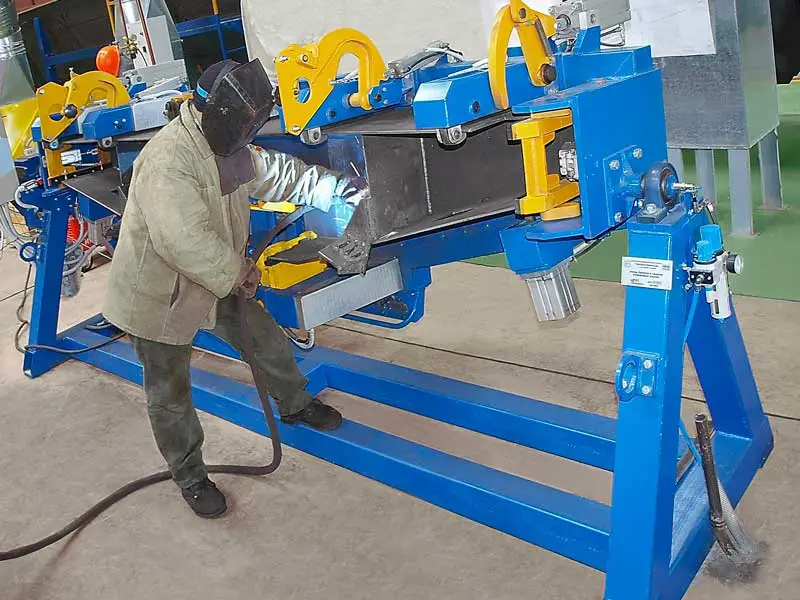

Photos of equipment
