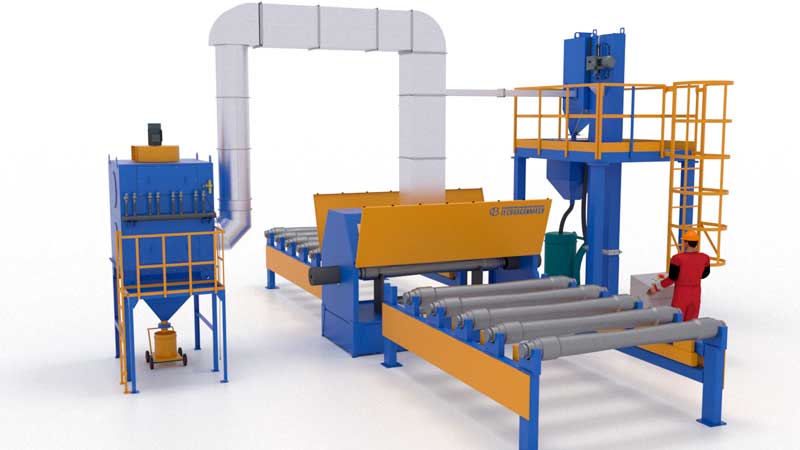

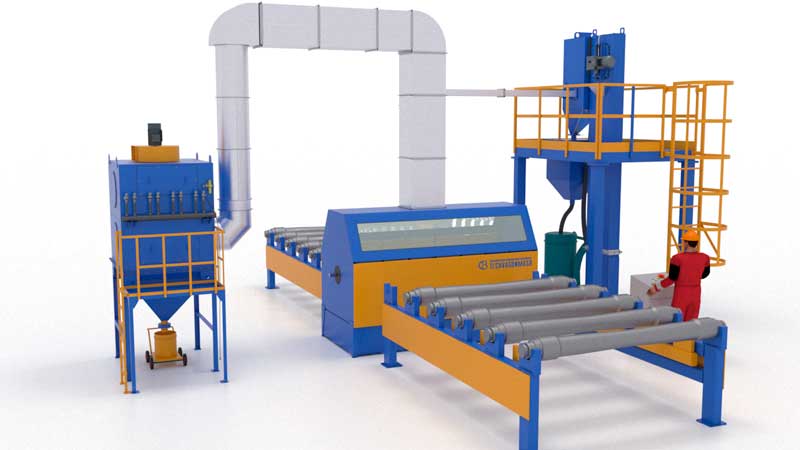

Shotblasting equipment for railroad axles machining

Shotblasting equipment for railroad axles machining Shotblasting equipment for railroad axles machining

The plant is designed for preparation of the surface of the axles central part before painting.

Specifications:

1.

Chamber type

Automatic batch type

2.

Efficiency during cleaning by the nozzles 9.5 mm and pressure 0,8МPа, m2/h

15

3.

Compressed air flow (at 8 atm), m3/min

6,2

4.

Compressed air pressure, atm

7-8

5.

Shot collection mechanism

Screw conveyor

6.

Elevator type

Band bucket

Unloading type

centrifugal

7.

Blast machine type

SCWB-2452

Manufacturer

Clemco Germany

8.

Loading manipulator

Drive type

Pneumatic

Load capacity, kg

800

9.

Number of supply mains phases

3

10.

Unloading manipulator

Drive type

Pneumatic

Load capacity, kg

800

11.

Installed capacity, kW

55
