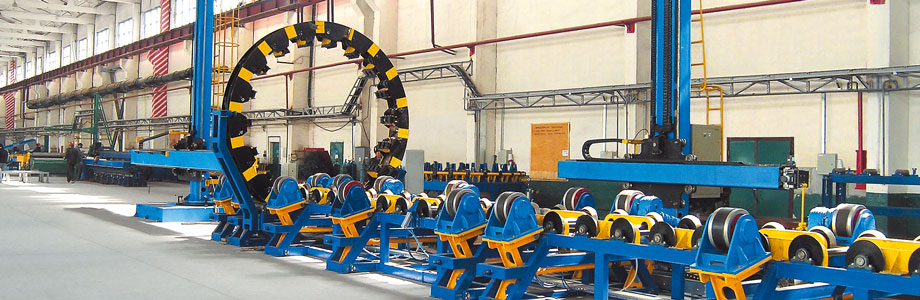

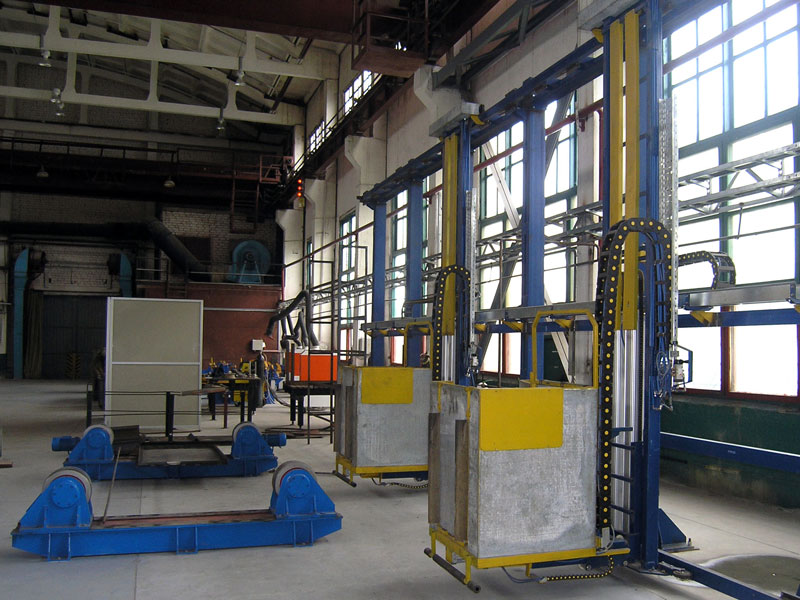

Stand with carrying rollers for assembly and welding of tank vessel elements

Stand with carrying rollers for assembly and welding of tank vessel elements

Stand with carrying rollers for assembly and welding of tank vessel elements
The stand is designed for welding of the tank elements.
The stand represents a set of equipment providing installation and fixation of the elements on the tank for its following welding.


Specifications:



1.

Overall dimensions of the item to be assembled, mm

2410х2872

2.

Tank elements fixation mechanism

mechanical

3.

Horizontal travel of the bogie basket (moving out), mm

800

4.

Mechanized bogie, quantity, pieces

2

Basket travel height, mm

360…3360

Carrying capacity, kg

150

Recommended air pressure, MPa

0,6 … 0,8

Air consumption (max) for travel, l/min

1200

Horizontal travel mechanism

pneumatic

Vertical travel mechanism

pneumatic

5.

Compressed air consumption, m3/min

1,5

6.

Installed capacity, kW

2,2

7.

Overall dimensions, mm

10400х5223х4859

8.

Workpiece weight, kg

5900
