Stand for hydraulic and pneumatic tests of vessels

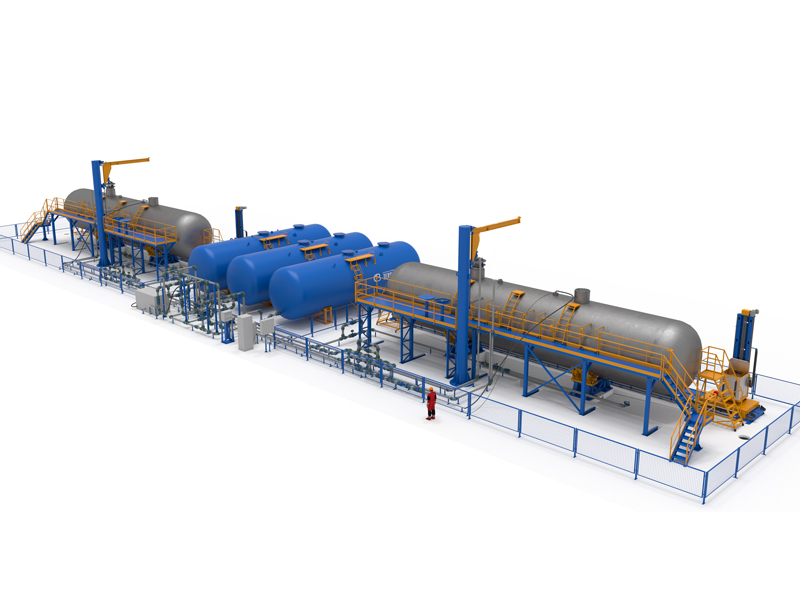

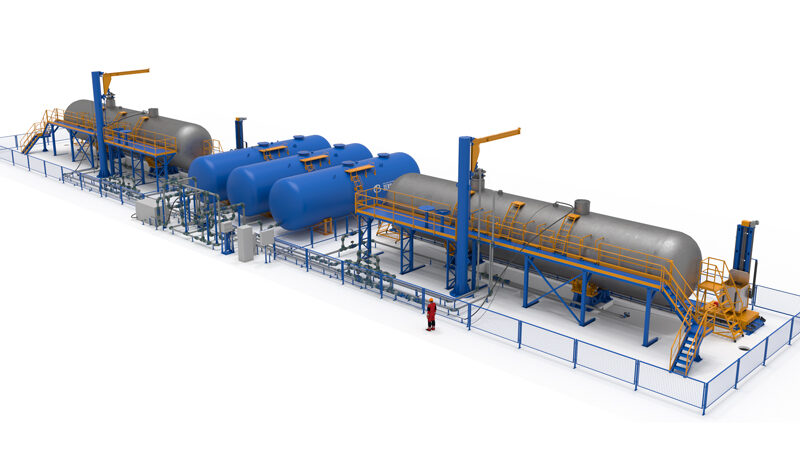

Stand has been designed for hydraulic and pneumatic tests of various tank-car vessels.


Specifications:

1.

Limit dimensions of the product:

length, mm

up to 16000

diameter, mm

2400 - 3260

2.

Maximal weight of the product, t

up to 30

3.

Hydraulic system

closed, independent

4.

Filling of tank with water

High-duty low pressure pump

Pump output, m3/h

100 – 150

Power, kW

11

5.

Water discharge

High-duty low pressure pump

Pump output, m3/h

100 – 150

Power, kW

11

6.

Water basin

horizontal

7.

Basin volume, m3

70
