Turnover device with lifting centres for tank container front frame welding

Turnover device with lifting centres for tank container front frame welding

Turnover device with lifting centres for tank container front frame welding

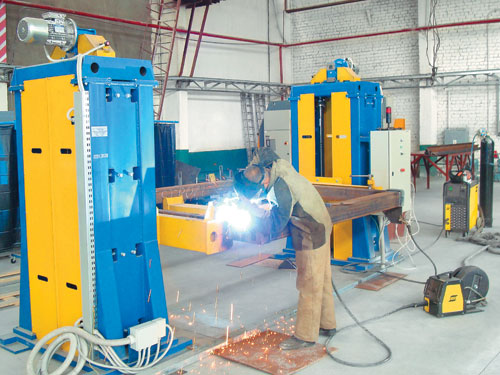

The turnover device is designed for the mounting of the container (item) front frame in the position suitable for welding operations.

Specifications:

1.

Carrying capacity, kg

3500

2.

Working vertical travel, mm

1000

3.

Rotation axis height, mm

750...1750

4.

Overall dimensions of the turned item, mm

2590х2438х185

5.

Lifting mechanism

Lift drive

electromechanical

Lifting speed, m/min

1,6

Total power, kW

3,0

6.

Rotation mechanism:

Rotation drive

electromechanical

Item rotation speed

2

Rotation angle, at 1750 mm height, degree

360

Power, kW

1,5

7.

Turnover device overall dimensions

5080х1500х2970

8.

Turnover device weight, kg

3770
