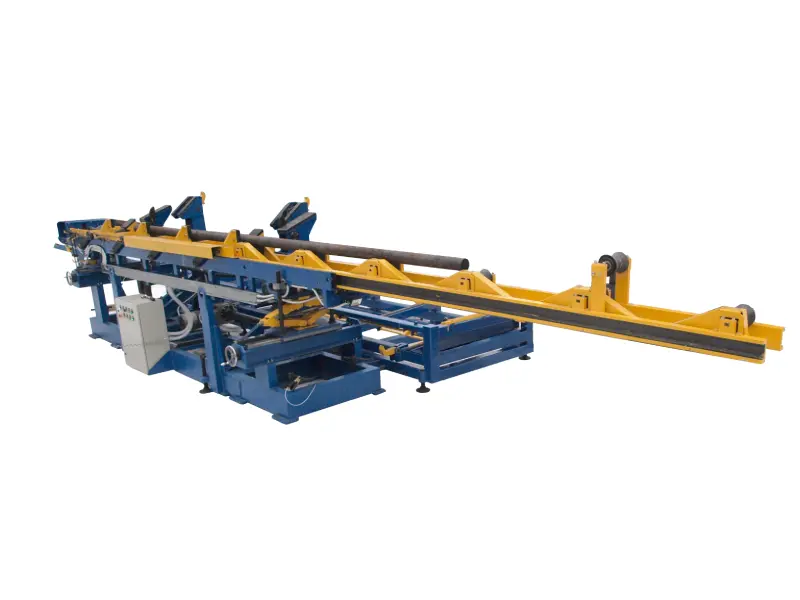

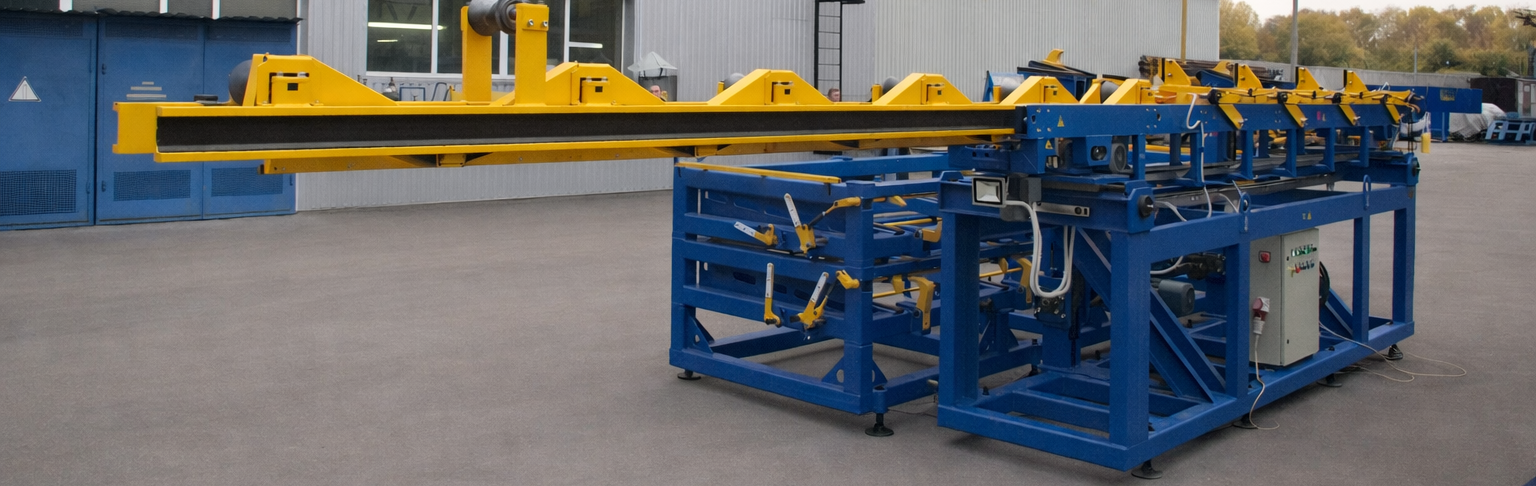

Rod Loading Machine for Mills is industrial equipment designed for automated feeding of metal rods into rod and ball mills. The machine is used in mining, mineral processing and metallurgical plants to improve productivity, reduce downtime and enhance operational safety.
The equipment provides controlled and uniform rod loading and can be integrated into existing milling lines and automated control systems.
Equipment Applications
- Mining and processing plants;
- Metallurgical plants;
- Ore processing plants;
- Concentrate production;
- Ore processing.
Video
Benefits
- Rod loading machines are designed and manufactured for mills of various sizes and rods of different lengths and diameters;
- Customised layout according to the customer’s wishes is available;
- Fully automatic loading cycle (48 rods);
- Loading time per rod is no more than 30 seconds.
Operation principle
The rods (stacked 12 per cartridge) are fed one by one to the rod feeder. After unloading the first cartridge, the process is repeated for the remaining three cartridges. Then the cartridges are removed one by one and the next 4 loaded cartridges are installed in their place.

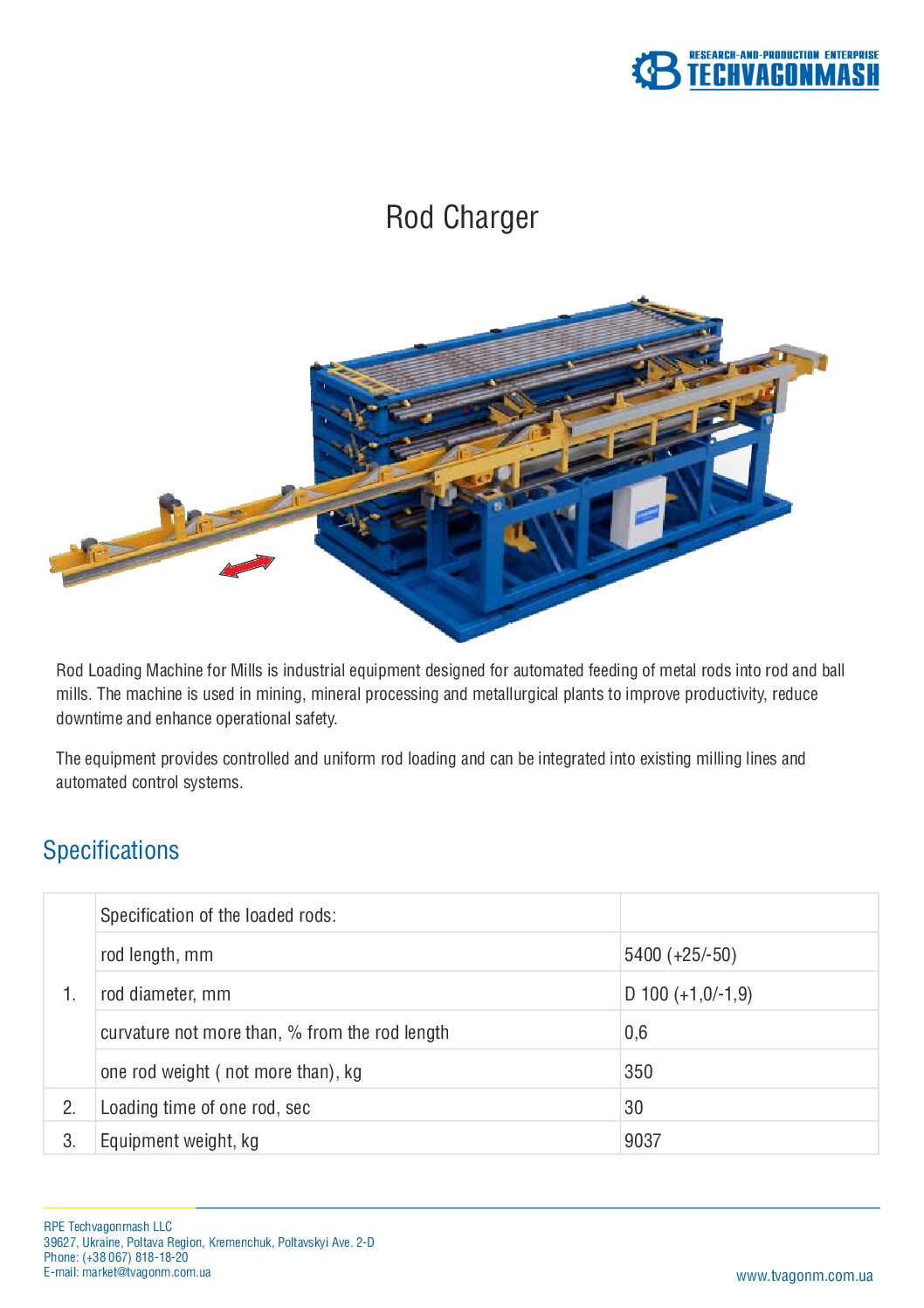

Specifications:
| 1. | Specification of the loaded rods: | |
| – rod length, mm | 5400 (+25/-50) | |
| – rod diameter, mm | Ø100(+1,0/-1,9) | |
| – curvature not more than, % from the rod length | 0,6 | |
| – one rod weight ( not more than), kg | 350 | |
| 2. | Temperature mode in the shop, °С | from -10 to +35 |
Is special training required for staff?
Yes, personnel must undergo brief instruction or training to operate the unit safely and effectively. Remote training or on-site training during commissioning are available.
Is there a warranty and post-warranty service?
Yes, we provide a warranty on all equipment for up to 24 months, as well as service and post-warranty maintenance, including the supply of spare parts.
What does the installation supervision and commissioning package include?
The service package includes:
- our specialist's presence during equipment installation by the client's representatives for a specified period of time;
- organization and supervision of the installation process;
- commissioning and configuration of equipment parameters.
What maintenance does the equipment require?
Our equipment is highly reliable and requires little maintenance. Maintenance includes regular lubrication and inspection of fasteners and controls. We provide instructions and training for your staff.
