Sheet Metal Storages System (two columns type)

Sheet Metal Storages System (two columns type)

Automated storage for sheet metal products is a modern solution which allows to optimise shop floor logistics, automate the stock control system and significantly reduce storage space.

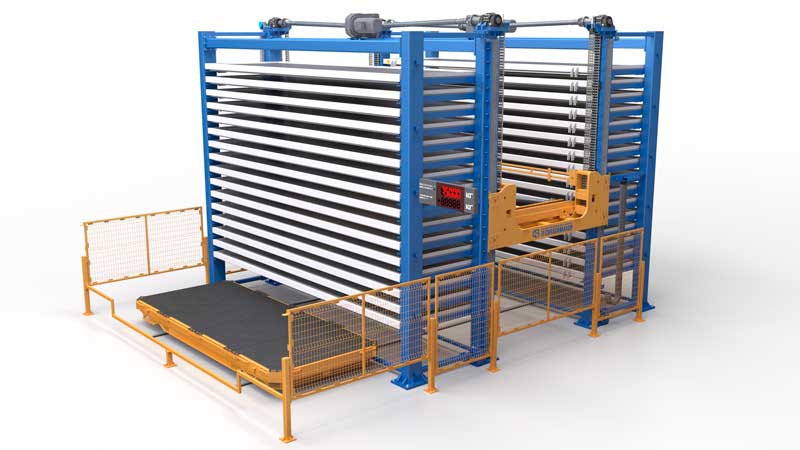

Automated double-column storage system is a complex of equipment consisting of two columns, in which cassettes with rolled metal products are placed. A crossbeam is used to lift and transfer the cassettes between the cells. The crossbeam works in automatic mode.

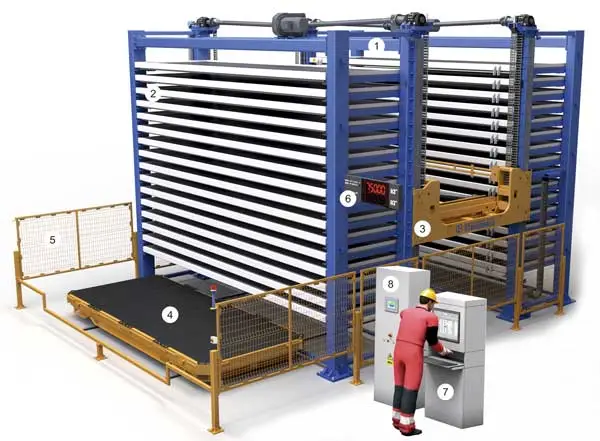

1. Column
5. Safety fence
2. Cassette 6. Information display
3. Traverse 7. Operator console
4. Trolley 8. Control cabinet


Advantages of automated double-column sheet metal storage facilities:


1. Maximum storage density: Automated storage systems make the most efficient use of space, so that a considerable amount of storage space can be saved.

2. Quick access to materials: By automating processes, sheet metal is available to operators within seconds. The time required to find and prepare the necessary material is considerably reduced.

3. Improved accuracy and reliability: Automated storage systems ensure high precision in the positioning and material handling. The possibility of errors and damage to the sheet metal product is minimised.

4. Work process optimisation: Automated control and monitoring of storage and handling processes can significantly reduce the workload of warehouse staff. Employees can concentrate on more important tasks while the automated storage system carries out routine operations.

5. Improved safety: Automated storage systems are equipped with safety devices that monitor and control storage processes. This helps reduce the risk of accidents and material damage.

Our automated double-column storage systems offer advanced solutions for storing sheet metal products. We specialise in the design and installation of systems of this type, offering our customers tailor-made solutions to meet their specific needs.


Specifications:

Number of cassettes



Height of the storage system

( cassette 3200х1500)

Height of the storage system

 (cassette 4200х1700)

Height of the storage system

(cassette 6200х2100)

16





3970

18





4255

20

3900

3900

4540

22

4130

4130

4825

24

4360

4360

5110

26

4590

4590

5395

28

4820

4820

5680

30

5050

5050

5965

32

5280

5280

6250

34

5510

5510

6535

36

5740

5740

6820

38

5970

5970

6760

40

6200

6200

7105



Sheet metal storage systems are designed and manufactured in accordance with the requirements of a certain customer, his product range and working conditions.
