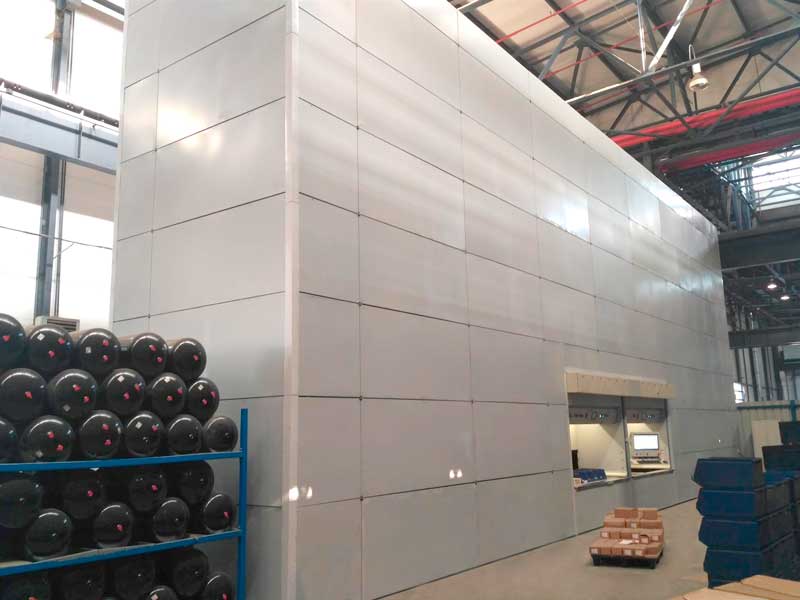

Automated storage system is intended for component parts receipt, storage and delivery at central factory storage with computer recording of parts transfer within the storage. The received components are located in special cassettes with the following storage in cells. Parts located in cassettes can be stored in boxes or in cassettes directly.
Boxes and component parts dimensions shall not exceed the cassette dimensions and height of 500mm.
The loading dimensions and components weight are controlled by sensors with automatic blocking of storage manipulator in case if permissible values are exceeded.
Permissible cassette loading weight – 500 kg.

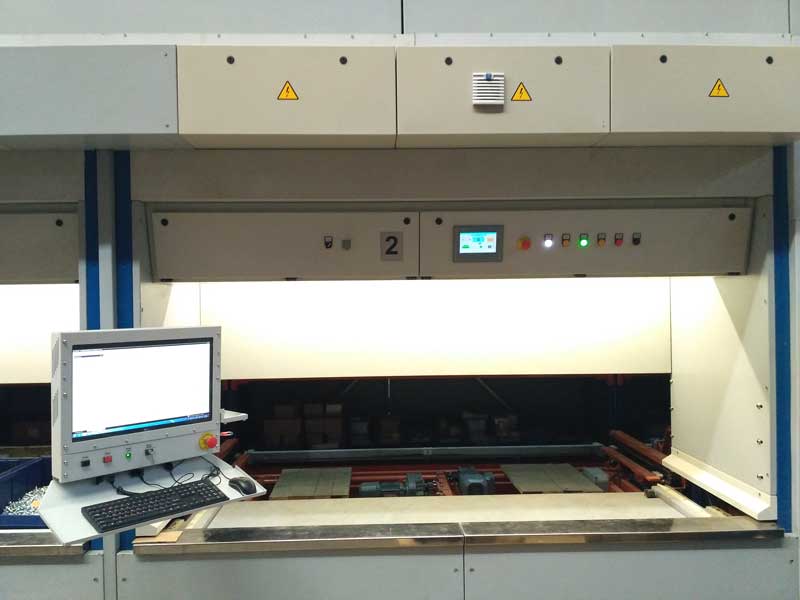

Operator controls the storage operation from the computer connected to the storage system. The stored products account is shown in general information base of central factory storage. The storage works automatically. There is a manual control mode for set-up.
Specifications:
| 1. | Number of rack rows | 2 pcs |
| 2. | Number of manipulators | 1 pcs |
| 3. | Number of delivery windows | 2 pcs |
| 4. | Storage volume | 114 m3 |
| 5. | Storage capacity, t | 58 t |
| 6. | Cassette capacity | 500 kg |
| 7. | Number of cassettes | 116 pcs |
| 8. | Cassette inner dimensions | 2450x800mm |
| 9. | Cassette loading height | 500 mm |
| 10. | Manipulator cross-beam lifting/lowering speed | 15.5 m/min |
| 11. | Manipulator travel longitudinal speed | 72 m/min |
| 12. | Cross-beam extractor extension speed | 13.4 m/min |
| 13. | Power consumption | 9kW |
| 14. | Overall dimensions of the storage system | 19120×3240×8000(H) mm |
