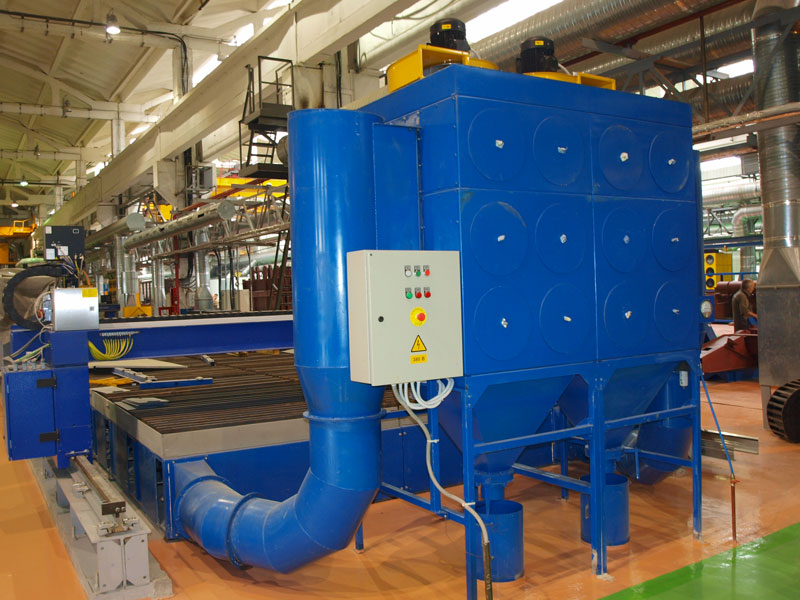

The filter unit is designed to clean the air from aerosols and dry non-explosive dust generated during gas metal cutting.
Specification:
| 1. | Quantity of fans, pcs | 2 |
| 2. | Total power, W | 8034 |
| 3. | Rotation speed, rpm | 2850 |
| 4. | Fan capacity, m³/h | 3000-10000 |
| 5. | Total pressure, Pa | 2500-14000 |
| 6. | Pre-filters: | |
| quantity, pcs | 4 | |
| maximum air flow, m³/h: | 3000х4 12000 | |
| resistance of clean cartridges, Pa | 50 | |
| filtration class | G4 | |
| 7. | Filter cartridges: | |
| quantity, pcs | 12 | |
| filtration surface area, m² | 12х12 144 | |
| material | polyester | |
| maximum air flow, m³/h: | 1000х12 12000 | |
| resistance of clean cartridges, Pa | 200 | |
| resistance of dirty cartridges, Pa | 1500 | |
| filtration class | F9 | |
| 8. | Pressure drop, Pa | 250-1500 |
| 9. | Nominal compressed air pressure, atm. | 6 |
| 10. | Сompressed air slip, m³/h: | 9 |
