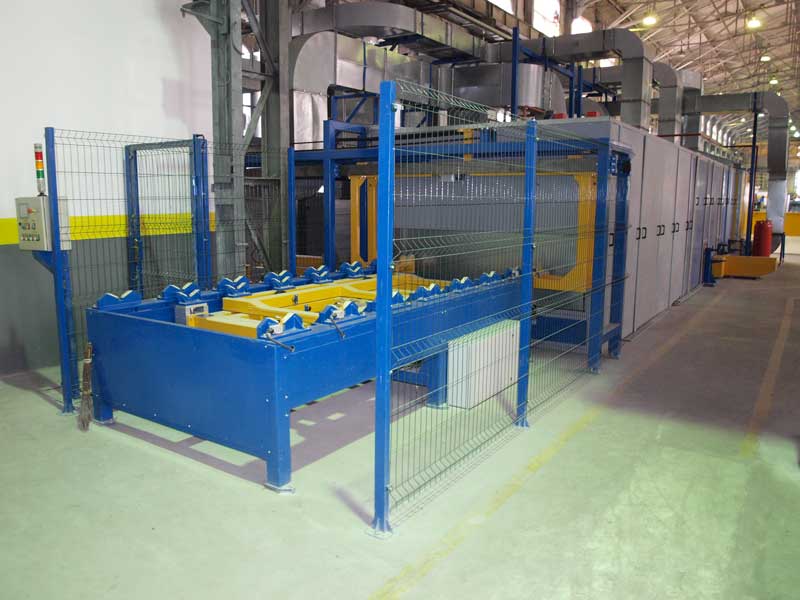

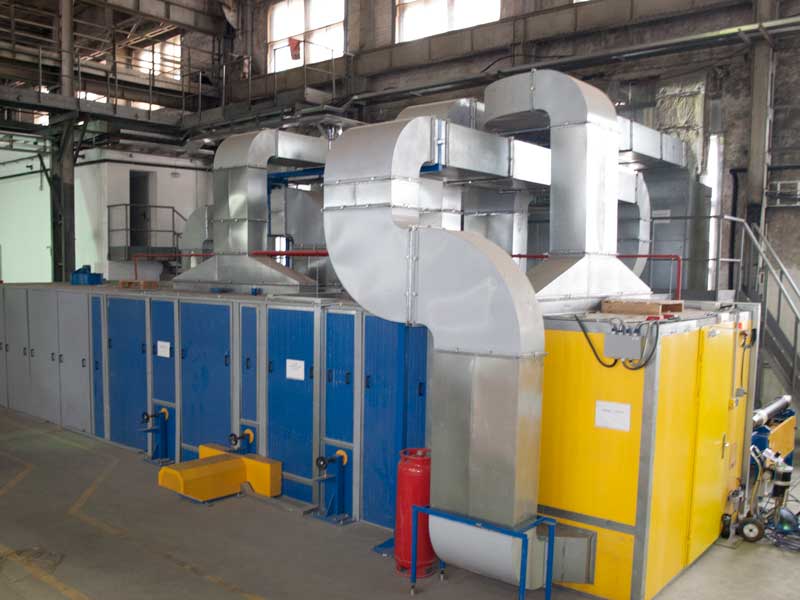

Railway axles coating line
The line is intended for functional or protective/decorative coating of railway axles
Specifications:
|
1. |
Overall dimensions of the item: |
max |
min |
|
length, mm |
2500 |
2100 |
|
|
diameter, mm |
250 |
130 |
|
|
weight, kg |
500 |
300 |
|
|
2. |
Output, railway axles per hour |
3 |
|
|
3. |
Coating thickness, μm |
100…300 |
|
|
4. |
Line operating cycle, min |
10…20 |
|
|
5. |
Air pressure in pneumatic circuit, MPA |
0,6 |
|
|
6. |
Compressed air consumption, m3/h |
2 |
|
|
7. |
Total power, KW |
329 |
|
|
8. |
Overall dimensions of the line, mm: |
18607x59354708 |
|
|
9. |
Weight, kg |
19350 |
|
