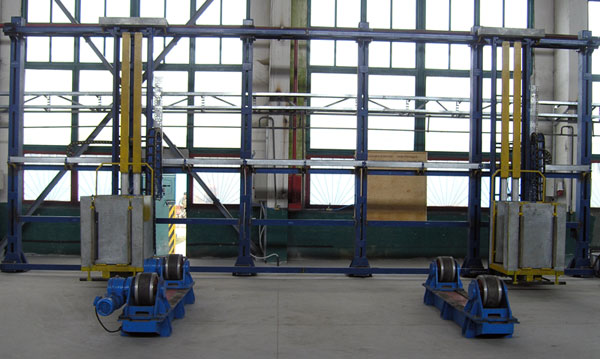

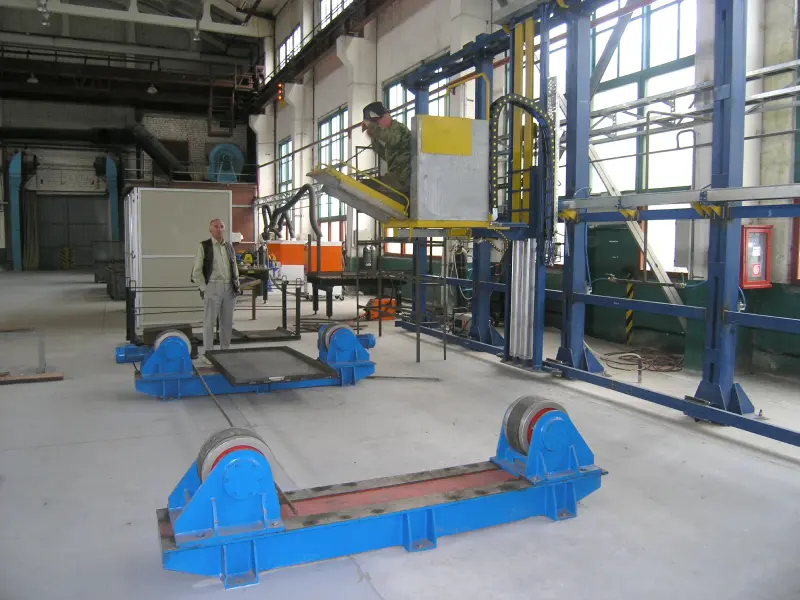

The stand is designed for welding of the tank elements.
The stand represents a set of equipment providing installation and fixation of the elements on the tank for its following welding.
Specifications:
| 1. | Overall dimensions of the item to be assembled, mm | 2410х2872 |
| 2. | Tank elements fixation mechanism | mechanical |
| 3. | Horizontal travel of the bogie basket (moving out), mm | 800 |
| 4. | Mechanized bogie, quantity, pieces | 2 |
| Basket travel height, mm | 360…3360 | |
| Carrying capacity, kg | 150 | |
| Recommended air pressure, MPa | 0,6 … 0,8 | |
| Air consumption (max) for travel, l/min | 1200 | |
| Horizontal travel mechanism | pneumatic | |
| Vertical travel mechanism | pneumatic | |
| 5. | Compressed air consumption, m3/min | 1,5 |
| 6. | Installed capacity, kW | 2,2 |
| 7. | Overall dimensions, mm | 10400х5223х4859 |
| 8. | Workpiece weight, kg | 5900 |
